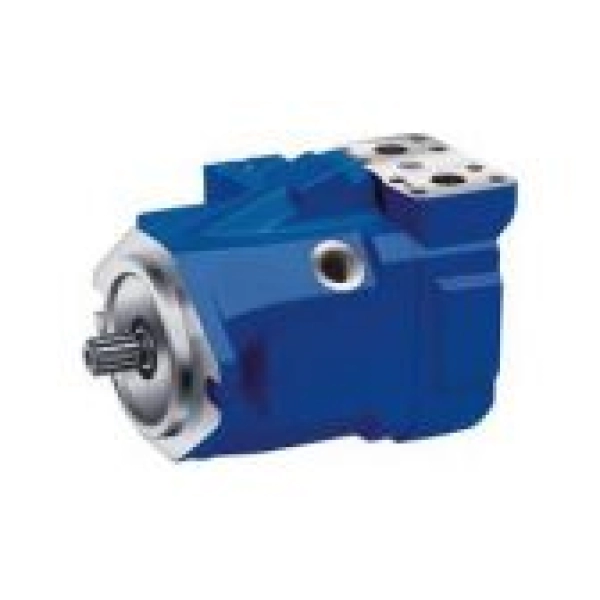

Аксиально-поршневой мотор A10VM

60,000.00

10 в наличии

10 в наличии

Описание

Технические характеристики

  • Двигатель среднего давления с двухточечным управлением
  • Размер 28 … 85
  • Номинальное давление 280 бар
  • Максимальное давление 350 бар
  • Открытый и закрытый контур
Размер 28 45 63 85
водоизмещение g max cm³ 28 45 62 87
g min cm³ 8 12 16 22
Номинальное давление nom бар 280 280 280 280
Максимальное давление max бар 350 350 350 350
Максимальная скорость  1) При V g max nom оборотов в минуту 4700 4000 3300 3100
При V g min max оборотов в минуту 5400 +4600 3900 3560
Входной поток При V g max  и n nom V nom л / мин 131,6 180 205 270
крутящий момент При V g max  и p nom M Nm 125 200 276 387
Вес (приблизительно) м кг 14 18 26 34

Заказной код

Артикул Наименование
R902444471 A A10V M 10 DG /52W-PKC64N000-S1975
R910983832 A A10V M 22 DFR1/52W1-PSC68N000 -SO483
R910983825 A A10V M 28 DFR1/52W1-VSC68N000 -S1378
R910983838 A A10V M 28 DG /52W1-PSC95N000
R910996778 A A10V M 28 DG /52W1-VRC60N000
R902420018 A A10V M 28 DG /52W1-VRC60N000
R902406022 A A10V M 28 DG /52W1-VRC61N000
R902411878 A A10V M 28 DG /52W1-VRC64N000
R902409950 A A10V M 28 DG /52W1-VRC64N000 -S1046
R902406131 A A10V M 28 DG /52W1-VRC64N000 -S1047
R902430413 A A10V M 28 DG /52W1-VRC66N000
R902403882 A A10V M 28 DG /52W1-VRC66N000 -S1103
R902407428 A A10V M 28 DG /52W1-VSC60N000
R910994730 A A10V M 28 EZ1 /52W1-PRC60N000
R910988851 A A10V M 28 EZ1 /52W1-PRC95N000
R910983834 A A10V M 28 EZ1 /52W1-PSC95N000
R902433280 A A10V M 28 EZ1 /52W1-VRC66N000
R902406535 A A10V M 28 EZ1 /52W1-VSC60N000 -S1047
R902410633 A A10V M 28 EZ1/52W1-VRC66N000D -SO952
R902406536 A A10V M 28 EZ1/52W1-VSC60N000D -S1047
R910998398 A A10V M 28 EZ2 /52W1-PRC60N000
R910991132 A A10V M 28 EZ2 /52W1-PRC60N000 -SO701
R910983837 A A10V M 28 EZ2 /52W1-PSC95N000
R902435436 A A10V M 28 EZ2 /52W1-VRC60N000
R902405958 A A10V M 28 EZ2 /52W1-VRC60N000 -S1119
R902424976 A A10V M 28 EZ2 /52W1-VRC60N000 -S1549
R902562346 A A10V M 28 EZ2 /52W1-VRC60N000P-S1119
R902402263 A A10V M 28 EZ2 /52W1-VRC68N000
R902400225 A A10V M 28 HZ /52W1-PRC95N000
R910987434 A A10V M 28 HZ /52W1-PSC95N000
R902400050 A A10V M 28 HZ /52W1-PSC95N000 -S1047
R902500291 A A10V M 28 HZ /52W1-VRC60N000
R902534870 A A10V M 28 HZ /52W1-VRC60N000
R902438662 A A10V M 28 HZ /52W1-VRC60N000 -S1048
R902400221 A A10V M 28 HZ /52W1-VRC66N000
R902404811 A A10V M 28 HZ /52W1-VRC66N000 -S1091
R902400267 A A10V M 28 HZ /52W1-VRC66N000 -SO952
R902403664 A A10V M 28 HZ /52W1-VRC66N000D -SO952
R902434149 A A10V M 28 HZ /52W1-VRC66N007 -S1064
R902410757 A A10V M 28 HZ /52W1-VSC60N000
R902400411 A A10V M 28 HZ /52W1-VSC60N000 -S1047
R902410588 A A10V M 45 DFR1/52WX-VSC95N0*UNGUEL***
R910966173 A A10V M 45 DG /52W1-PRC66N000 -SO286
R910985949 A A10V M 45 DG /52W1-PRC95N000
R910966896 A A10V M 45 DG /52W1-PRC95N000 -SO286
R902424688 A A10V M 45 DG /52W1-PUC60N000
R910979365 A A10V M 45 DG /52W1-PUC66N000
R910979267 A A10V M 45 DG /52W1-PUC66N000 -SO407
R902400043 A A10V M 45 DG /52W1-PUC66N000 -SO643
R902400098 A A10V M 45 DG /52W1-PUC95N000
R910979363 A A10V M 45 DG /52W1-PUC95N000 -SO935
R902544103 A A10V M 45 DG /52W1-VRC10N000
R902546108 A A10V M 45 DG /52W1-VRC11N000
R902425897 A A10V M 45 DG /52W1-VRC60N000
R902427638 A A10V M 45 DG /52W1-VRC61N000
R902400122 A A10V M 45 DG /52W1-VRC64N000
R902506688 A A10V M 45 DG /52W1-VRC64N000
R902409587 A A10V M 45 DG /52W1-VRC64N000 -S1167
R902409327 A A10V M 45 DG /52W1-VRC64N000 -SO481
R902401007 A A10V M 45 DG /52W1-VRC64N000 -SO607
R910986253 A A10V M 45 DG /52W1-VRC64N000 -SO873
R902400121 A A10V M 45 DG /52W1-VRC66N000
R902400415 A A10V M 45 DG /52W1-VRC66N000D
R902400035 A A10V M 45 DG /52W1-VRC68B020
R902400188 A A10V M 45 DG /52W1-VRC68B025
R902400083 A A10V M 45 DG /52W1-VSC95N000
R902400051 A A10V M 45 DG /52W1-VUC64N000 -SO873
R902413383 A A10V M 45 DG /52W1-VUC66N000 -S1207
R902413384 A A10V M 45 DG /52W1-VUC95N000 -S1207
R910994806 A A10V M 45 DG /52W1-VWC61N000
R902400146 A A10V M 45 DG /52W1-VWC64N000
R902436258 A A10V M 45 DG /52W1-VWC64N000 -S1854
R902412653 A A10V M 45 DG /52W1-VWC64N000 -SO481
R902400126 A A10V M 45 DG /52W1-VWC66N000 -SO407
R902400200 A A10V M 45 DG /52W1-VWC95N000
R902544105 A A10V M 45 DG /52W2-VRC10N000
R902546550 A A10V M 45 DG /52W2-VRC11N000
R902416346 A A10V M 45 DG /52W2-VRC60N000
R902401331 A A10V M 45 DG /52W2-VRC61N000
R902400212 A A10V M 45 DG /52W2-VRC64N000
R902412262 A A10V M 45 DG /52W2-VRC95N000
R902403337 A A10V M 45 DG /52W2-VSC95N000
R902489575 A A10V M 45 DG /52W2-VWC10N000
R902401221 A A10V M 45 DG /52W2-VWC60N000
R902400414 A A10V M 45 DG /52W2-VWC64N000
R902430387 A A10V M 45 DG /52W2-VWC66N000
R902400022 A A10V M 45 EZ1 /52W1-PSC95N000
R902400010 A A10V M 45 EZ1 /52W1-PUC95N000
R902488558 A A10V M 45 EZ1 /52W1-VRC10N007
R910993532 A A10V M 45 EZ1 /52W1-VRC60N000
R910994441 A A10V M 45 EZ1 /52W1-VRC60N007
R902402959 A A10V M 45 EZ1 /52W1-VRC60N007 -S1037
R902410052 A A10V M 45 EZ1 /52W1-VRC60N007 -S1065
R902403421 A A10V M 45 EZ1 /52W1-VRC60N007 -S1065
R902401099 A A10V M 45 EZ1 /52W1-VRC64N000
R902412229 A A10V M 45 EZ1 /52W1-VRC95N000
R902417346 A A10V M 45 EZ1 /52W1-VSC60N000
R902400199 A A10V M 45 EZ1 /52W1-VSC60N000 -SO779
R902410298 A A10V M 45 EZ1 /52W1-VSC95N000 -S1173
R902409576 A A10V M 45 EZ1 /52W1-VUC60N000
R902401402 A A10V M 45 EZ1 /52W1-VUC60N000DH
R910999835 A A10V M 45 EZ1 /52W1-VWC60N000
R902500113 A A10V M 45 EZ1 /52W1-VWC60N00D
R902409586 A A10V M 45 EZ1 /52W2-VRC10N00
R902409303 A A10V M 45 EZ1 /52W2-VRC60N000
R910994592 A A10V M 45 EZ1 /52W2-VRC60N000
R902430475 A A10V M 45 EZ1 /52W2-VRC60N000 -S1050
R902425040 A A10V M 45 EZ1 /52W2-VRC60N007
R902420175 A A10V M 45 EZ1 /52W2-VRC66N000
R902403743 A A10V M 45 EZ1 /52W2-VUC60N000
R910993550 A A10V M 45 EZ1 /52W2-VWC60N000
R902405993 A A10V M 45 EZ2 /52W1-PUC60N000 -S1123
R902435175 A A10V M 45 EZ2 /52W1-VRC10N000
R902428432 A A10V M 45 EZ2 /52W1-VRC10N000D
R902547925 A A10V M 45 EZ2 /52W1-VRC10N007P
R902416443 A A10V M 45 EZ2 /52W1-VRC60N000
R902429620 A A10V M 45 EZ2 /52W1-VRC60N000 -SO607
R902433399 A A10V M 45 EZ2 /52W1-VSC60N000
R910994110 A A10V M 45 EZ2 /52W2-VRC60N000
R902428985 A A10V M 45 EZ6 /52W1-VRC10N00
R902438685 A A10V M 45 EZ6 /52W1-VRC10N007
R902454334 A A10V M 45 EZ6 /52W1-VRC10N007 -S1064
R902454451 A A10V M 45 EZ6 /52W1-VRC10N007 -SO942
R992000859 A A10V M 45 EZ6 /52W1-VRC10N007 -SO942
R902443535 A A10V M 45 EZ6 /52W1-VRC16N000
R902425700 A A10V M 45 EZ6 /52W1-VRC60N000 -SO763
R902433148 A A10V M 45 EZ6 /52W1-VRC60N007
R902427406 A A10V M 45 EZ6 /52W1-VRC95N000 -SO763
R902432014 A A10V M 45 EZ6 /52W1-VSC60N000 -SO752
R902425673 A A10V M 45 EZ6 /52W1-VSC95N000 -S1173
R902428839 A A10V M 45 EZ6 /52W1-VSC95N000 -S1674
R902443195 A A10V M 45 EZ6 /52W1-VSC95N000 -S1674
R902420320 A A10V M 45 EZ6 /52W1-VUC60N000
R902435694 A A10V M 45 EZ6 /52W1-VWC10N00
R902416962 A A10V M 45 EZ6 /52W1-VWC66N000
R902411153 A A10V M 45 EZ6 /52W2-VRC10N00
R902454658 A A10V M 45 EZ6 /52W2-VRC10N007 -SO942
R992000941 A A10V M 45 EZ6 /52W2-VRC10N007 -SO942
R902477990 A A10V M 45 EZ6 /52W2-VRC10N007 -SO942
R902561962 A A10V M 45 EZ6 /52W2-VRC10N007P -SO942
R902416430 A A10V M 45 EZ6 /52W2-VRC11N000
R902434887 A A10V M 45 EZ7 /52W1-VRC60N000 -SO607
R902410328 A A10V M 45 EZ7 /52W1-VSC68N000 -SO607
R902511265 A A10V M 45 HZ /52W1-VPC10N000
R902428015 A A10V M 45 HZ /52W1-VRC10N000
R902400477 A A10V M 45 HZ /52W1-VRC60N000
R902406026 A A10V M 45 HZ /52W1-VRC61N000
R902400201 A A10V M 45 HZ /52W1-VRC64N000
R902427122 A A10V M 45 HZ /52W1-VRC64N007 -S1621
R902400481 A A10V M 45 HZ /52W1-VRC66N000
R902400241 A A10V M 45 HZ /52W1-VSC60N000
R902500316 A A10V M 45 HZ /52W1-VUC60N000
R902400168 A A10V M 45 HZ /52W1-VWC60N000
R902401401 A A10V M 45 HZ /52W1-VWC60N007
R902429544 A A10V M 45 HZ /52W1-VWC64N000
R902400186 A A10V M 45 HZ /52W1-VWC66N000
R902401465 A A10V M 45 HZ /52W1-VWC66N007
R902400228 A A10V M 45 HZ /52W1-VWC66N007 -S1064
R902450203 A A10V M 45 HZ /52W1-VWC66N007 -SO97
R902406680 A A10V M 45 HZ /52W1-VWC66N007D
R902404144 A A10V M 45 HZ /52W2-VRC10N00
R902505324 A A10V M 45 HZ /52W2-VRC66N007 *GO2*
R902427233 A A10V M 45 HZ /52W2-VRC66N007 -S1622
R902400324 A A10V M 45 HZ /52W2-VWC60N000
R902450121 A A10V M 45 HZ /52W2-VRC66N007D -S1622
R902430341 A A10V M 45 HZ6 /52W1-VRC64N007 -S1621
R902437108 A A10V M 45 HZ6 /52W1-VRC64N007 -S2189
R902438609 A A10V M 45 HZ6 /52W1-VRC64N007 -S2189
R902417671 A A10V M 45 HZ6 /52W2-VRC10N000
R910996131 A A10V M 63 DFR1/52W1-VWC60N000 -SO677
R902434111 A A10V M 63 DG /52W1-VRC60N000
R902544107 A A10V M 63 DG /52W2-VRC10N000
R902546425 A A10V M 63 DG /52W2-VWC10N000
R902447112 A A10V M 63 EZ1 /52W1-VRC60N007
R902500305 A A10V M 63 EZ1 /52W1-VRC60N007D
R902418617 A A10V M 63 EZ1 /52W1-VWC16N000
R902407725 A A10V M 63 EZ1 /52W1-VWC60N000
R902451723 A A10V M 63 EZ1 /52W1-VWC60N000 -S1299
R902409835 A A10V M 63 EZ1 /52W1-VWC60N007
R902403902 A A10V M 63 EZ1 /52W1-VWC60N007 -S1064
R902454403 A A10V M 63 EZ1 /52W1-VWC60N007 -SO942
R902449556 A A10V M 63 EZ1 /52W2-VWC60N007
R902415809 A A10V M 63 EZ1/52W1-VRC60N007D -S1299
R902419333 A A10V M 63 EZ1/52W1-VWC60N007D -S1299
R902502805 A A10V M 63 EZ2 /52W1-VWC60N000
R902434241 A A10V M 63 EZ6 /52W1-VRC10N000
R902433298 A A10V M 63 EZ6 /52W1-VRC10N007
R902428984 A A10V M 63 EZ6 /52W1-VWC10N000
R902420253 A A10V M 63 EZ6 /52W1-VWC10N007
R902437716 A A10V M 63 EZ6 /52W1-VWC10N007 -S1890
R902456134 A A10V M 63 EZ6 /52W1-VWC10N007 -S2292
R902454452 A A10V M 63 EZ6 /52W1-VWC10N007 -SO942
R992000860 A A10V M 63 EZ6 /52W1-VWC10N007 -SO942
R902477988 A A10V M 63 EZ6 /52W1-VWC10N007 -SO942
R902435183 A A10V M 63 EZ6 /52W1-VWC16N000 -SO752
R910998241 A A10V M 63 EZ6 /52W1-VWC60N000
R992001066 A A10V M 63 EZ6 /52W1-VWC60N000
R902412662 A A10V M 63 EZ6 /52W1-VWC60N007
R902425360 A A10V M 63 EZ6 /52W1-VWC60N007 -S1299
R902450664 A A10V M 63 EZ6 /52W1-VWC60N007 -S2093
R902409579 A A10V M 63 EZ6 /52W1-VWC60N007 -SO942
R992000683 A A10V M 63 EZ6 /52W1-VWC60N007 -SO942
R902428116 A A10V M 63 EZ6 /52W1-VWC66N007 -S1651
R902547567 A A10V M 63 EZ7 /52W1-VRC10N007P
R902455519 A A10V M 63 EZ7 /52W1-VWC60N000
R902517104 A A10V M 63 HZ /52W1-VKC10N000
R902500298 A A10V M 63 HZ /52W1-VRC60N000
R902429540 A A10V M 63 HZ /52W1-VWC60N000
R902434346 A A10V M 63 HZ /52W2-VRC60N000
R902417670 A A10V M 63 HZ6 /52W1-VWC10N000
R902433174 A A10V M 85 DG /52W2-VRC10N000
R902532872 A A10V M 85 DG /52W2-VRC10N000 -S1854
R902554650 A A10V M 85 DG /52W2-VWC10N000
R902445391 A A10V M 85 EZ1 /52W2-VWC60N007
R902415213 A A10V M 85 EZ1/52W1-VUC10N007D -S1299
R902423531 A A10V M 85 EZ6 /52W1-VRC10N007
R902542025 A A10V M 85 EZ6 /52W1-VRC10N007H
R902413225 A A10V M 85 EZ6 /52W1-VUC10N007
R910984622 A AA10V M 45 EZ1 /52W1-PRC60N000 -SO687
R910984870 A AA10V M 45 EZ1 /52W2-VRC10N000 -SO687
R910984571 A AA10V M 45 EZ2 /52W1-PUC60N000 -SO687
R910985038 A AA10V M 45 EZ2 /52W1-PUC60N000 -SO699
R910983829 AL A10V M 22 DFR1/52W1-PSC68N000 -SO483
R902403439 AL A10V M 28 DFR1/52W1-VSC68N000 -S1378
R902500236 AL A10V M 28 DG /52W1-VRC64N000
R902500201 AL A10V M 28 DG /52W1-VRC64N000 -S1046
R902500177 AL A10V M 28 HZ /52W1-PSC95N000
R902500215 AL A10V M 28 HZ /52W1-VSC60N000
R902410584 AL A10V M 45 DFR1/52WX-VSC95N0*UNGUEL***
R910979661 AL A10V M 45 DG /52W1-PUC66N000
R902412539 AL A10V M 45 DG /52W1-PUC66N000 -SO407
R910979662 AL A10V M 45 DG /52W1-PUC95N000
R902401044 AL A10V M 45 DG /52W1-VRC64N00 -SO481
R902409588 AL A10V M 45 DG /52W1-VRC64N000 -S1167
R902401045 AL A10V M 45 DG /52W1-VRC68B020
R902401159 AL A10V M 45 DG /52W1-VUC66N000 -S1207
R902401158 AL A10V M 45 DG /52W1-VUC95N000 -S1207
R902401373 AL A10V M 45 DG /52W1-VWC64N00
R902401141 AL A10V M 45 DG /52W1-VWC64N00 -SO481
R902488557 AL A10V M 45 EZ1 /52W1-VRC10N007
R902410050 AL A10V M 45 EZ1 /52W1-VRC60N007 -S1065
R902411639 AL A10V M 45 EZ1 /52W1-VSC95N000 -S1173
R902406604 AL A10V M 45 EZ1 /52W2-VUC60N000
R902444316 AL A10V M 45 EZ6 /52W1-VRC10N007
R902454333 AL A10V M 45 EZ6 /52W1-VRC10N007 -S1064
R902456944 AL A10V M 45 EZ6 /52W1-VRC10N007 -S2310
R902456945 AL A10V M 45 EZ6 /52W1-VRC10N007 -S2310
R902456771 AL A10V M 45 EZ6 /52W1-VRC10N007 -SO942
R902561278 AL A10V M 45 EZ6 /52W1-VRC10N007P -SO942
R902425699 AL A10V M 45 EZ6 /52W1-VRC60N000 -SO763
R902484163 AL A10V M 45 EZ6 /52W1-VRC66N007P -S3350
R902427407 AL A10V M 45 EZ6 /52W1-VRC95N000 -SO763
R992000736 AL A10V M 45 EZ6 /52W1-VRC95N000 -SO763
R902432012 AL A10V M 45 EZ6 /52W1-VSC60N000 -SO752
R902425674 AL A10V M 45 EZ6 /52W1-VSC95N000 -S1173
R902443194 AL A10V M 45 EZ6 /52W1-VSC95N000 -S1674
R902428838 AL A10V M 45 EZ6 /52W1-VSC95N000 -S1674
R902454657 AL A10V M 45 EZ6 /52W2-VRC10N007 -SO942
R902478692 AL A10V M 45 EZ7 /52W1-VWC16N000 -S2632
R902470392 AL A10V M 45 EZ7 /52W1-VWC16N000D -S2632
R902475177 AL A10V M 45 EZ7 /52W1-VWC16N000F -S2632
R902433109 AL A10V M 45 HZ /52W1-VRC60N000
R902460088 AL A10V M 45 HZ /52W1-VRC66N007 -S1622
R902474599 AL A10V M 45 HZ /52W1-VRC66N007 -S3720
R902427232 AL A10V M 45 HZ /52W2-VRC66N007 -S1622
R902450120 AL A10V M 45 HZ /52W2-VRC66N007D -S1622
R902488553 AL A10V M 45 HZ /52W1-VRC66N007F -S3921
R902505080 AL A10V M 45 HZ /52W1-VRC66N007F -S3921
R902431893 AL A10V M 45 HZ6 /52W1-VRC64N007 -S1621
R902438608 AL A10V M 45 HZ6 /52W1-VRC64N007 -S2189
R902437150 AL A10V M 45 HZ6 /52W1-VRC64N007 -S2189
R902406372 AL A10V M 45 HZ6 /52W1-VRC64N007 ES2189
R902401655 AL A10V M 63 DFR1/52W1-VWC60N000 -SO677
R902415810 AL A10V M 63 EZ1 /52W1-VRC60N007D -S1299
R902438310 AL A10V M 63 EZ1 /52W1-VWC60N007 -S1064
R902419334 AL A10V M 63 EZ1 /52W1-VWC60N007D -S1299
R902444315 AL A10V M 63 EZ6 /52W1-VWC10N007 -S1890
R902548565 AL A10V M 63 EZ6 /52W1-VWC10N007P
R902490097 AL A10V M 63 EZ6 /52W1-VWC60N000P
R902424940 AL A10V M 63 EZ6 /52W1-VWC60N007
R902425359 AL A10V M 63 EZ6 /52W1-VWC60N007 -S1299
R902450663 AL A10V M 63 EZ6 /52W1-VWC60N007 -S2093
R902514782 AL A10V M 63 EZ6 /52W1-VWC60N007P -S1464
R902428117 AL A10V M 63 EZ6 /52W1-VWC66N007 -S1651
R902406103 AL A10V M 63 HZ /52W1-VRC60N000
R902406116 AL A10V M 63 HZ /52W1-VWC60N000
R902415211 AL A10V M 85 EZ1 /52W-VUC10N007D -S1299
R902558584 AL A10V M 85 EZ1 /52W1-VWC60N000P
R902539724 AL A10V M 85 EZ7 /52W1-VRC10N007P
R902431314 ALAA10V M 45 EZ1 /52W1-PRC60N000 -SO687
R902417599 G A10V M 63 OV /52W1-VWC10N000 -SO548

Отзывы

0 отзывов
0
0
0
0
0

Отзывов пока нет.

Будьте первым, кто оставил отзыв на “Аксиально-поршневой мотор A10VM”

Ваш адрес email не будет опубликован. Обязательные поля помечены *
