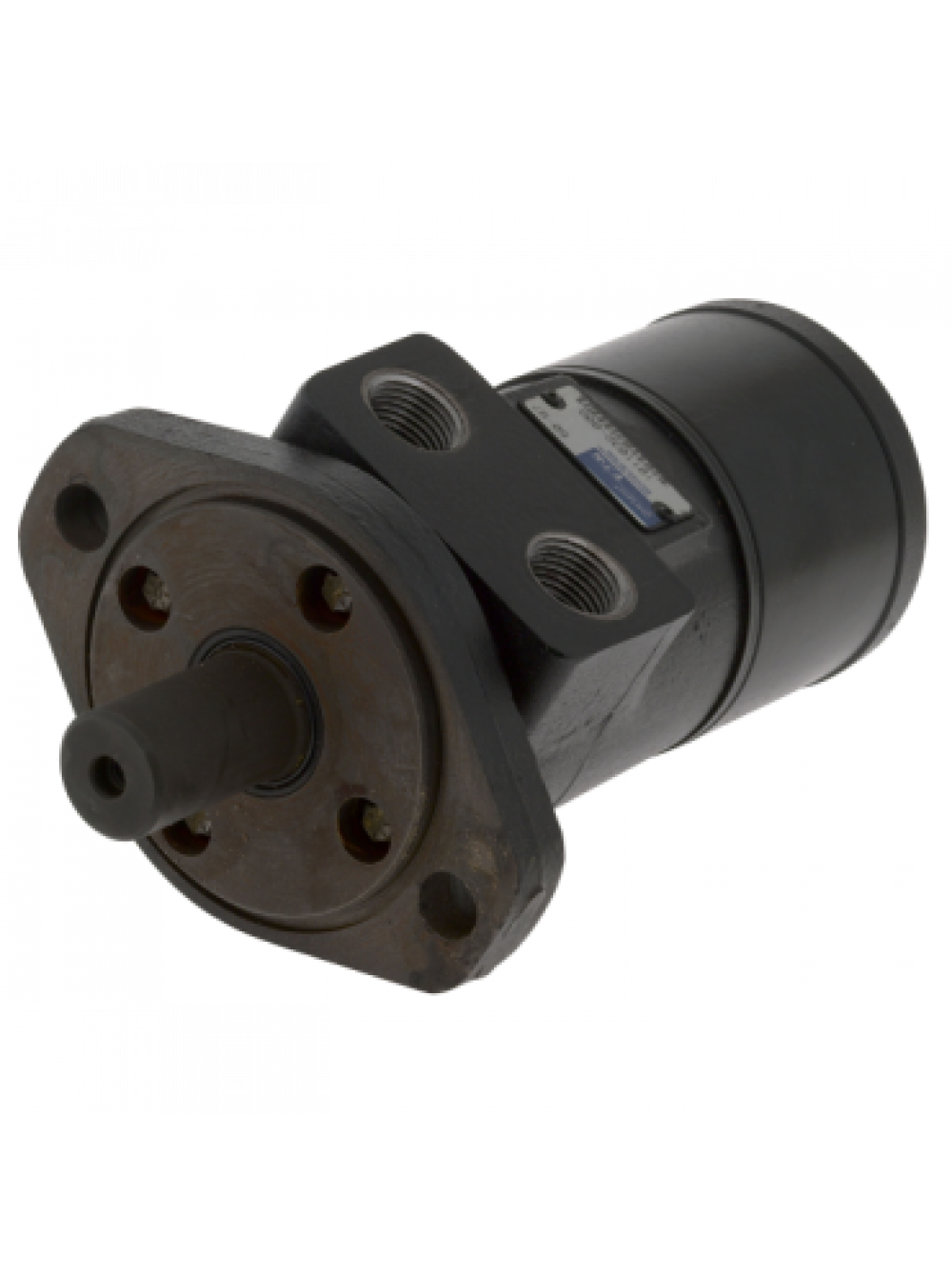

Гидравлический мотор Char-Lynn 101-1663-009

Гидравлический мотор Char-Lynn / Danfoss 101-1663-009

1011663009

MH0097AA24AF0200000000000AA00J

101-1663-007 1011663007

101-1663-008 1011663008

Drain Port Dimension

G 1/4

Front bearing type

Journal bearing

Geometric displacement [cm3/r [in3/r]]

159 [9.7]

Hydraulic valve function

None

Main port dimension

G 1/2

Main port style

Sideport — aligned

Main port thread type

BSP

Model Code

MH0097AA24AF0200000000000AA00J

Motor Series

H Series

Motor size

160

Motor type

Standard

Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]

82.5 x 3.1, 106.4, 13.6 [3.25 x 0.12, 4.19, 0.54]

Mounting flange type

2 Bolt — A

Orbital gearwheel set

Standard

Orbital gearwheel set type

Gerotor

Paint information

Primer, Black, Low gloss

Rear bearing type

Journal bearing

SHAFT TYPE

Straight

Seal Kit

60540-000

Shaft Key

Square key, 8 x 30 mm

Shaft dimension

Dia. 25 mm, M8 x 1.25-6H thread in shaft end
