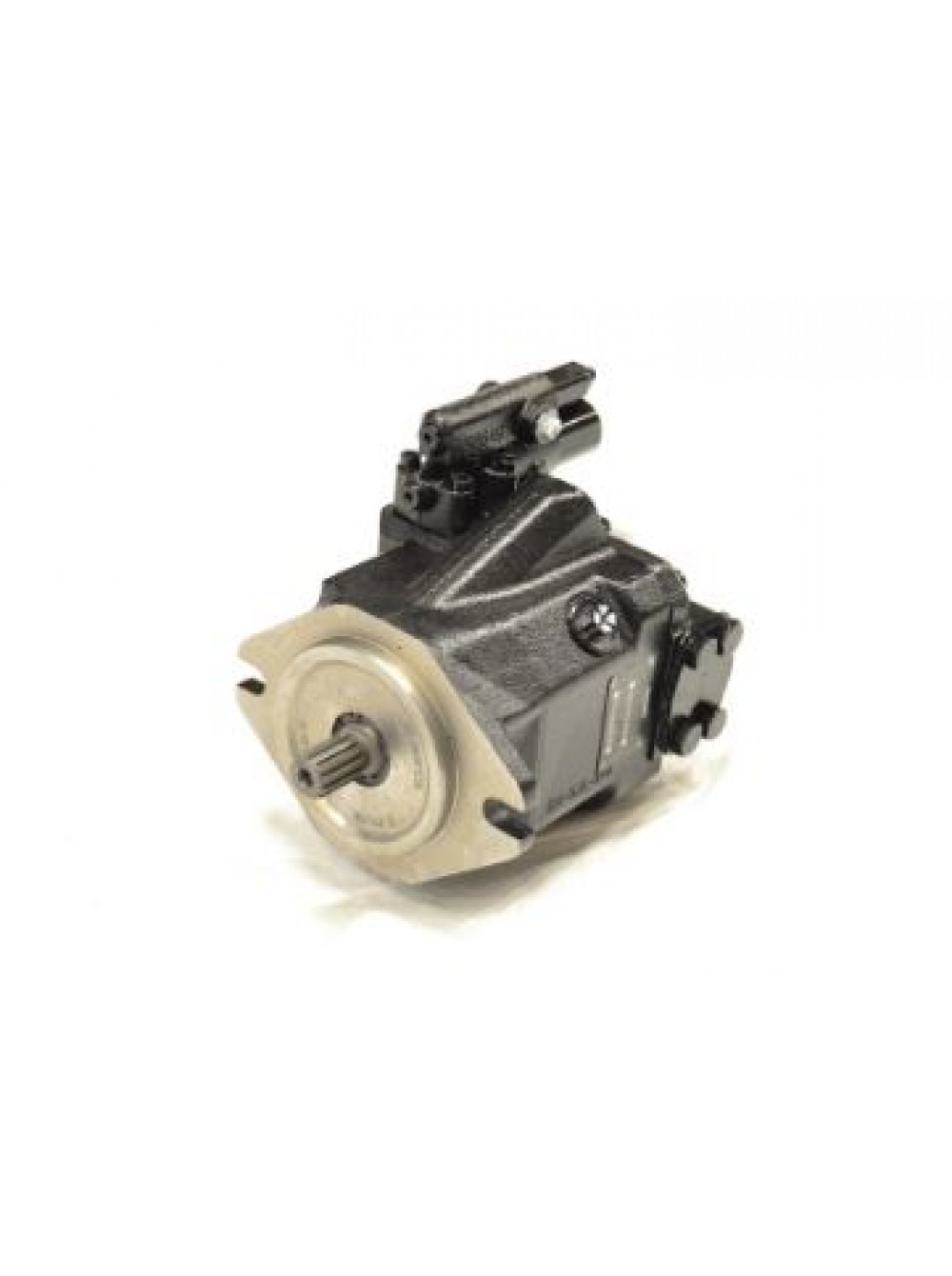

Гидравлический насос Bobcat 7150697

Гидравлический насос Bobcat 7150697

Casappa 65105122

Type of pump

plunger pump

Number of elements

1

Type of flange

type B

Center distance of mounting holes flange C1 (mm)

146

Total length of pump L1 (mm)

295

Neck diameter D2 (mm)

101.5

Type of shaft

type E

Distance from flange to end L2 (mm)

46

Diameter of shaft D3 (mm)

25.2

Number of splines

15

Thread type (on shaft) TA2

1/4 UNC

Direction of rotation

clockwise

Thread type of connections suction 1st element

M12

Center distance between mounting holes C-CO1a (mm)

42.9

Center distance between mounting holes C-CO2a (mm)

77.8

Thread type pressure side of 1st element TA-Pb

1 5/16 UNF

Flow control valve present

YES

Biggest Thread type valve TA3

7/16 UNF

Material of the housing

metal

Вес (кг): 26
