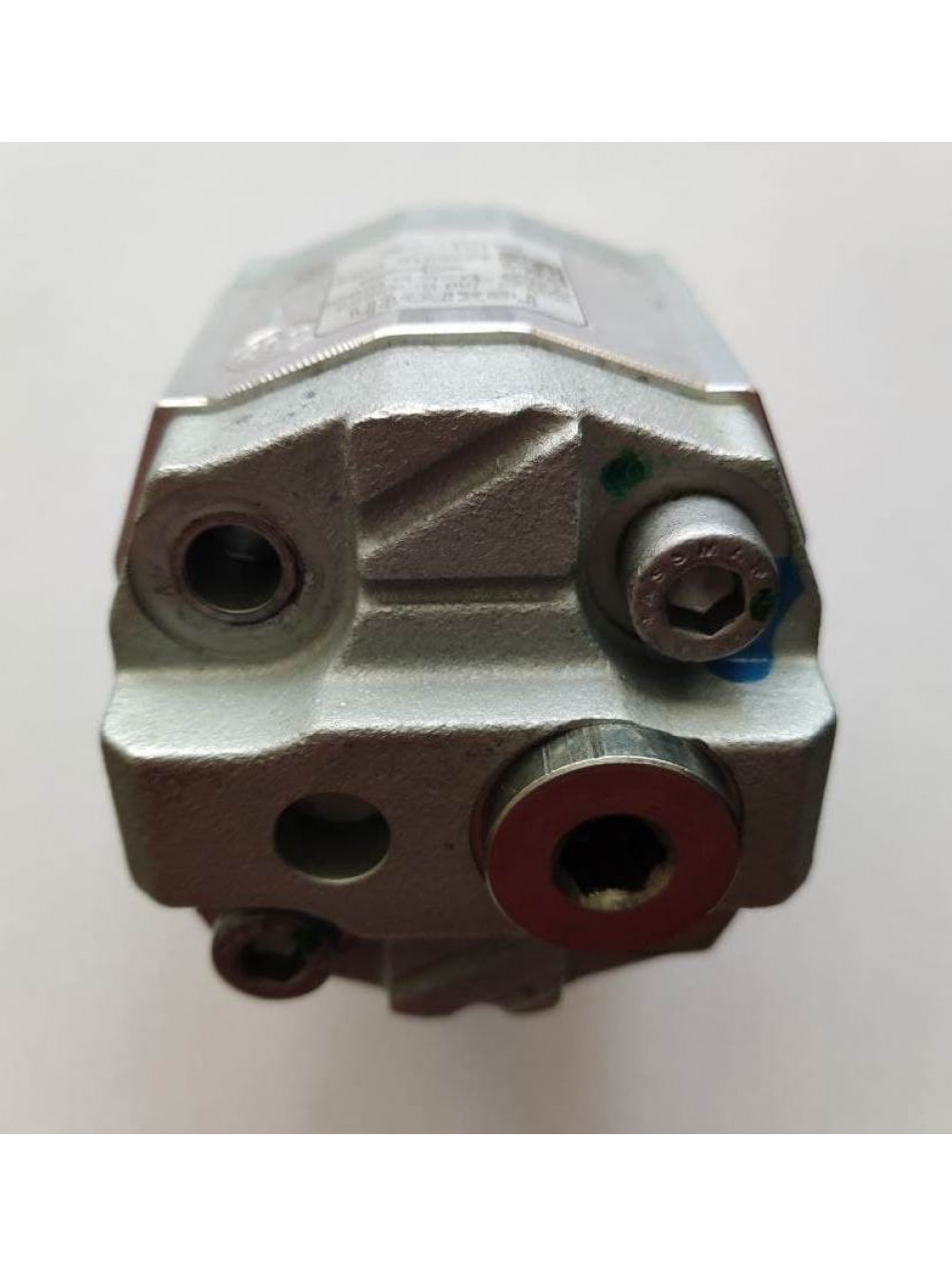

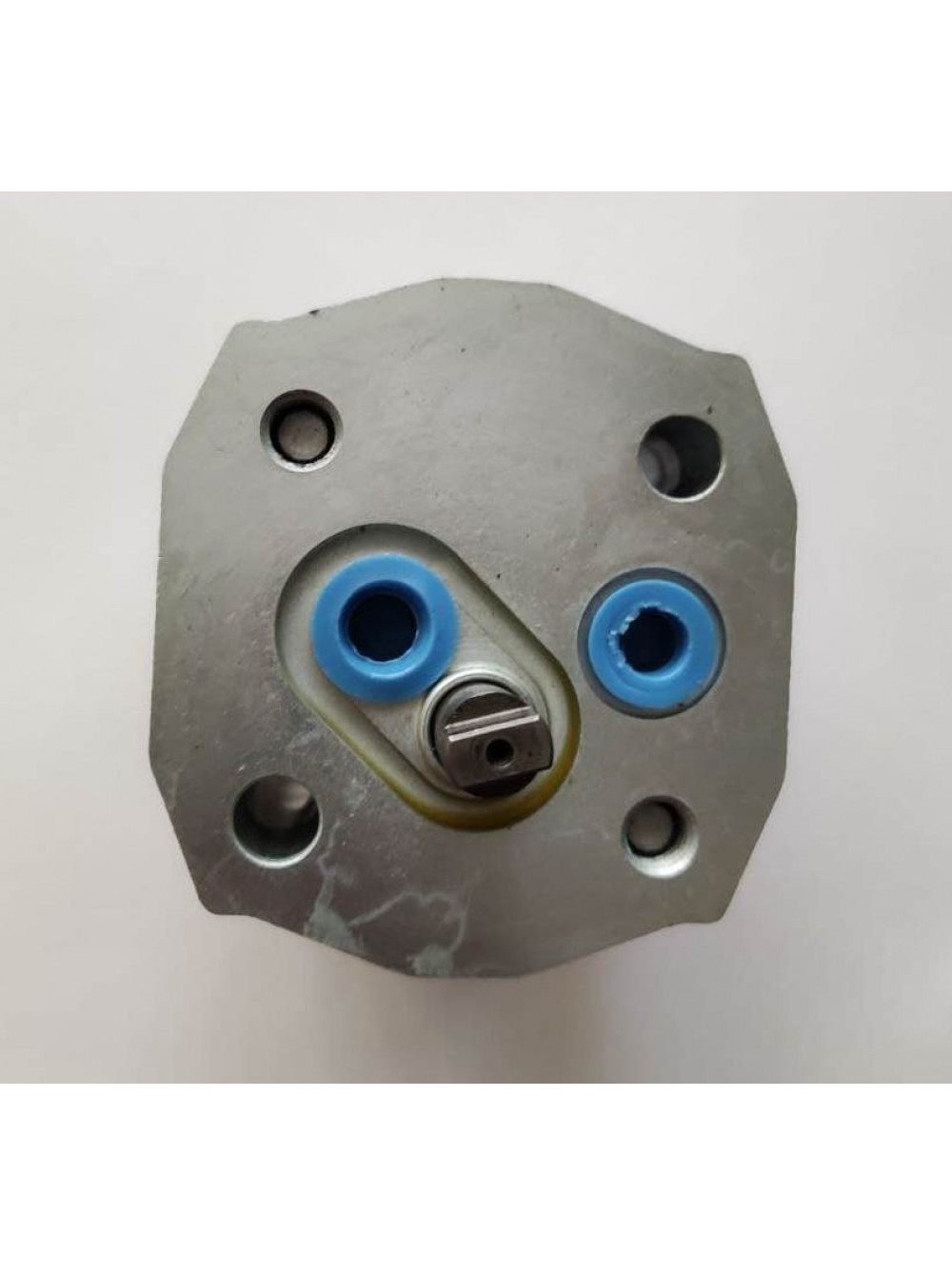

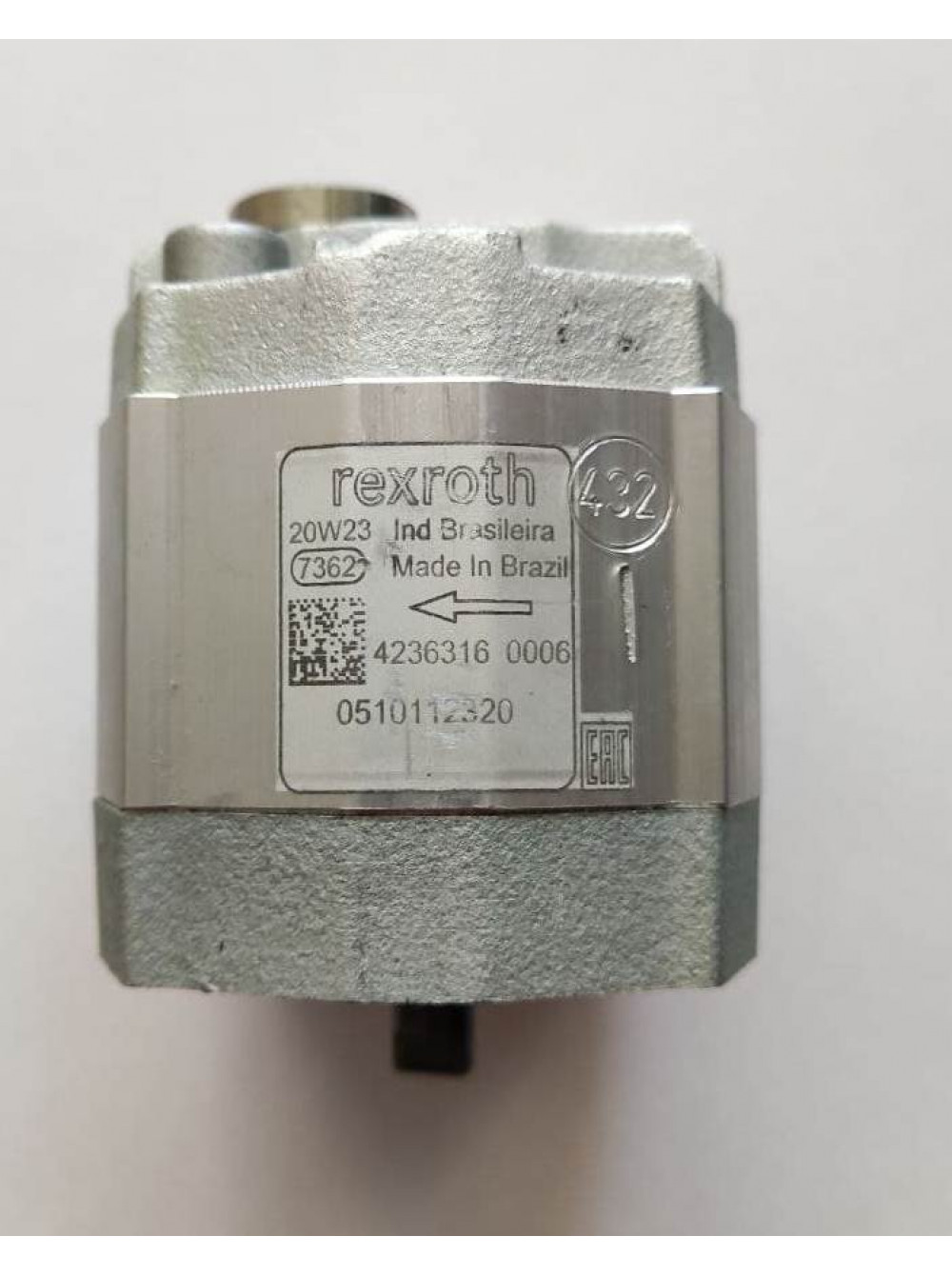

Гидравлический насос Bosch 1517222660

Гидравлический насос Bosch 1517222660

AZPB-10-3,0LNEXXMB

AZPB1030LNEXXMB

Замена партномера 0510112320

AZPB-32-3.2LNEXXMA-S0686

AZPB3232LNEXXMAS0686

Type of pump

gearpump

Number of elements

1

Type of flange

type C

Diameter of flange mounting holes D1 (mm)

9

Total length of pump L1 (mm)

95

Type of shaft

type B

Distance from flange to end L2 (mm)

18.5

Diameter of shaft D3 (mm)

10

Key (way) width W (mm)

5

Direction of rotation

counterclockwise

Position of suction port 1st element, only for pump type T POS-CO1

front

Type of connections suction port1st element, only for pump type T TY-COa

type F

Position of pressure 1st element, only for pump type T POS-CO2

front

Type of connections pressure 1st element, only for pump type T TY-COb

type F

Flow control valve present

NO

Material of the housing

aluminium

Вес (кг): 1,48
