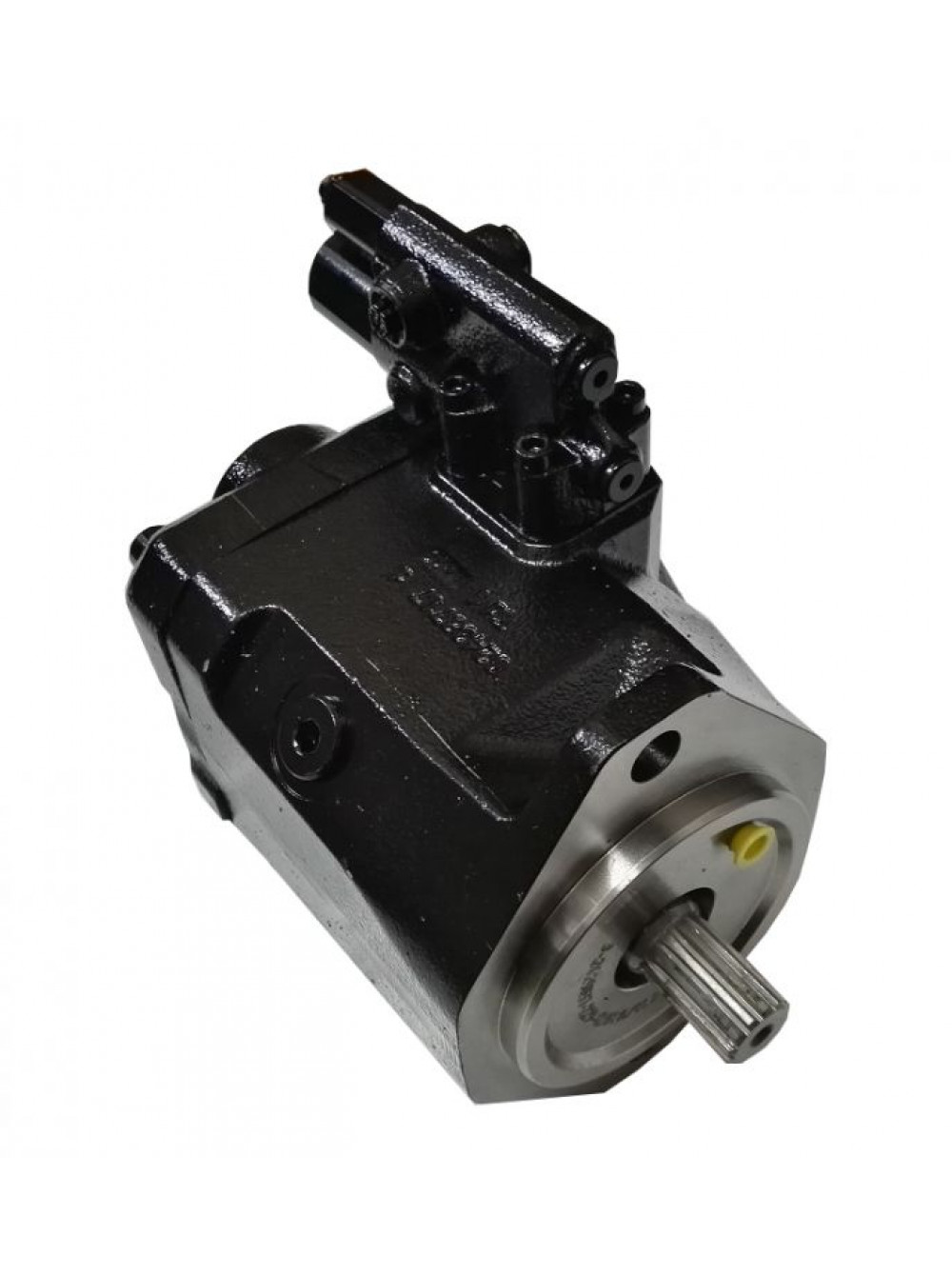

Гидравлический насос Case 394268A2

Гидравлический насос Case 394268A2

394268A1

Bosch Rexroth R902429741 R902536859

A10VN0 41 DFR1/52L-HRC40N00 -S1421

Type of pump

plunger pump

Number of elements

1

Type of flange

type A

Diameter of flange mounting holes D1 (mm)

14.2

Center distance of mounting holes flange C1 (mm)

146

Total length of pump L1 (mm)

246

Neck diameter D2 (mm)

101.5

Type of shaft

type D

Distance from flange to end L2 (mm)

41

Diameter of shaft D3 (mm)

21.8

Number of splines

13

Direction of rotation

counterclockwise

Thread type suction side of 1st element TA-Pa

M42

Thread type pressure side of 1st element TA-Pb

M33

Flow control valve present

YES

Biggest Thread type valve TA3

M12

Material of the housing

metal

Вес (кг): 15,5
