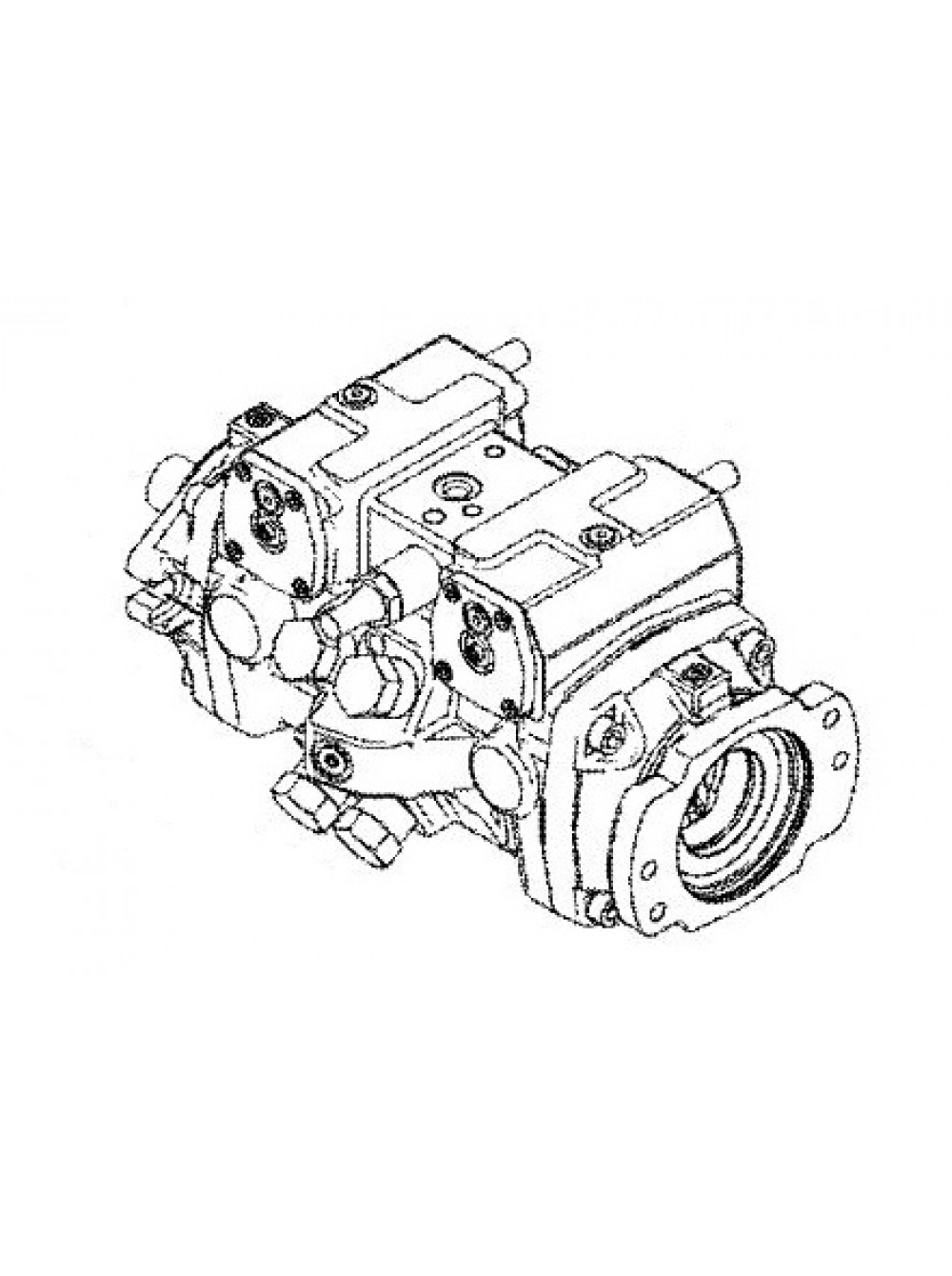

Гидравлический насос Caterpillar 228-9216

Гидравлический насос Caterpillar 228-9216

2289216

Reman Part :

10R-6041

Reman Rexroth Part:

R986120289

New Rexroth Part:

R986110186

307-3062 289-6340 398-7470 3073062 2896340 3987470

Type of pump

plunger pump

Number of elements

2

Type of flange

type B

Center distance of mounting holes C1 (mm)

146

Total length of pump L1 (mm)

443

Neck diameter D2 (mm)

101.6

Type of shaft

type E

Distance from flange to end L2 (mm)

56

Diameter of shaft D3 (mm)

31

Number of splines

14

Thread type (on shaft) TA2

7/16 UNC

Direction of rotation

clockwise

Thread type suction side of 1st element TA-Pa

1 1/16 UNF

Thread type pressure side of 1st element TA-Pb

1 1/16 UNF

Thread type suction side of 2nd element TA-Pc

1 1/16 UNF

Thread type pressure side of 2nd element TA-Pd

1 1/16 UNF

Flow control valve present

YES

Biggest Thread type valve TA3

9/16 UNF

Second Thread type valve TA4

7/16 UNF

Material of the housing

metal

Вес (кг): 64
