Гидравлический насос JCB 20/925588
111.00 ₽
Описание

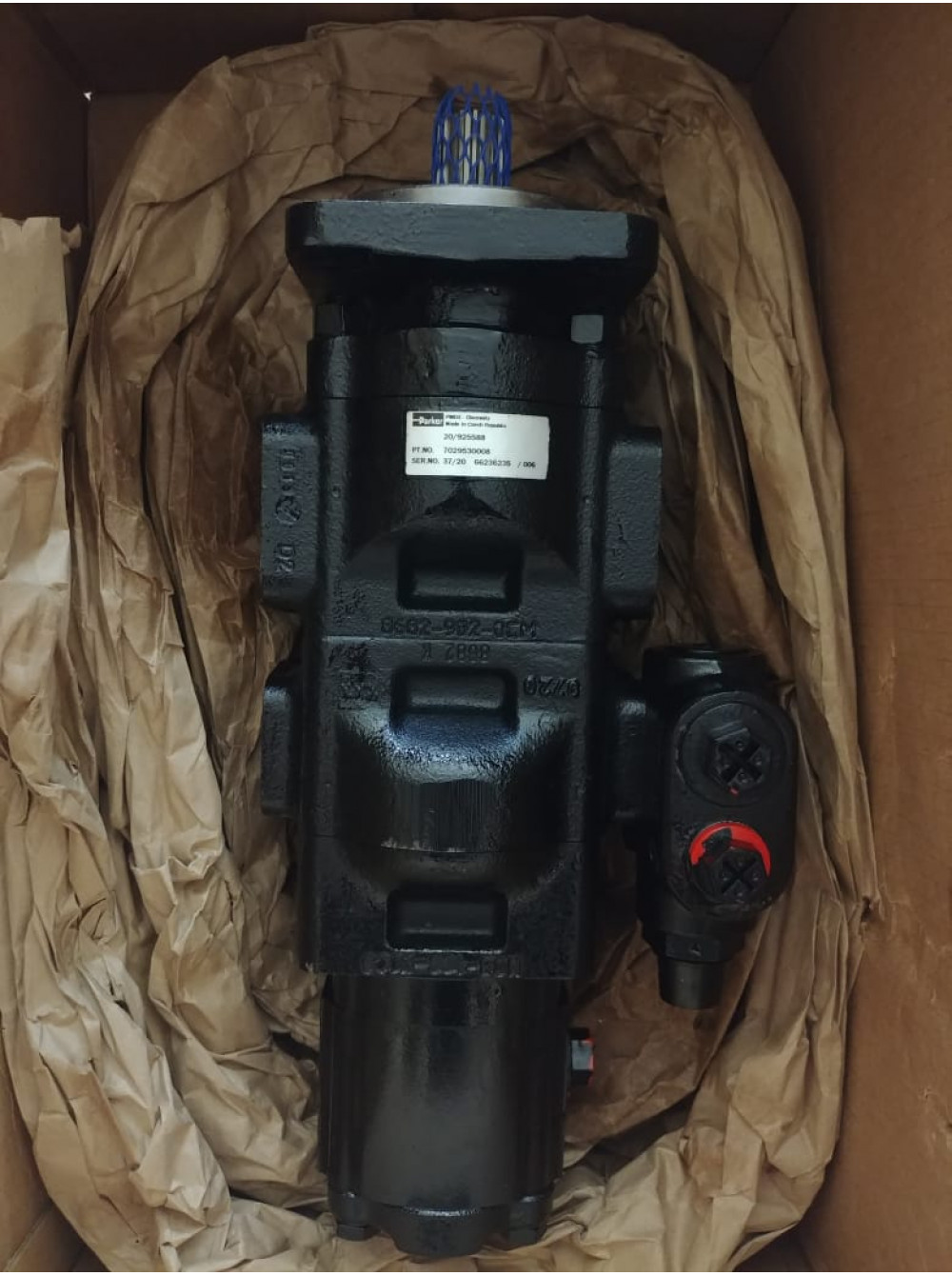

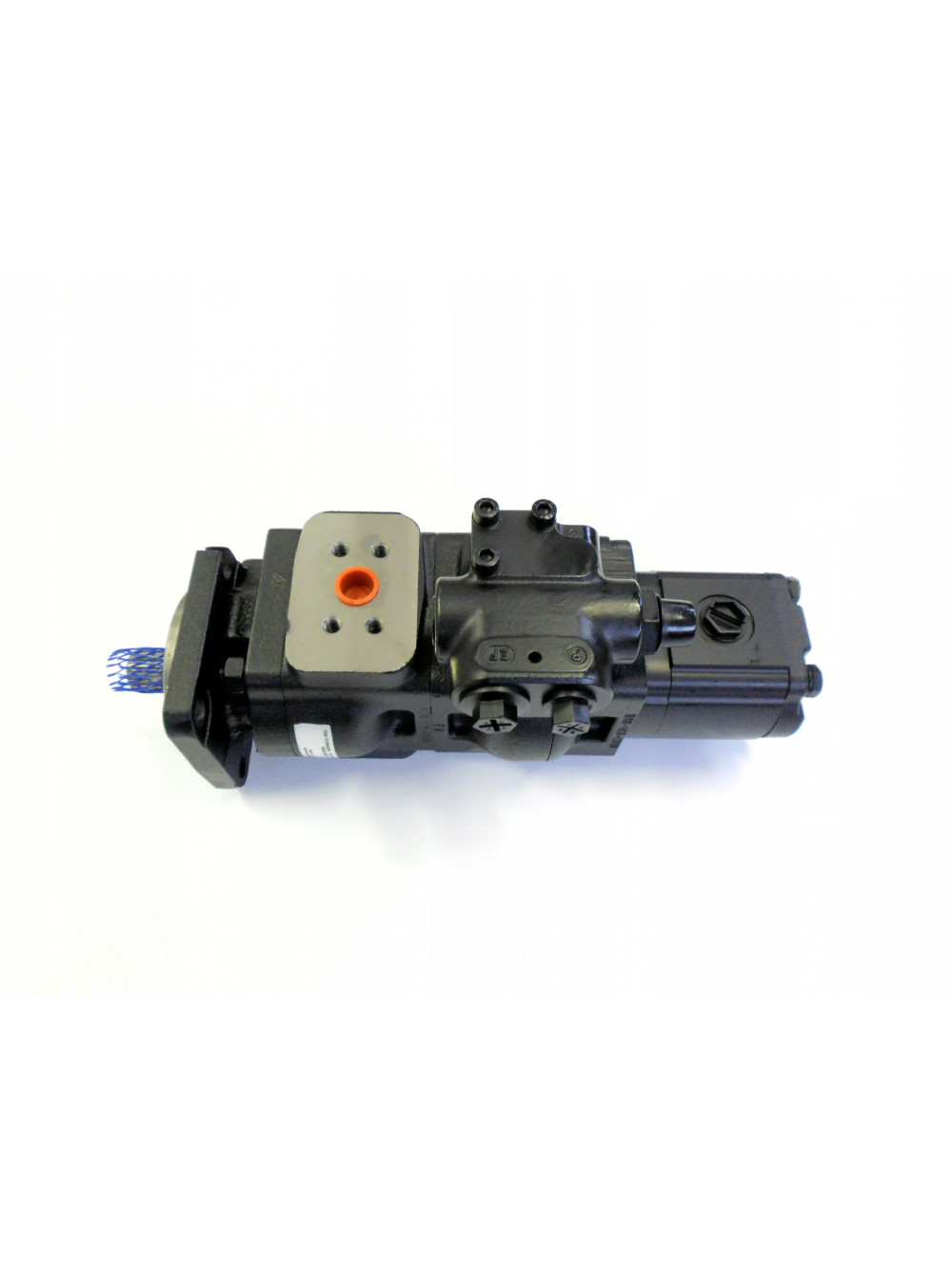

Гидравлический насос JCB 20/925588 Pump Main Hydrailic 3 Stage
Гидронасос JCB 20925588
JCB 20/918300,JCB 20/925355
20918300 20925355
Клапан — 7029530002
Parker Code : 7029530001, 7029530008
Type of pump
gearpump
Number of elements
3
Type of flange
type G
Diameter of flange mounting holes D1 (mm)
14.3
Center distance of mounting holes C1 (mm)
89.8
Total length of pump L1 (mm)
397
Neck diameter D2 (mm)
101.5
Type of shaft
type D
Distance from flange to end L2 (mm)
45
Diameter of shaft D3 (mm)
25
Number of splines
15
Direction of rotation
counter clockwise
Position of suction port 1st element, only for pump type T POS-CO1
side
Type of connections suction port1st element, only for pump type T TY-COa
type C
Thread type of connections suction 1st element
1/2 UNC
Center distance between mounting holes C-CO1a (mm)
42.9
Center distance between mounting holes C-CO2a (mm)
77.8
Position of pressure 1st element, only for pump type T POS-CO2
side
Type of connections pressure 1st element, only for pump type T TY-COb
type C
Thread type of connection pressure port 1st element TA-COb
3/8 UNC
Center distance between mounting holes C-CO1b (mm)
22.2
Center distance between mounting holes C-CO2b (mm)
47.6
Position of pressure port 2nd element, only for pump type T POS-CO4
side
Type of connections pressure port 2nd element, only for pump type T TY-COd
type E
Thread type pressure side of 2nd element TA-Pd
7/8 UNF
Flow control valve present
YES
Biggest Thread type valve TA3
7/8 UNF
Second Thread type valve TA4
3/4 UNF
Material of the housing
aluminium and metal
Parker 7029530001
Parker 7029530008
HPR43006
JCB TELESCOPE R1C403240194016Q33A/32+19+16/A
