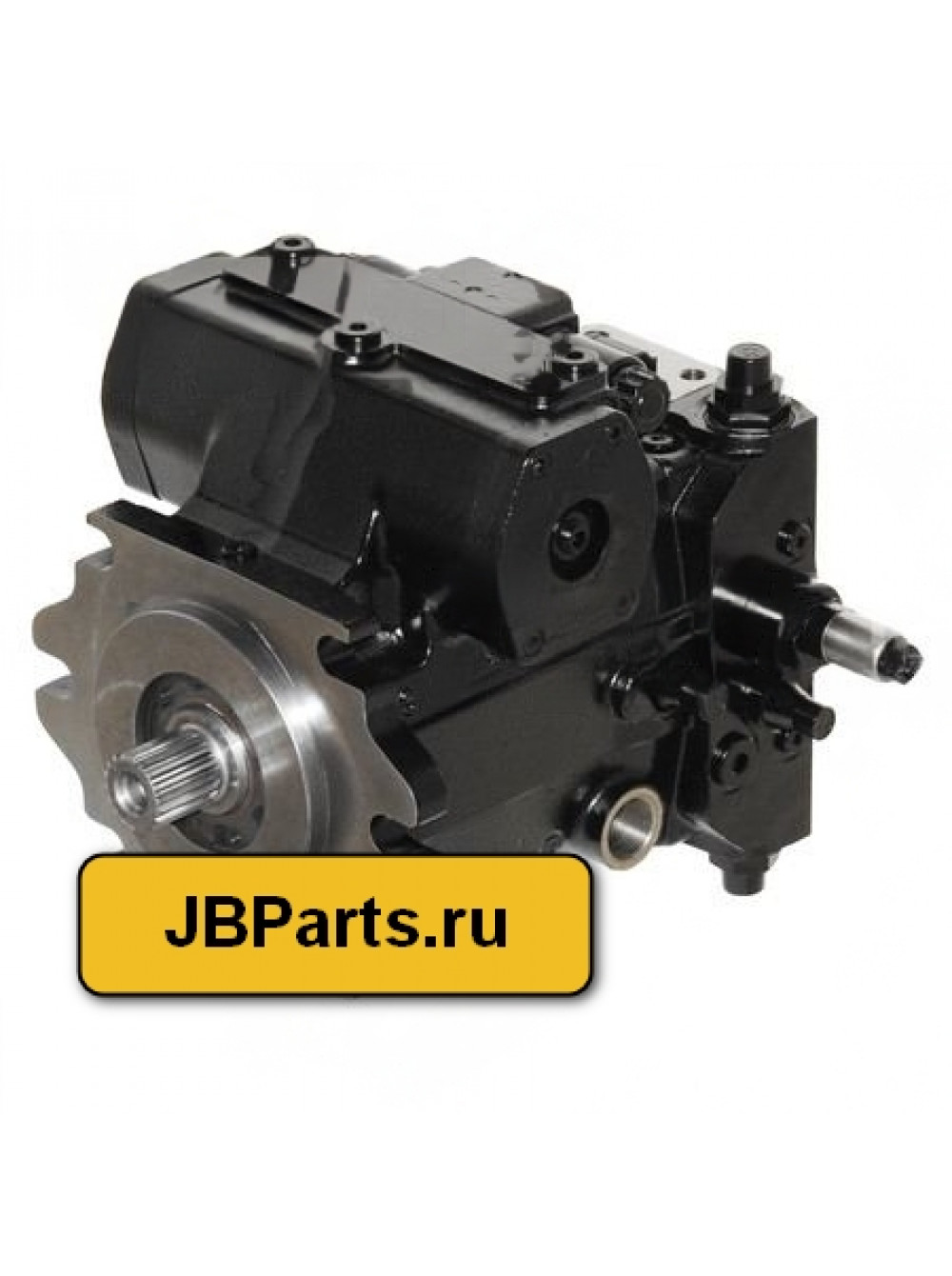

Гидравлический насос Liebherr 12202800

Гидравлический насос Liebherr 12202800

12202800A

Rexroth R902255712

A4VG125EZ2DX/32L-NZF02F001SP-S

R900734911 Соленоидный клапан

Type of pump

plunger pump

Number of elements

1

Type of flange

type M

Center distance of mounting holes C1 (mm)

228.6

Center distance of mounting holes C2 (mm)

161.6

Total length of pump L1 (mm)

383

Neck diameter D2 (mm)

152.4

Type of shaft

type E

Distance from flange to end L2 (mm)

55

Diameter of shaft D3 (mm)

38.5

Number of splines

18

Thread type (on shaft) TA2

M16

Direction of rotation

counterclockwise

Thread type suction side of 1st element TA-Pa

M48

Thread type of connection pressure port 1st element TA-COb

M14

Center distance between mounting holes C-CO1b (mm)

31.8

Center distance between mounting holes C-CO2b (mm)

66.7

Flow control valve present

YES

Material of the housing

metal
