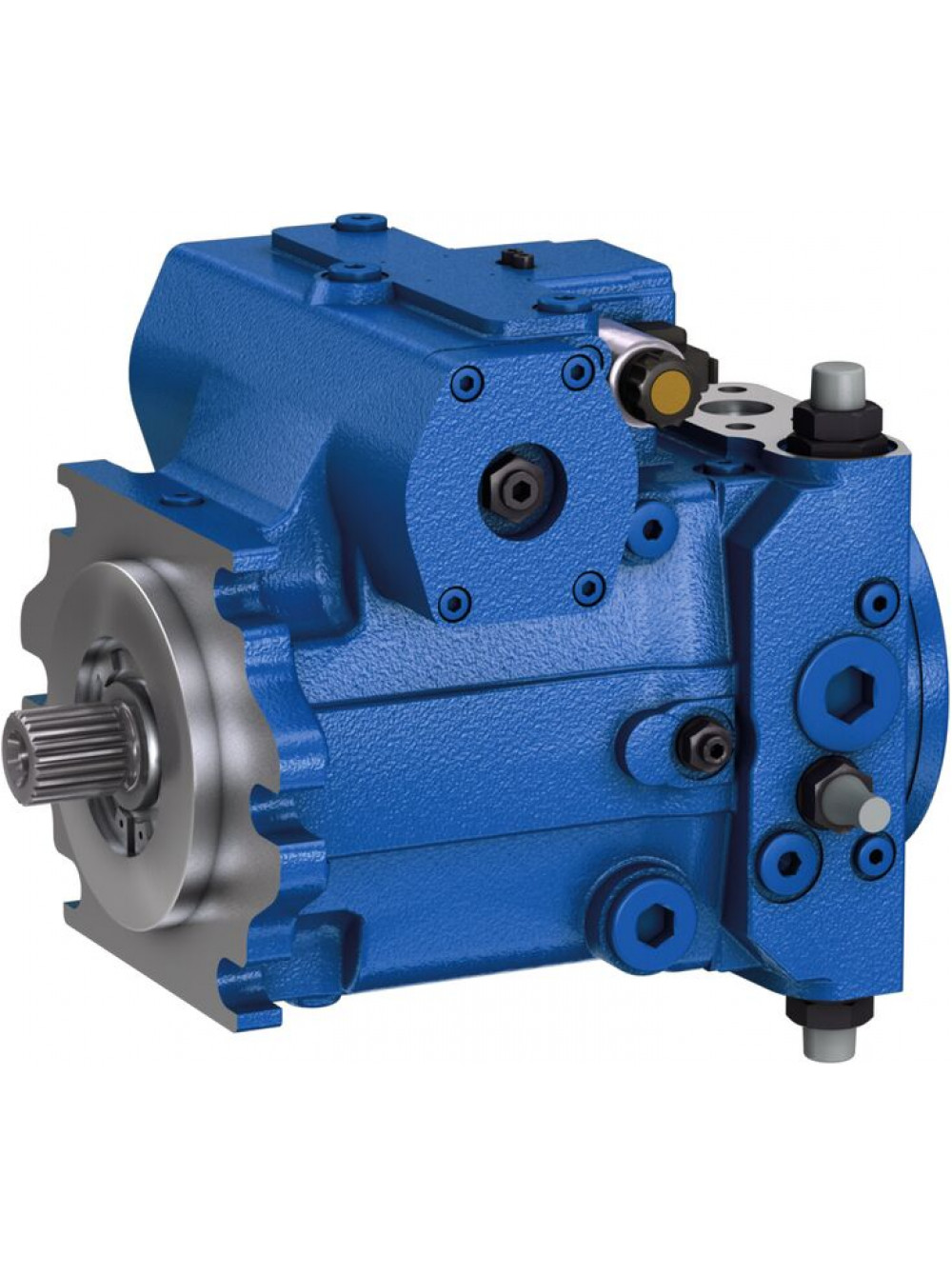

Гидравлический насос Merlo 043893

Гидравлический насос Merlo 043893 / IDE00348975

Rexroth MNR 2055261

A4VG71EZ1DX/32R-NZF10F-001SH-S

D-89275 Elchingen

Type of pump

plunger pump

Number of elements

1

Type of flange

type M

Center distance of mounting holes flange C1 (mm)

181

Center distance of mounting holes flange C2 (mm)

114.5

Total length of pump L1 (mm)

345

Neck diameter D2 (mm)

127

Type of shaft

type E

Distance from flange to end L2 (mm)

50

Diameter of shaft D3 (mm)

34.5

Number of splines

16

Thread type (on shaft) TA2

M12

Direction of rotation

clockwise

Thread type suction side of 1st element TA-Pa

M42

Thread type of connection pressure port 1st element TA-COb

M12

Center distance between mounting holes C-CO1b (mm)

27.8

Center distance between mounting holes C-CO2b (mm)

57.2

Flow control valve present

NO

Material of the housing

metal

Вес (кг): 55
