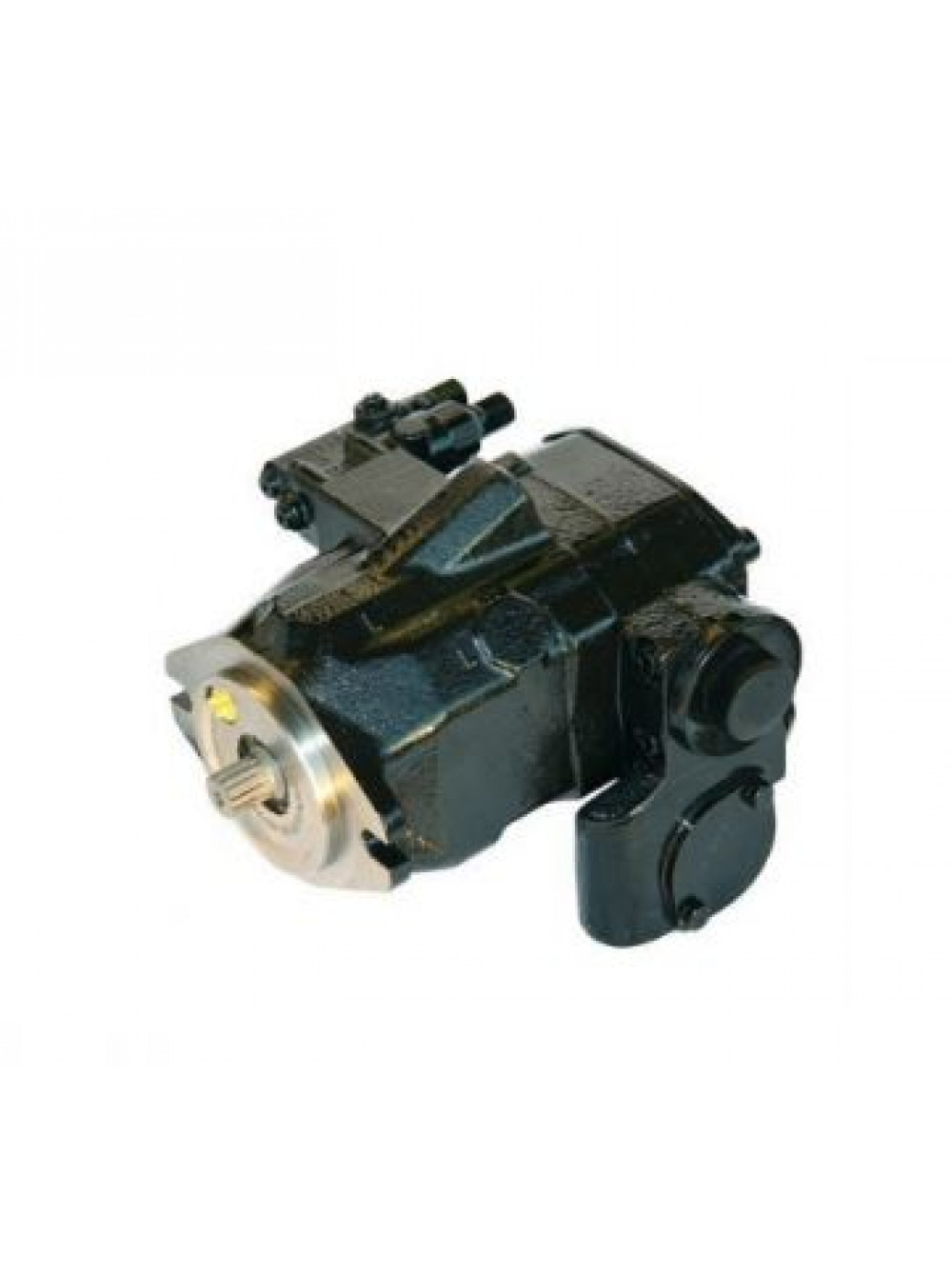

Гидравлический насос New Holland 84471388

Гидравлический насос New Holland 84471388

84164100

Rexroth A A10CO45DFR1/52R-VWC12H502D -S4277

R902538729

R902538730

R902493583

R902537841

R902537842

Type of pump

plunger pump

Number of elements

1

Type of flange

type B

Center distance of mounting holes C1 (mm)

146

Total length of pump L1 (mm)

273.5

Neck diameter D2 (mm)

101.6

Type of shaft

type D

Distance from flange to end L2 (mm)

30.7

Diameter of shaft D3 (mm)

21.8

Number of splines

13

Direction of rotation

clockwise

Thread type of connections suction 1st element

M8

Center distance between mounting holes C-CO1a (mm)

65

Thread type of connection pressure port 1st element TA-COb

M10

Center distance between mounting holes C-CO1b (mm)

26.2

Center distance between mounting holes C-CO2b (mm)

52.4

Flow control valve present

YES

Biggest Thread type valve TA3

7/16 UNF

Material of the housing

metal

Вес (кг): 27,6
