Гидромотор Danfoss 151B0401
111.00 ₽
Описание

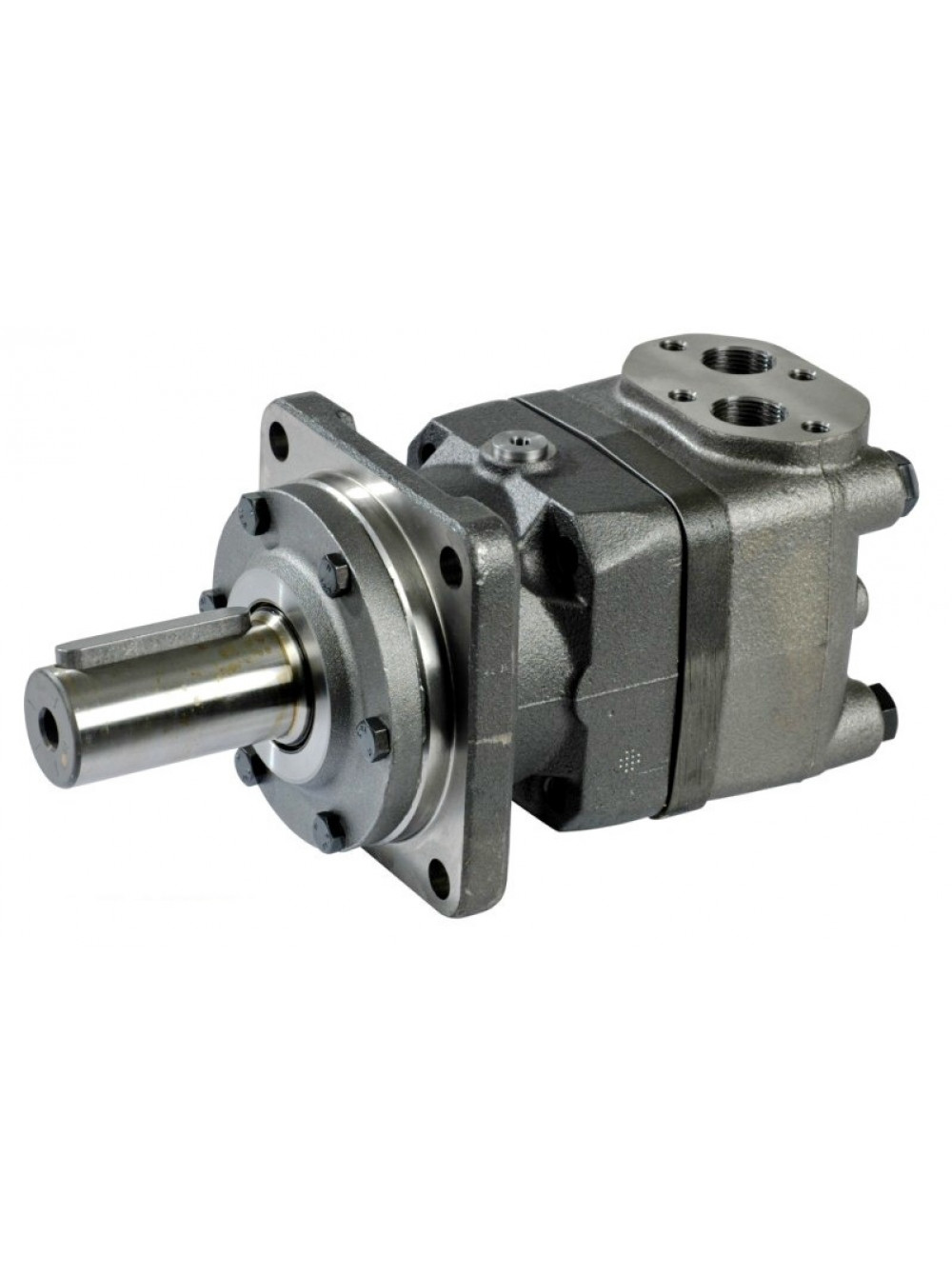

Гидромотор DANFOSS 151B0401
ОМТ 400 ОМТ400
| Mounting Flange | Standard – PD 125 mm BC 160 mm |
|---|---|
| Shaft Style | Cylindrical |
| Shaft Size | 40 mm M12 x 1.75 tap |
| Shaft Key | A12 x 8 x 70 mm (DIN 6885) |
| Port Style | Side port |
| Port Dimensions | G 3/4 |
| Drain Port | G 1/4 |
| Shaft Seal | NBR – Standard |
| Max Inlet Pressure (Bar) Cont | 210 |
| Max Speed (Rpm) Cont | 305 |
| Max Torque (Nm) Cont | 1080 |
| Front Bearing | Tapered roller bearing |
| Rear Bearing | Tapered roller bearing |
| Gear Wheel Set | Standard |
| Check Valve | Yes |
| Valve Function | None |
| Brake Release | None |
ОМТ 400 151В0204
OMT 400 11007565
OMT 400 11079284
OMT 400 11140224
OMT 400 11165365
OMT 400 151B0357
OMT 400 151B0364
OMT 400 151B0383
OMT 400 151B0401
