Гидромотор Eaton 112-1068-006
111.00 ₽
Описание

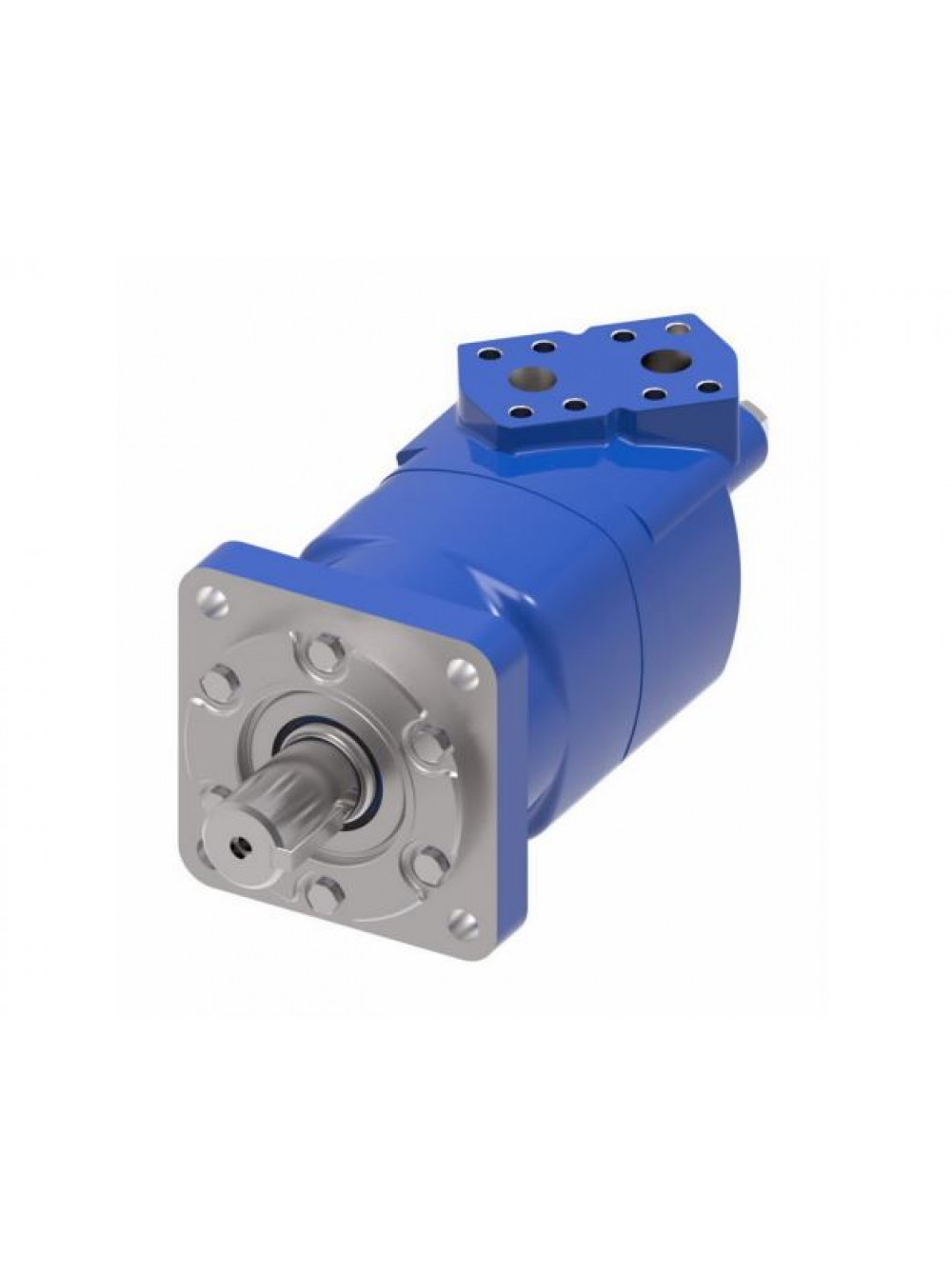

Гидромотор Eaton 112-1068-006
1121068006
M06300AB01AA02000000000000000F
6000 Series
| DISPLACEMENT | 491.4 CM3/R [29.99 IN3/R] |
| MOUNTING TYPE | STANDARD; (SAE CC); 4 BOLT; 127.0 [5.00] PILOT DIA. 14.35 [.565] DIA. HOLES ON 162.0 [6.38] DIA. BOLT CIRCLE |
| OUTPUT SHAFT | 38.10 [1.500] DIA. STRAIGHT SHAFT WITH .375-16 UNC-2B THREAD IN END; 9.52 [.375] SQ X 41.28 [1.625] STRAIGHT KEY |
| PORTS | 1.3125-12 UN-2B SAE O-RING PORTS — STAGGERED PORTS |
| CASE FLOW OPTIONS | .4375-20 UNF-2B SAE O-RING PORT WITH CHECK VALVE |
OEM
