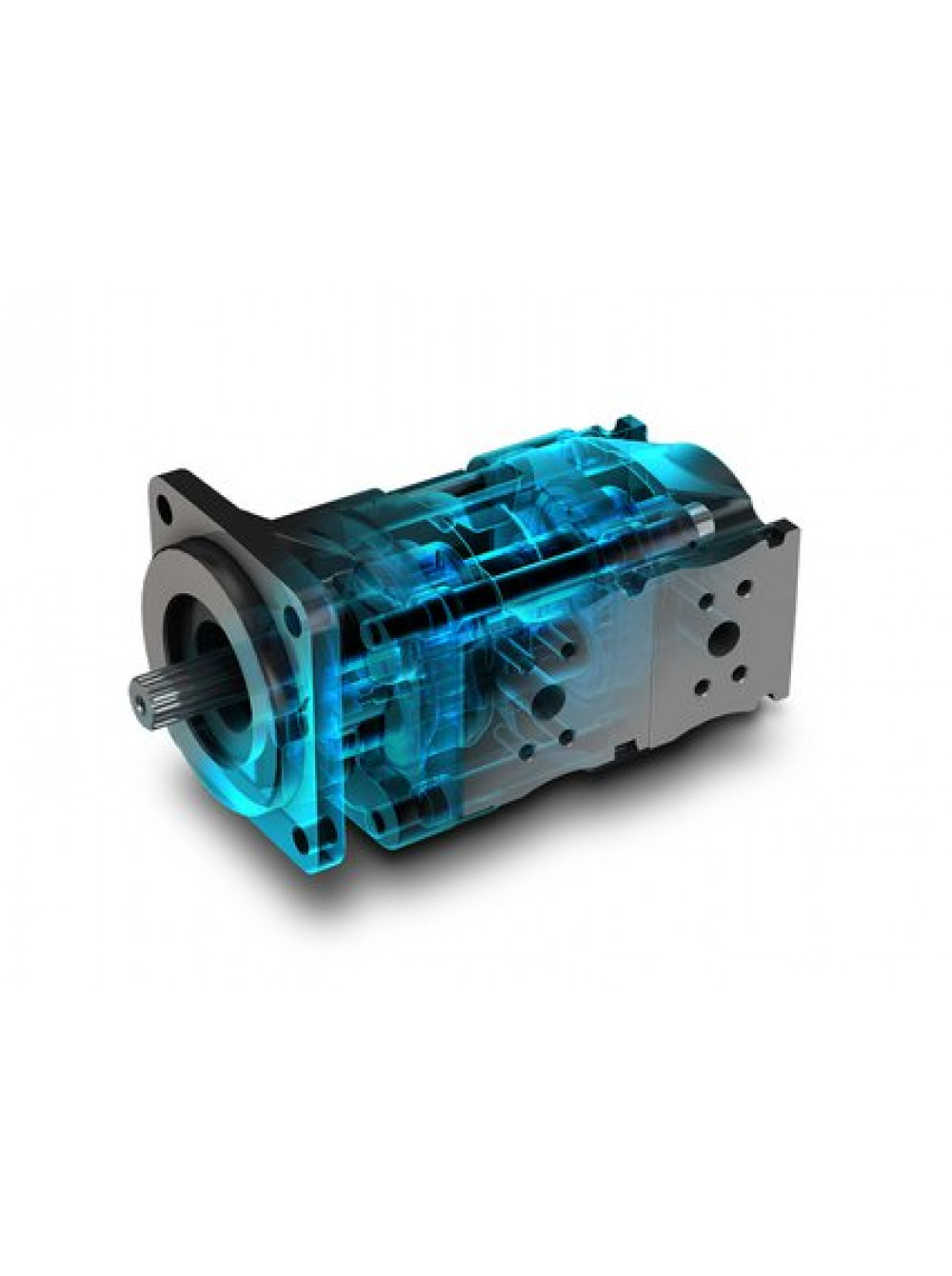

Гидромотор John Deere AXE15826
111.00 ₽
Описание
Гидромотор John Deere AXE15826
Eaton 6433-152
HHD643314BB1B3L3L000A0B
| DISPLACEMENT | 105,39 CM3/R [6.431 IN3/R] AT 18 DEG. SWASHPLATE ANGLE |
| TYPE | FIXED DISPLACEMENT MOTOR |
| DESIGN TYPE | FIXED CLEARANCE — (MODELS 33-64) |
| OUTPUT SHAFT | 14 TOOTH 12/24 PITCH SPLINE (MODELS 33-64) |
| MAIN PORTS | [1.00] SAE 4-BOLT SPLIT FLANGE PORT, HIGH PRESSURE SERIES (CODE 62) |
| END COVER AND COMPOSITE VALVE BLOCK ASSY | STANDARD END COVER, COMPOSITE VALVE BLOCK WITH LOW-RATE SHUTTLE VALVE SPRINGS |
| CHARGE PRESSURE RELIEF VALVE | STANDARD |
| CHARGE PRESSURE RELIEF VALVE SETTING | 11 BAR [160 LBF/IN2] |
| HIGH PRESSURE RELIEF VALVE — PORT A | STANDARD WITH THREADED RETAINER |
| HIGH PRESSURE REL VALVE SETTING — PORT A | 379 BAR [5500 LBF/IN2] |
| HIGH PRESSURE RELIEF VALVE — PORT B | STANDARD WITH THREADED RETAINER |
| HIGH PRESSURE REL VALVE SETTING — PORT B | 379 BAR [5500 LBF/IN2] |
| SPEED SENSOR | NO SPEED SENSOR |
| SPECIAL FEATURES | NO SPECIAL FEATURES |
| PAINT AND PACKAGING | PAINTED FINISH BLACK |
| IDENTIFICATION ON UNIT | STANDARD |
| DESIGN CODE | B |
PG203341
AH169693
AH204424
AH131390
