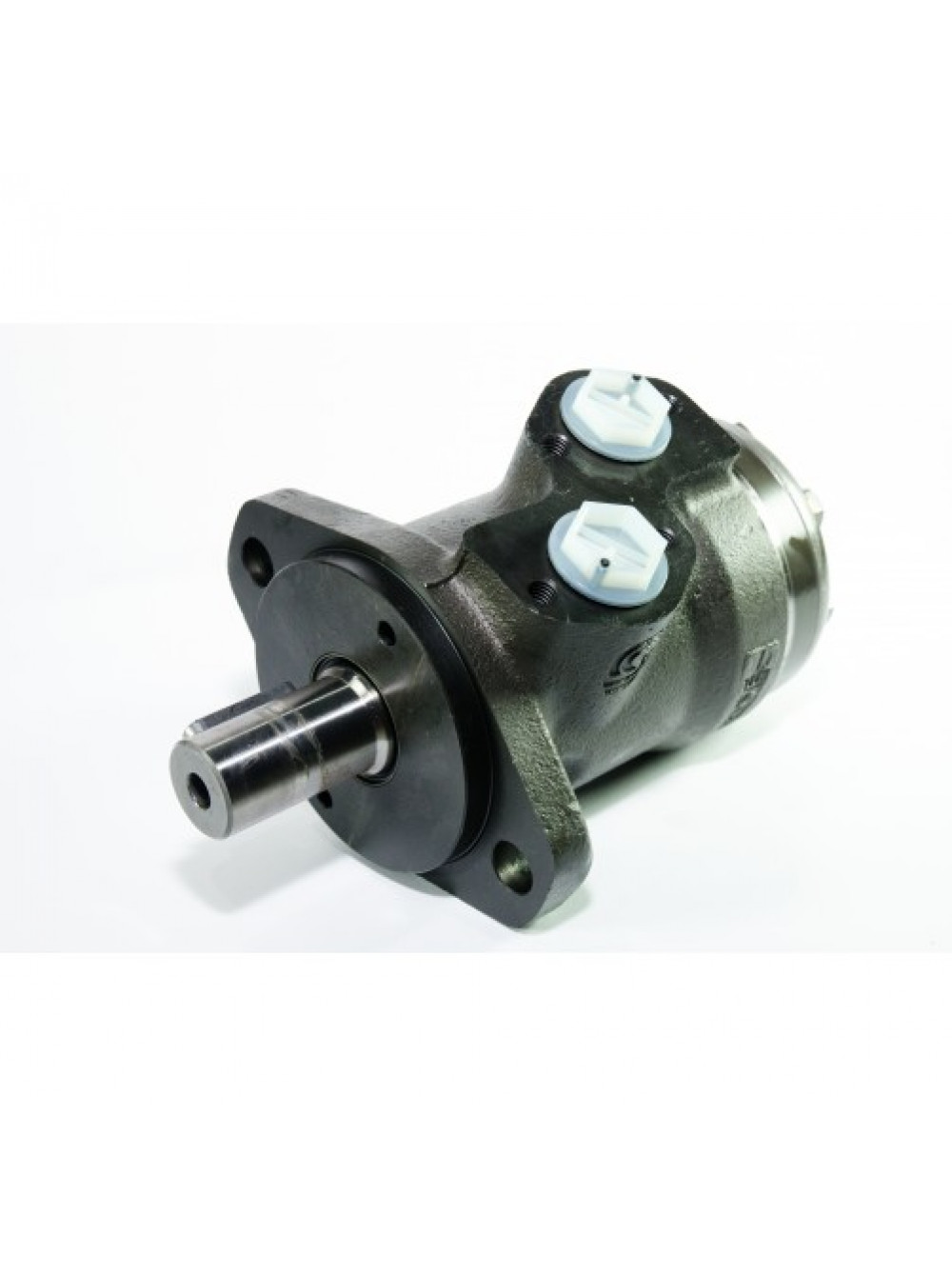

Гидромотор Sauer Danfoss 151-0314
111.00 ₽
Описание
Гидромотор Sauer Danfoss 151-0314
1510314
OMP 160
| Type of hydraulic motor | on the top |
|---|---|
| Length L1 (mm) | 195 |
| Length L2 (mm) | 21 |
| Diameter D1 (mm) | 86 |
| Type of flange TY-Fl | type A |
| Neck diameter D2 (mm) | 82.5 |
| Number of mounting holes AT-GA | 2 |
| Diameter D3 (mm) | 13.5 |
| Centre distance C (mm) | 106.5 |
| Type of shaft TY-AS | type F |
| Distance L3 (mm) | 54 |
| Shaft diameter D4 (mm) | 25 |
| Key width B (mm) | 8 |
| Thread type TA2 | M8 |
| Pitch metric Pm2 (mm) | 1.25 |
| Number of connections | 2 |
| Thread type TA3 | 1/2 BSP |
| Pitch imperial Pi3 | 14 |
| Mounting thread type TA5 | M8 |
| Pitch metric Pm5 (mm) | 1.25 |
Вес (кг) 6,7
