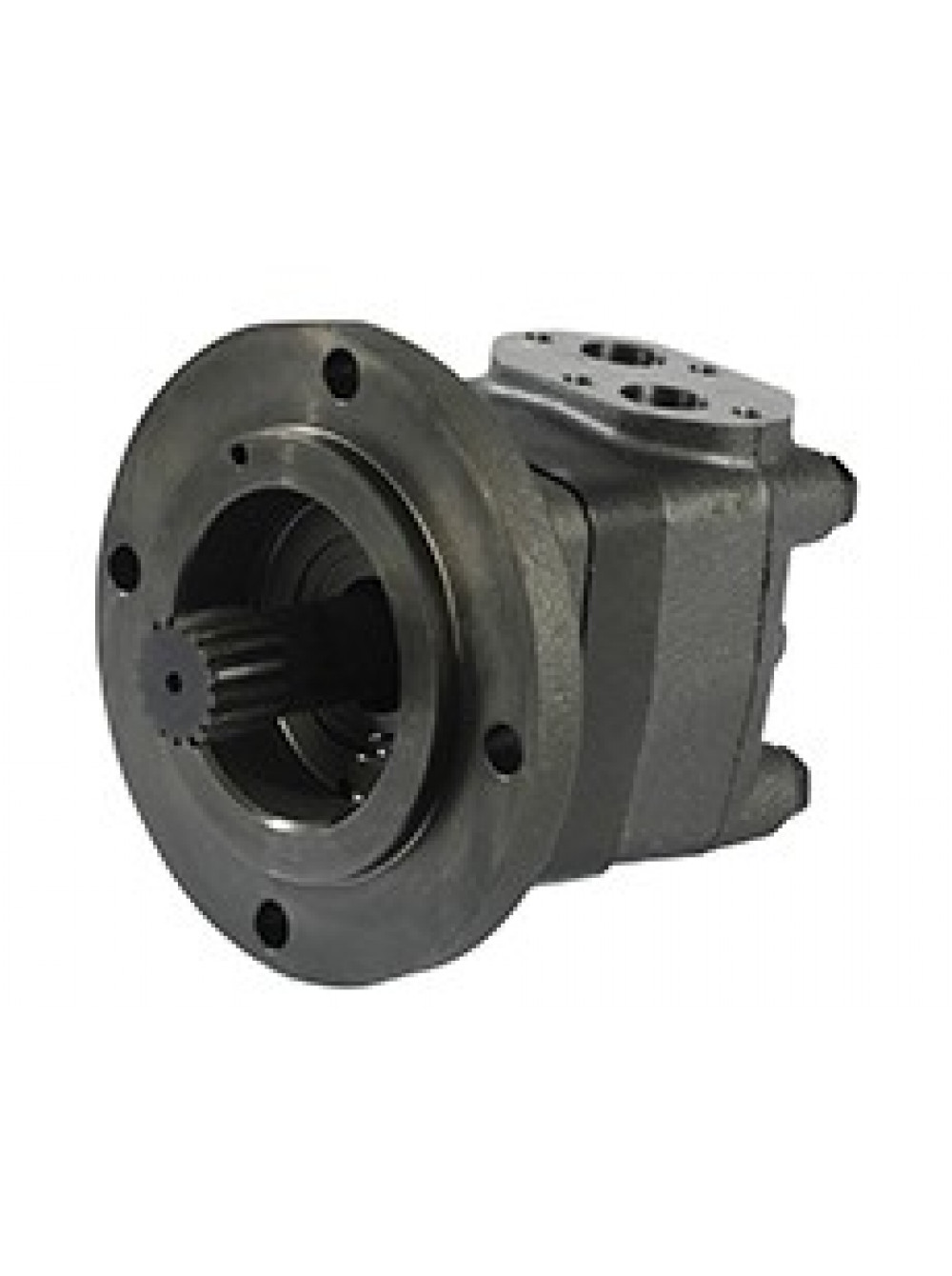

Гидромотор Sauer Danfoss 151B3039
111.00 ₽
Описание
Гидромотор Sauer Danfoss 151B3039
OMTS315
OMTS315-E-4-Z12
| Type of hydraulic motor | on the top |
|---|---|
| Length L1 (mm) | 207 |
| Type of flange TY-Fl | type D |
| Neck diameter D2 (mm) | 125 |
| Number of mounting holes AT-GA | 4 |
| Diameter D3 (mm) | 14 |
| Centre distance C (mm) | 160 |
| Type of shaft TY-AS | type B |
| Distance L3 (mm) | 42.5 |
| Shaft diameter D4 (mm) | 37 |
| Number of splines AC | 16 |
| Number of connections | 2 |
| Thread type TA3 | 3/4 BSP |
| Pitch imperial Pi3 | 14 |
| Mounting thread type TA5 | M10 |
| Pitch metric Pm5 (mm) | 1.5 |
