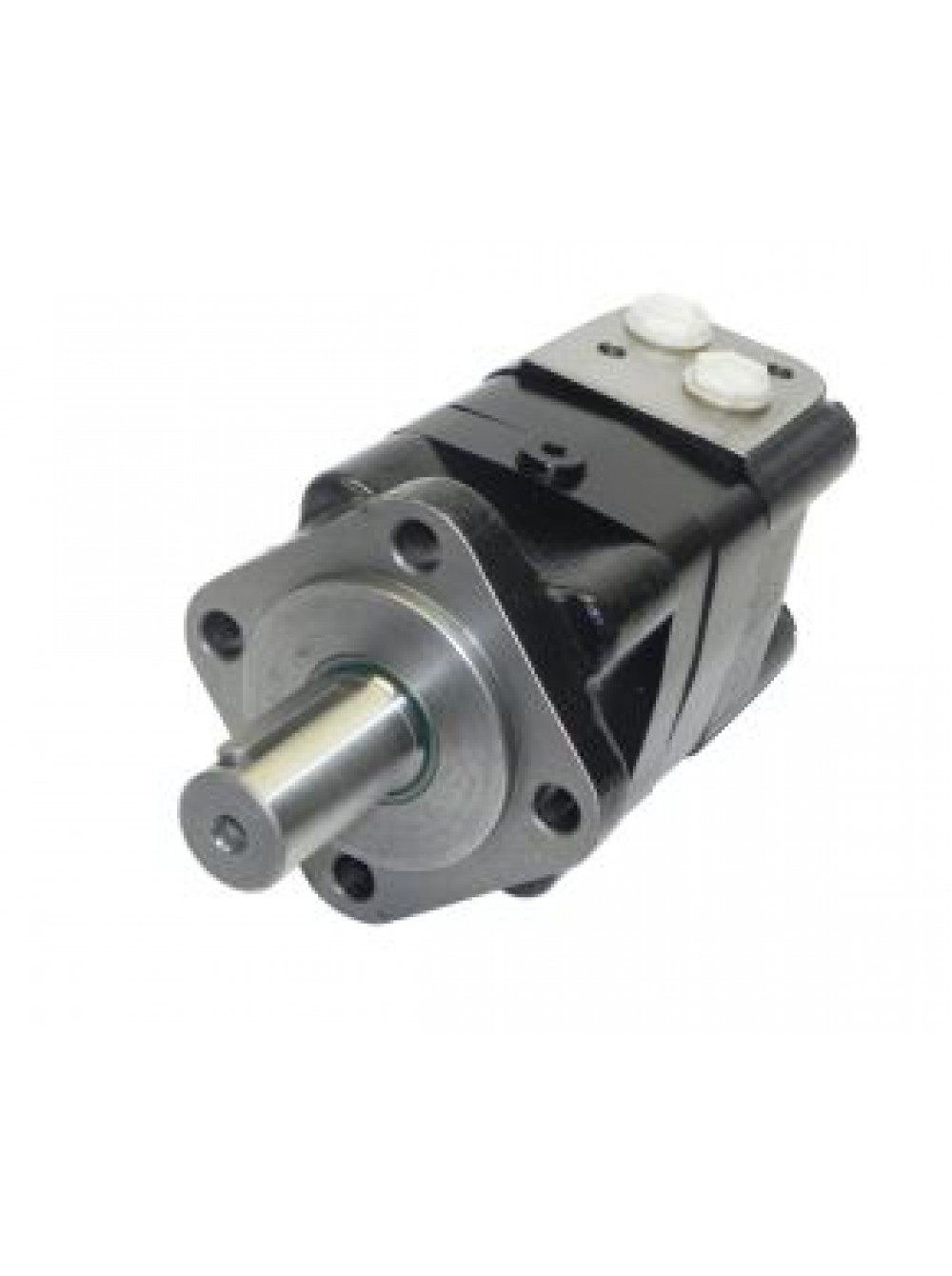

Гидромотор Sauer Danfoss 151F0503

Гидромотор Sauer Danfoss 151F0503

151F0203

Кросс: OMS160

MS160C

EPMS160C

OMZS160

SMS160 4BD

ARS160DC32

HRS160A4M09CL320N

HRS160

BM5AB160BBB

BM3Y-160P10AY

ALSG3E-160-E4-B-MM

WS 160

355160AH321BAAAA

GMVD160O2

HB10

M02096AH16AG0200010000000ABAAF

104-1387-006 1041387006

TF0170VX460AAAA

TG0170VX460AAAB

MB1701

RBS16064

Type of hydraulic motor

on the top

Length L1 (mm)

245

Length L2 (mm)

67

Type of flange TY-Fl

type F

Neck diameter D2 (mm)

82.5

Number of mounting holes AT-GA

4

Diameter D3 (mm)

13.5

Centre distance C (mm)

75

Type of shaft TY-AS

type F

Distance L3 (mm)

66

Shaft diameter D4 (mm)

32

Key width B (mm)

10

Thread type TA2

M8

Pitch metric Pm2 (mm)

1.25

Number of connections

2

Thread type TA3

1/2 BSP

Pitch imperial Pi3

14

Mounting thread type TA5

M10

Pitch metric Pm5 (mm)

1.5

Вес (кг): 11,2
