Гидромотор Sauer Danfoss 151F2209
111.00 ₽
Описание

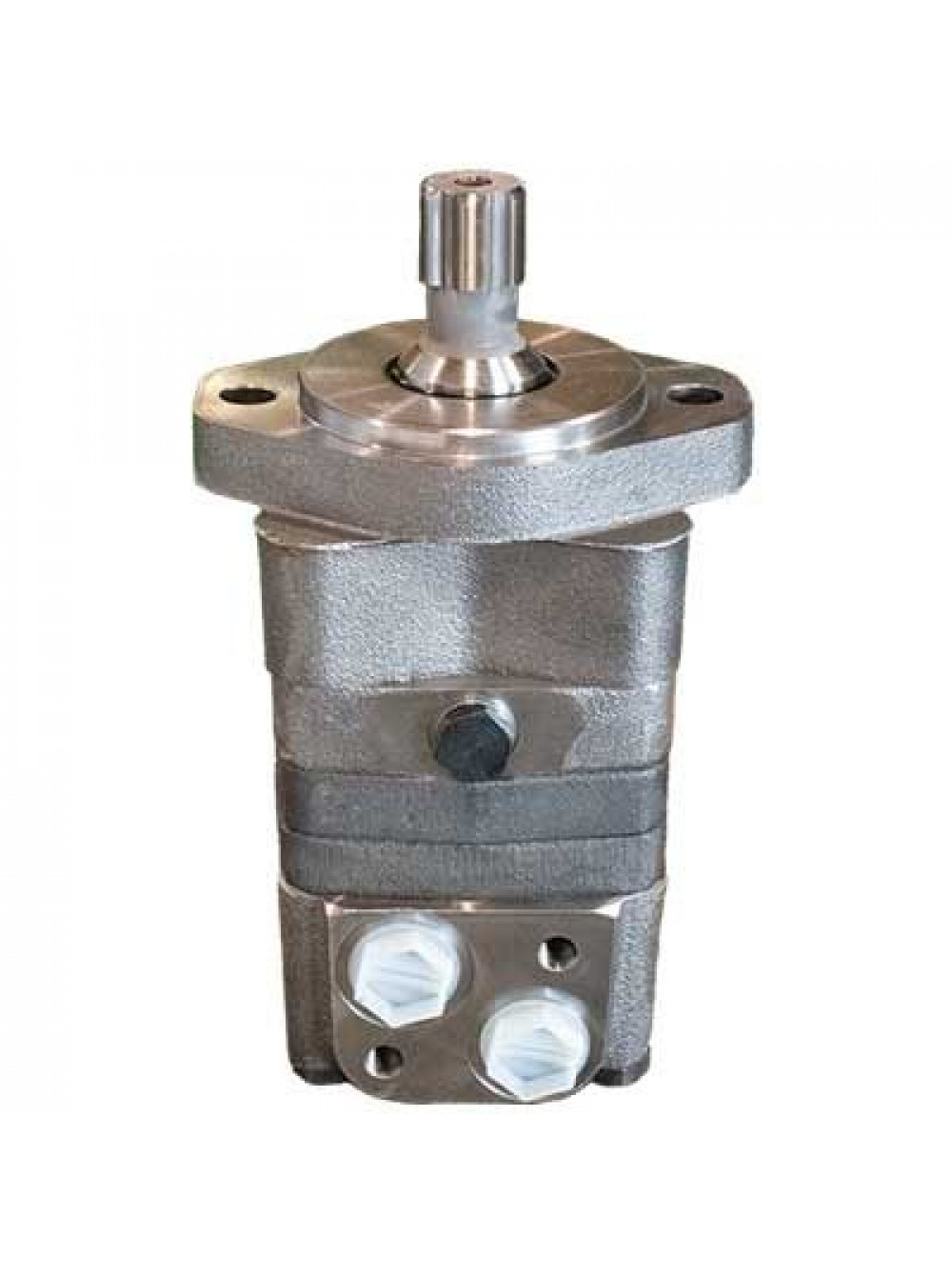

Гидромотор Sauer Danfoss 151F2209
OMS 125
OMS125
| Orbital Series | O-Series |
|---|---|
| Basic Motor | OMS |
| Displacement (cc/rev) | 125 |
| Sealkit | 151F0111 |
| Mounting Flange | Standard |
| Shaft Style | Splined – 14T |
| Shaft Size | 1 1/4 inch 3/8-16 UNC tap |
| Shaft Key | None |
| Port Style | Side port |
| Port Dimensions | 7/8 – 14 UNF |
| Drain Port | 7/16 – 20 UNF |
| Shaft Seal | NBR – Standard |
| Max Inlet Pressure (Bar) Cont | 230 |
| Max Speed (Rpm) Cont | 600 |
| Max Torque (Nm) Cont | 375 |
| Front Bearing | Tapered roller bearing |
| Rear Bearing | Tapered roller bearing |
| Gear Wheel Set | Standard |
| Check Valve | Yes |
| Valve Function | None |
| Brake Release | None |
| Painted | None |
| Dust Seal | Standard |
