Гидромотор Sauer Danfoss 315-473
111.00 ₽
Гидромотор Terex 10.25.8052
111.00 ₽
Гидромотор Sauer Danfoss OMS200
111.00 ₽
Описание

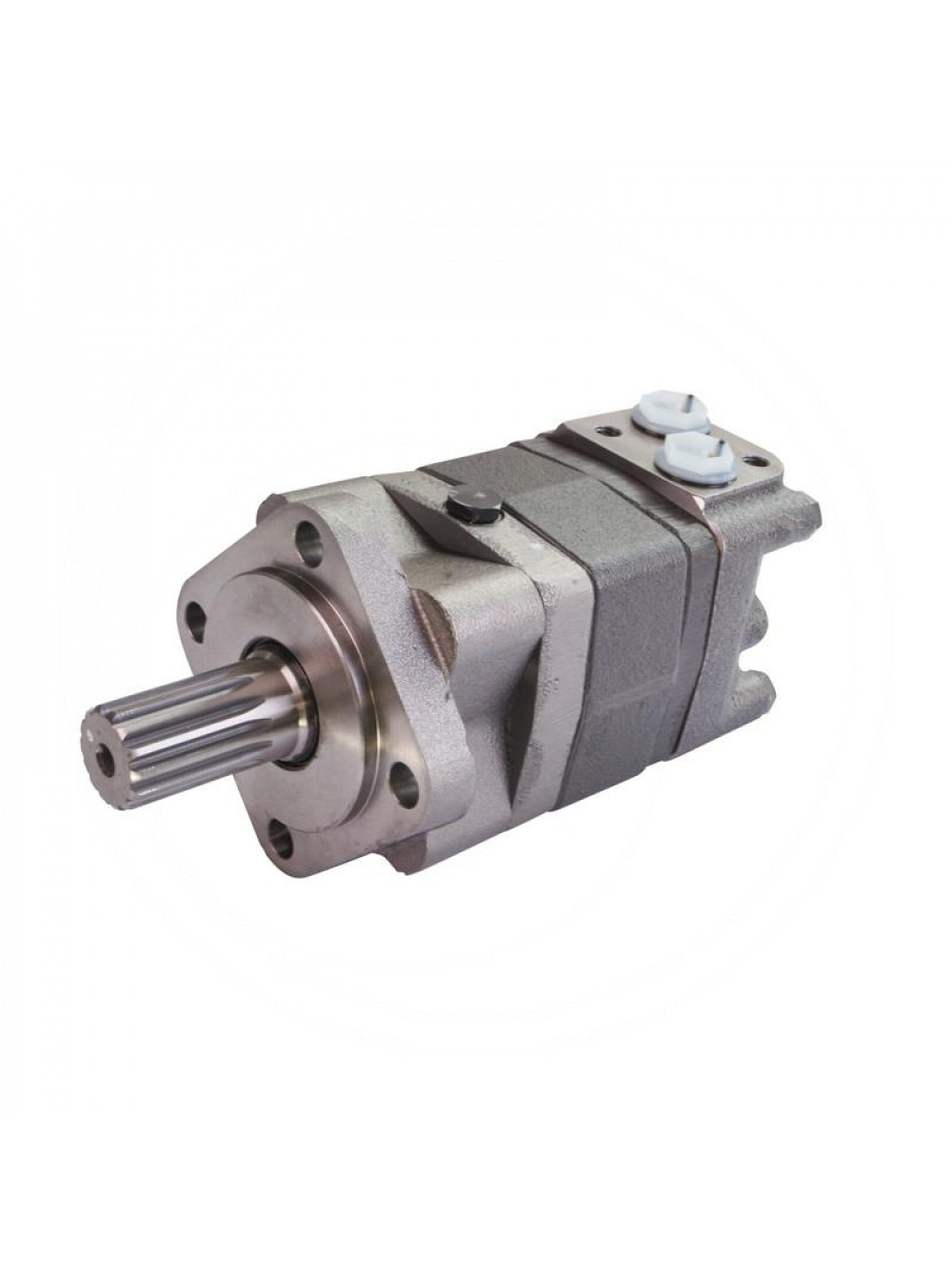

Гидромотор Sauer Danfoss OMS200
151F0504
| Type of hydraulic motor | on the top |
|---|---|
| Length L1 (mm) | 252 |
| Length L2 (mm) | 74 |
| Type of flange TY-Fl | type F |
| Neck diameter D2 (mm) | 82.5 |
| Number of mounting holes AT-GA | 4 |
| Diameter D3 (mm) | 13.5 |
| Centre distance C (mm) | 75 |
| Type of shaft TY-AS | type F |
| Distance L3 (mm) | 65 |
| Shaft diameter D4 (mm) | 32 |
| Key width B (mm) | 10 |
| Thread type TA2 | M8 |
| Pitch metric Pm2 (mm) | 1.25 |
| Thread type TA3 | 1/2 BSP |
| Pitch imperial Pi3 | 14 |
| Mounting thread type TA5 | M10 |
| Pitch metric Pm5 (mm) | 1.5 |
112020
OMS 200-A-4-Z08
