Гидронасос Casappa 03580301
111.00 ₽
Описание

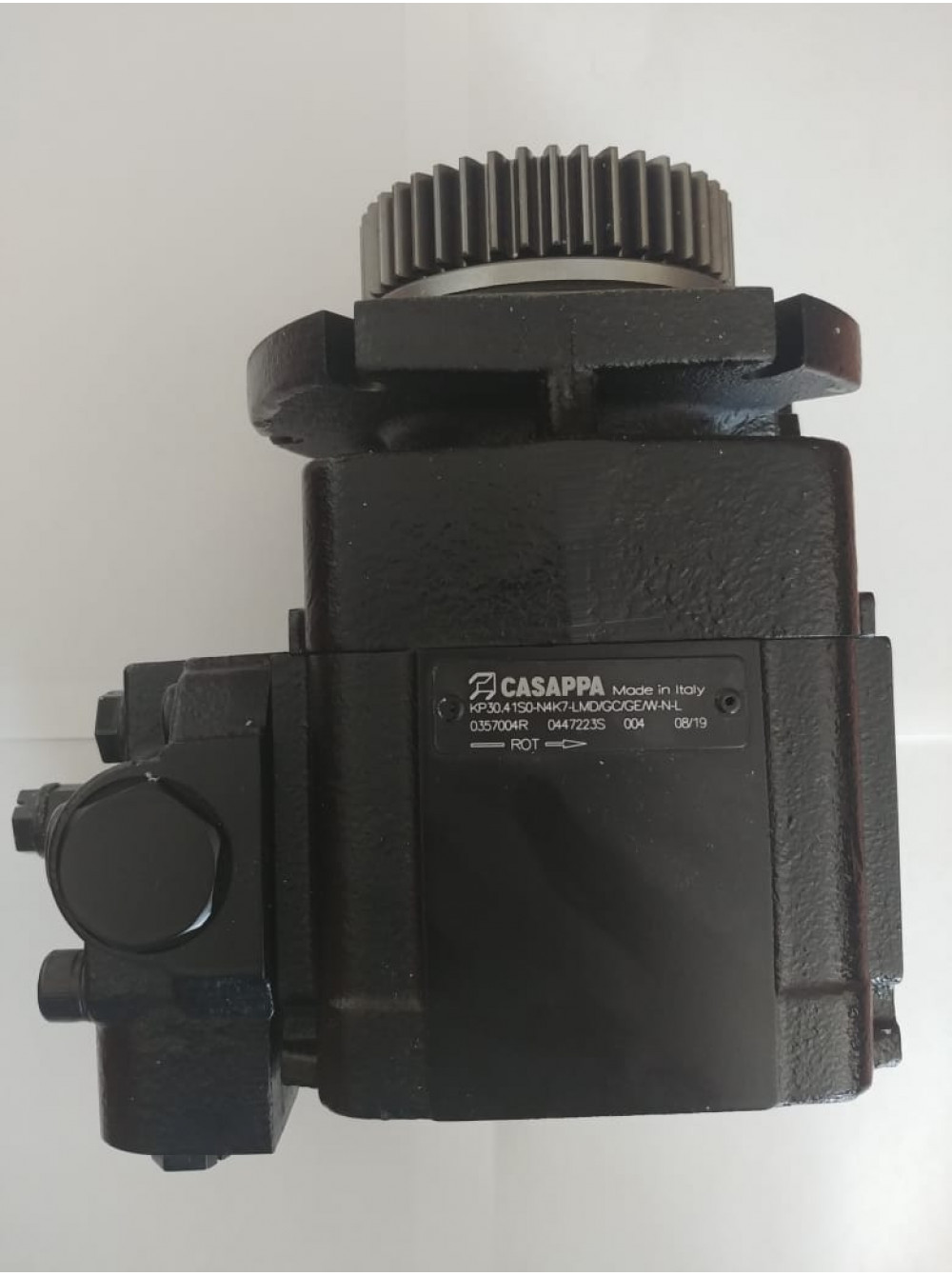

Гидронасос Casappa 03580301
03580305
KP30.41S0-N4K7-LMD/GC/GE/ W-N-
KP3041S0N4K7LMDGCGEWN
0357004R
KP30.41S0-N4K7-LMD/GC/GE /W-N-L
03580303
Merlo 057365
| Type of pump | gearpump |
|---|---|
| Number of elements | 1 |
| Type of flange | special |
| Center distance of mounting holes C1 (mm) | 88 |
| Center distance of mounting holes C2 (mm) | 119 |
| Total length of pump L1 (mm) | 230 |
| Neck diameter D2 (mm) | 104 |
| Type of shaft | type F |
| Distance from flange to end L2 (mm) | 41.2 |
| Thread type (on shaft) TA2 | M16 |
| Direction of rotation | counter clockwise |
| Position of suction port 1st element, only for pump type T POS-CO1 | side |
| Type of connections suction port1st element, only for pump type T TY-COa | type C |
| Thread type of connections suction 1st element | M10 |
| Center distance between mounting holes C-CO1a (mm) | 30.2 |
| Center distance between mounting holes C-CO2a (mm) | 58.7 |
| Flow control valve present | YES |
| Biggest Thread type valve TA3 | 3/4 BSP |
| Second Thread type valve TA4 | 3/8 BSP |
| Material of the housing | metal |
Merlo P32.6
18913858
