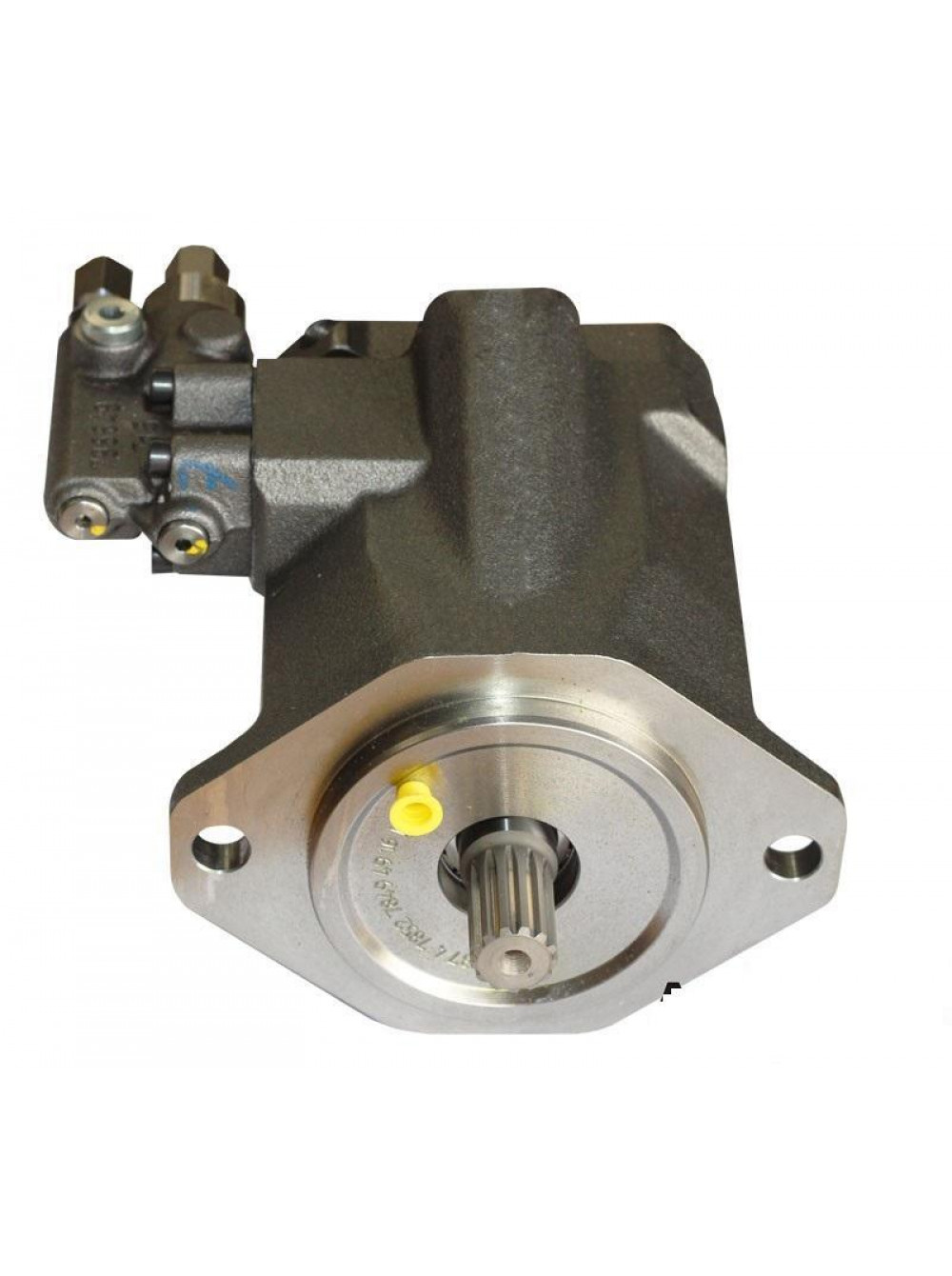

Гидронасос Case 25/566-238
111.00 ₽
Описание
25/566-238
25566238
394268A1, 394268A2
R902429741; 12623662
Подходит: Case IH: MX100, MX100 C, MX110, MX120, MX135, MX80 C, MX90 C
McCormick: MTX110, MTX125 и MC100, MC115, MC80, MC90
| Type of pump | plunger pump |
|---|---|
| Number of elements | 1 |
| Type of flange | type A |
| Diameter of flange mounting holes D1 (mm) | 14.2 |
| Center distance of mounting holes C1 (mm) | 146 |
| Total length of pump L1 (mm) | 246 |
| Neck diameter D2 (mm) | 101.5 |
| Type of shaft | type D |
| Distance from flange to end L2 (mm) | 41 |
| Diameter of shaft D3 (mm) | 21.8 |
| Number of splines | 13 |
| Direction of rotation | counter clockwise |
| Thread type suction side of 1st element TA-Pa | M42 |
| Thread type pressure side of 1st element TA-Pb | M33 |
| Flow control valve present | YES |
| Biggest Thread type valve TA3 | M12 |
| Material of the housing | metal |
