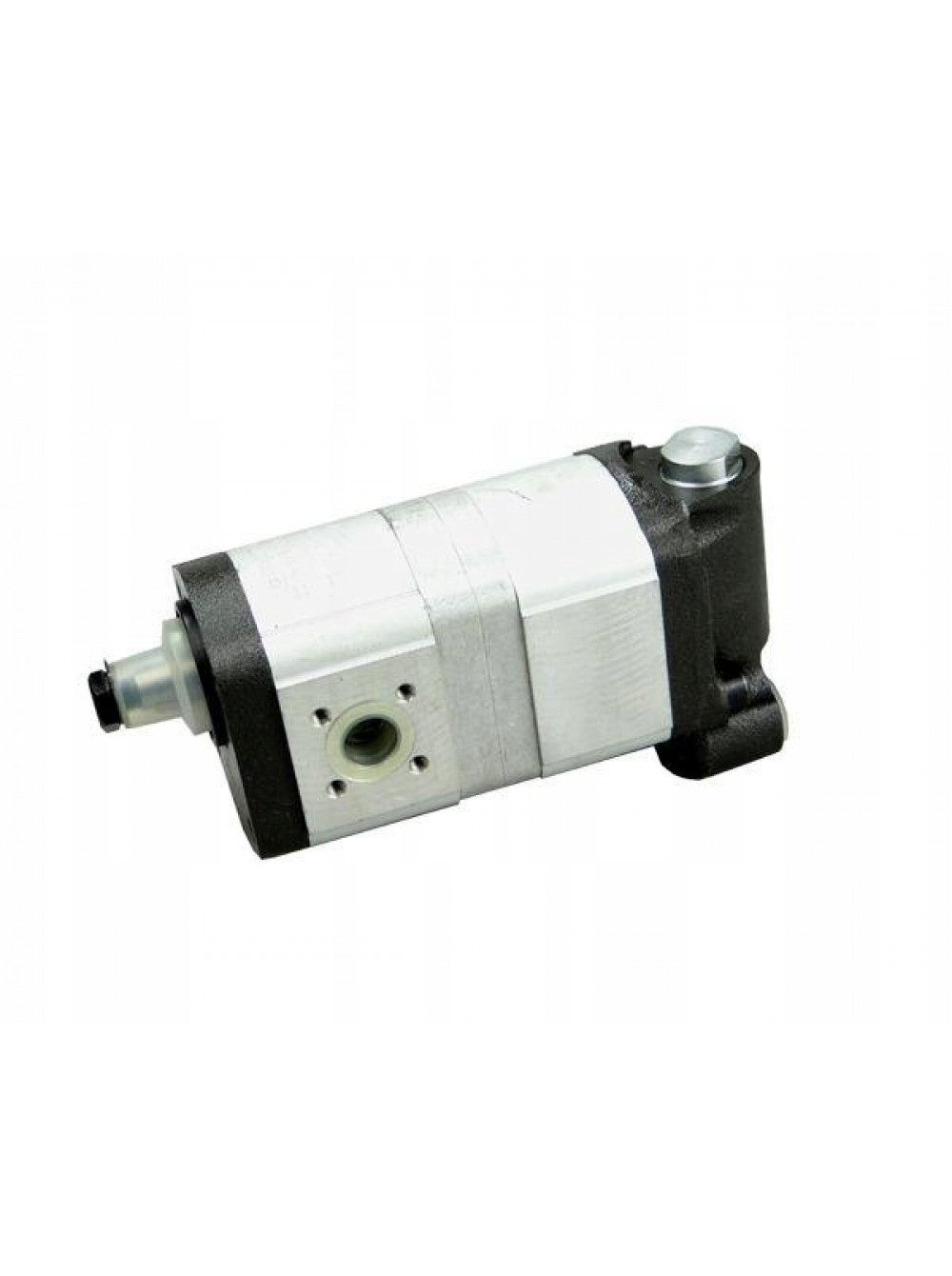

Гидронасос Case 3142563R91

Гидронасос CASE 3142563R91

3142564R91

3145619R92

3142563R91

Rexroth 05104653535

22A8.2/8.2X653

Type of pump

gearpump

Number of elements

2

Type of flange

type C

Diameter of flange mounting holes D1 (mm)

12

Total length of pump L1 (mm)

233

Neck diameter D2 (mm)

50

Type of shaft

type G

Distance from flange to end L2 (mm)

34

Diameter of shaft D3 (mm)

14

Key (way) width W (mm)

3

Thread type (on shaft) TA2

M12

Direction of rotation

counter clockwise

Position of suction port 1st element, only for pump type T POS-CO1

side

Type of connections suction port1st element, only for pump type T TY-COa

type A

Thread type of connections suction 1st element

M6

Center distance between mounting holes C-CO1a (mm)

40

Position of pressure 1st element, only for pump type T POS-CO2

side

Type of connections pressure 1st element, only for pump type T TY-COb

type A

Thread type of connection pressure port 1st element TA-COb

M6

Center distance between mounting holes C-CO1b (mm)

35

Flow control valve present

YES

Biggest Thread type valve TA3

M18

Second Thread type valve TA4

M18

Material of the housing

aluminium

Вес (кг): 5,75
