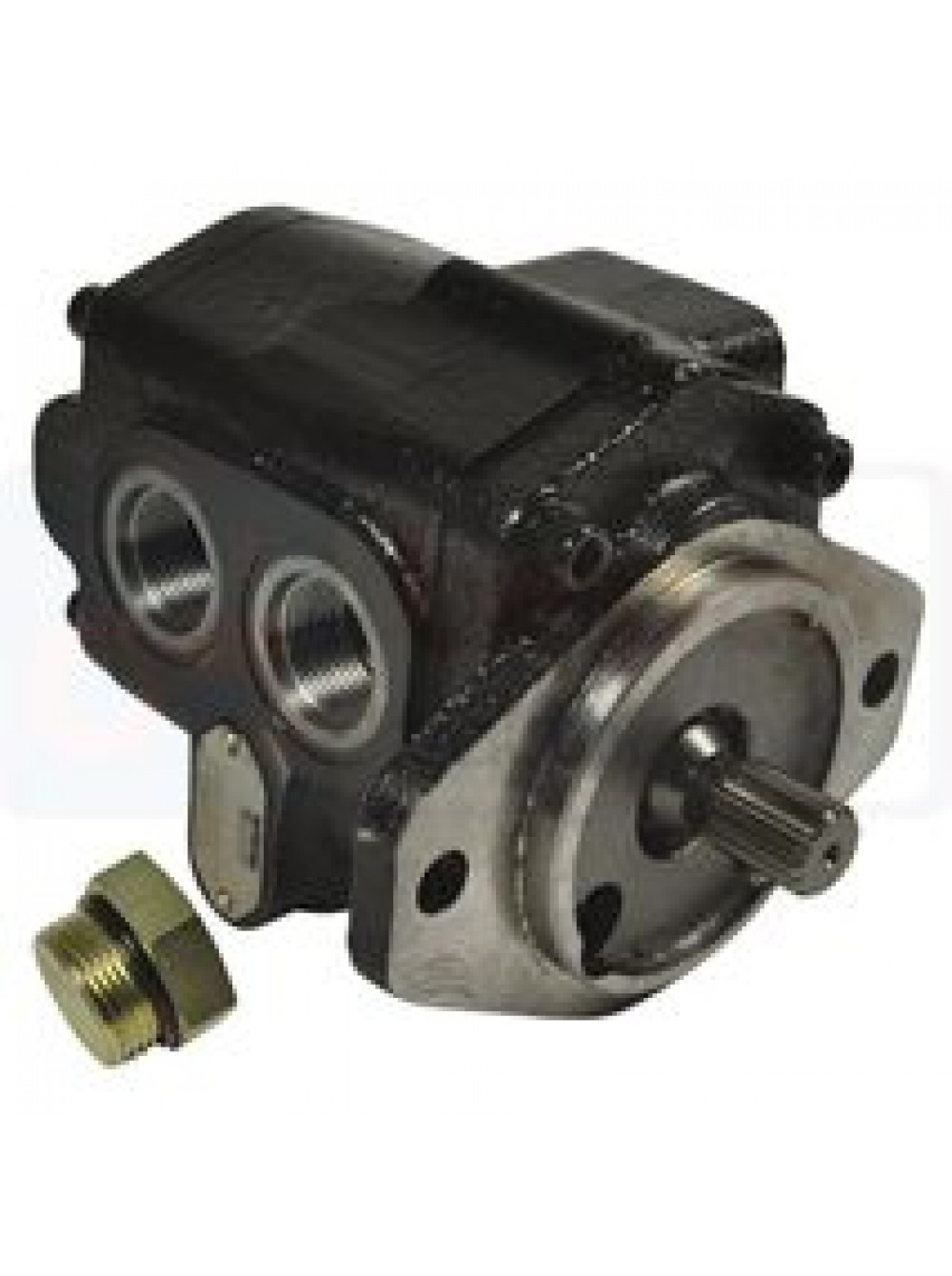

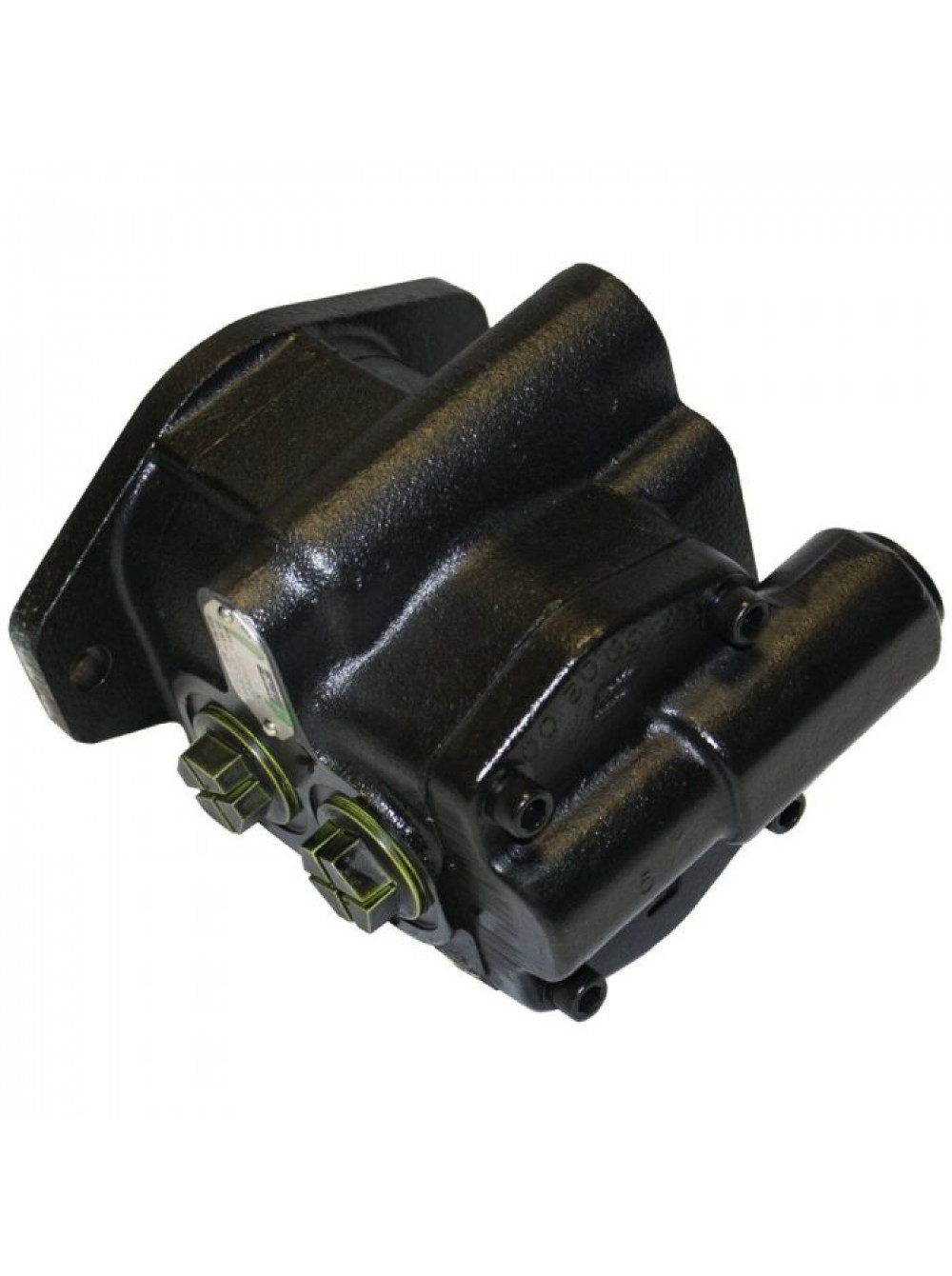

Гидронасос Case 432244A3

Гидронасос CASE 432244A3

1980421C1

Parker PGP315

337-9202-006

3379202006

Type of pump gearpump

Number of elements 1

Type of flange type A

Diameter of flange mounting holes D1 (mm) 14

Center distance of mounting holes C1 (mm) 146

Total length of pump L1 (mm) 223

Neck diameter D2 (mm) 101.6

Type of shaft type D

Distance from flange to end L2 (mm) 41.3

Diameter of shaft D3 (mm) 21.7

Number of splines 13

Direction of rotation clockwise

Position of suction port 1st element, only for pump type T POS-CO1 side

Type of connections suction port1st element, only for pump type T TY-COa type C

Thread type of connections suction 1st element 1/2 UNC

Center distance between mounting holes C-CO1a (mm) 42.9

Center distance between mounting holes C-CO2a (mm) 77.8

Position of pressure 1st element, only for pump type T POS-CO2 side

Type of connections pressure 1st element, only for pump type T TY-COb type E

Thread type pressure side of 1st element TA-Pb 1 5/16 UNF

Position of pressure port 2nd element, only for pump type T POS-CO4 side

Type of connections pressure port 2nd element, only for pump type T TY-COd type E

Thread type pressure side of 2nd element TA-Pd 1 5/16 UNF

Flow control valve present NO

Material of the housing metal

Вес (кг): 16,39

227748A3

482244A1

115214A1

227748A2

227748A1

432244A1

87409405

87428412

87427941

87408785
