Гидронасос Hyundai 39U2-60160
111.00 ₽
Описание

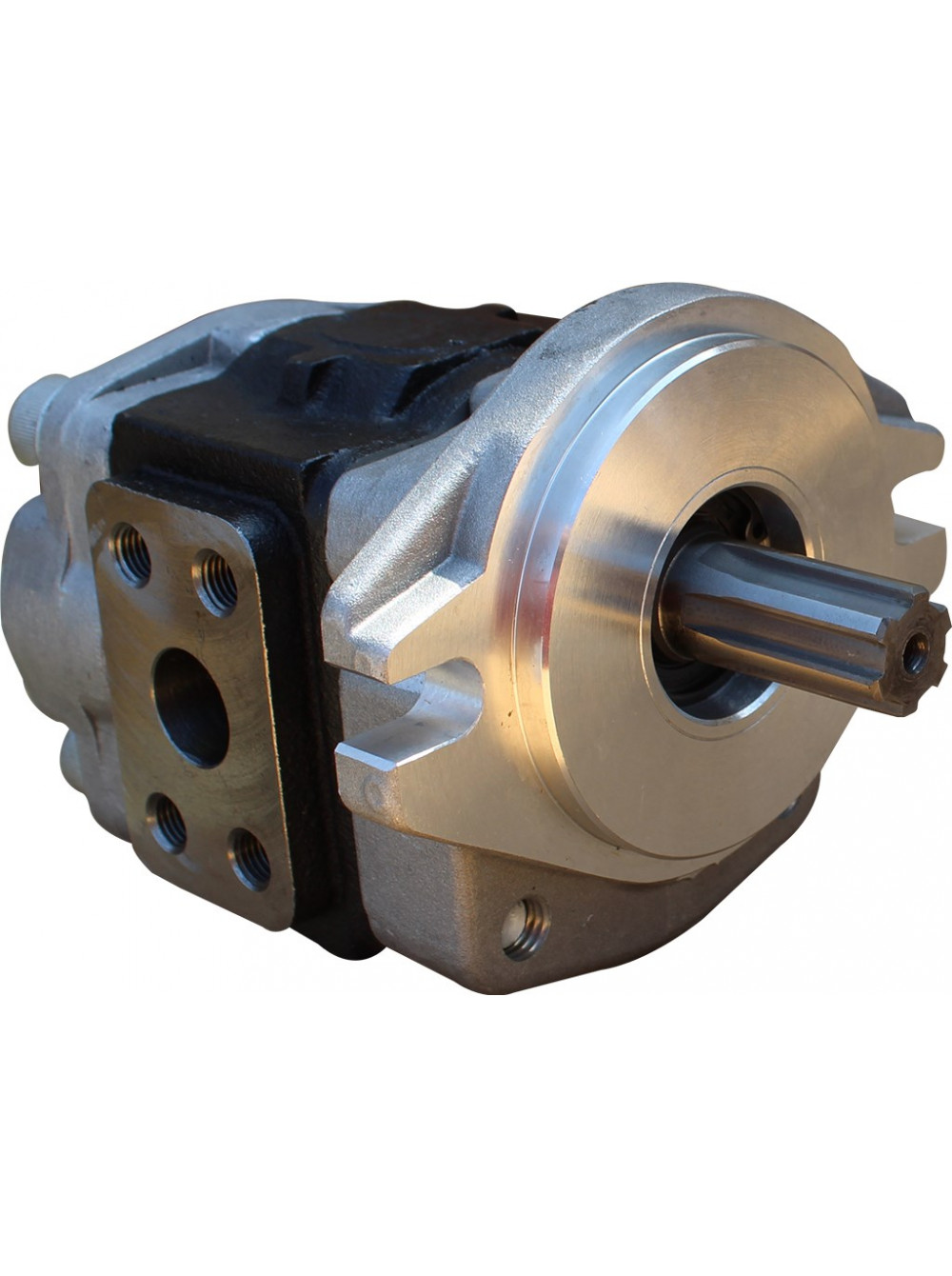

Гидронасос HYUNDAI 39U2-60160
39U260160
SGPIA32A1HH1-L
| Type of pump | gearpump |
|---|---|
| Number of elements | 1 |
| Type of flange | type B |
| Center distance of mounting holes C1 (mm) | 106.3 |
| Total length of pump L1 (mm) | 170 |
| Neck diameter D2 (mm) | 82.5 |
| Type of shaft | type D |
| Distance from flange to end L2 (mm) | 41.5 |
| Diameter of shaft D3 (mm) | 20 |
| Number of splines | 6 |
| Direction of rotation | counter clockwise |
| Position of suction port 1st element, only for pump type T POS-CO1 | side |
| Type of connections suction port1st element, only for pump type T TY-COa | type C |
| Thread type of connections suction 1st element | M10 |
| Center distance between mounting holes C-CO1a (mm) | 26.2 |
| Center distance between mounting holes C-CO2a (mm) | 52.4 |
| Position of pressure 1st element, only for pump type T POS-CO2 | side |
| Type of connections pressure 1st element, only for pump type T TY-COb | type C |
| Thread type of connection pressure port 1st element TA-COb | M10 |
| Center distance between mounting holes C-CO1b (mm) | 22.2 |
| Center distance between mounting holes C-CO2b (mm) | 47.6 |
| Flow control valve present | NO |
| Material of the housing | metal |
Hyundai HC30, HD30/D4BB
