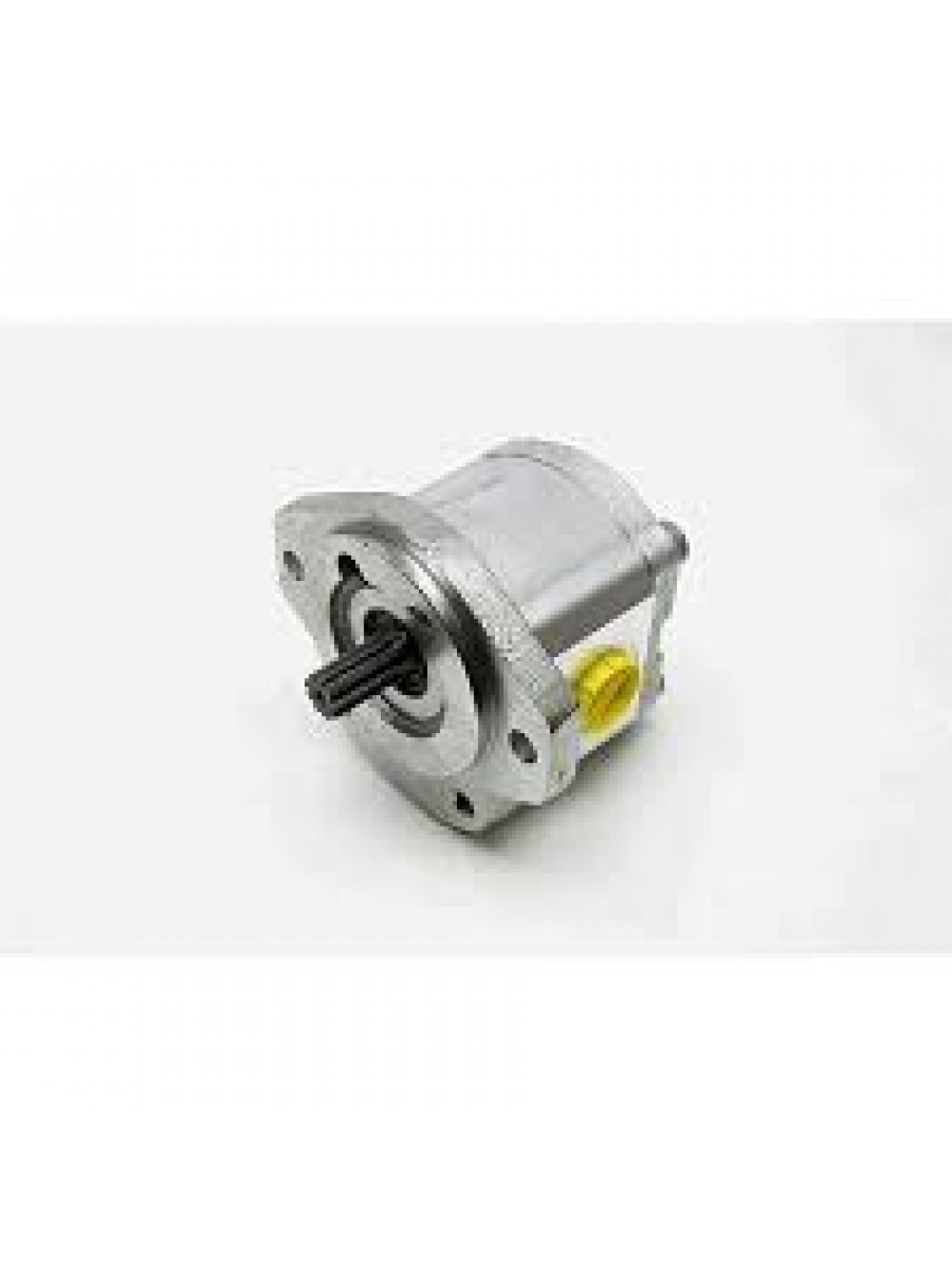

Гидронасос IPS 147557

Гидронасос IPS 147557

Genie GN-147557

GEN-147557

GN147557

147557GT

Type of pump

gearpump

Number of elements

1

Type of flange

type A

Diameter of flange mounting holes D1 (mm)

11

Center distance of mounting holes C1 (mm)

106.4

Total length of pump L1 (mm)

118.5

Neck diameter D2 (mm)

82.5

Type of shaft

type D

Distance from flange to end L2 (mm)

31.4

Diameter of shaft D3 (mm)

15.4

Number of splines

9

Direction of rotation

counter clockwise

Position of suction port 1st element, only for pump type T POS-CO1

side

Type of connections suction port1st element, only for pump type T TY-COa

type E

Thread type suction side of 1st element TA-Pa

7/8 UNF

Position of pressure 1st element, only for pump type T POS-CO2

side

Type of connections pressure 1st element, only for pump type T TY-COb

type E

Thread type pressure side of 1st element TA-Pb

3/4 UNF

Flow control valve present

NO

Material of the housing

aluminium

Торговая марка: CASAPPA

Вес (кг): 3,87
