Гидронасос JCB 20/925311
111.00 ₽
Описание

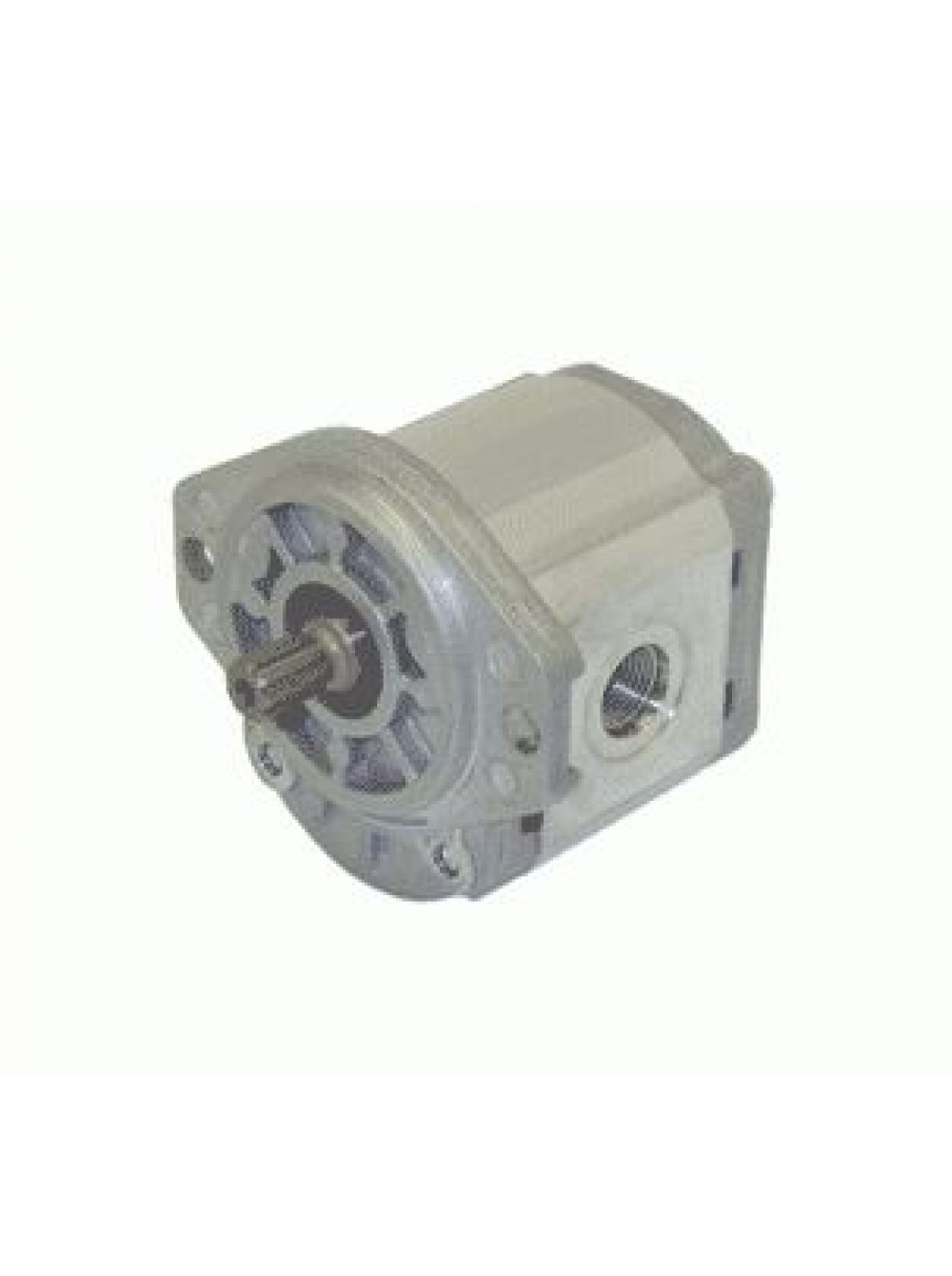

Гидронасос JCB 20/925311
20925311
K5V200DPH
Type of pump
gearpump
Number of elements
1
Type of flange
type A
Diameter of flange mounting holes D1 (mm)
10.9
Center distance of mounting holes C1 (mm)
106.2
Total length of pump L1 (mm)
142
Neck diameter D2 (mm)
82.6
Type of shaft
type D
Distance from flange to end L2 (mm)
32.1
Diameter of shaft D3 (mm)
17
Number of splines
10
Direction of rotation
clockwise
Position of suction port 1st element, only for pump type T POS-CO1
side
Type of connections suction port1st element, only for pump type T TY-COa
type E
Thread type suction side of 1st element TA-Pa
1 BSP
Position of pressure 1st element, only for pump type T POS-CO2
side
Type of connections pressure 1st element, only for pump type T TY-COb
type E
Thread type pressure side of 1st element TA-Pb
3/4 BSP
Flow control valve present
NO
Вес (кг): 3,56
