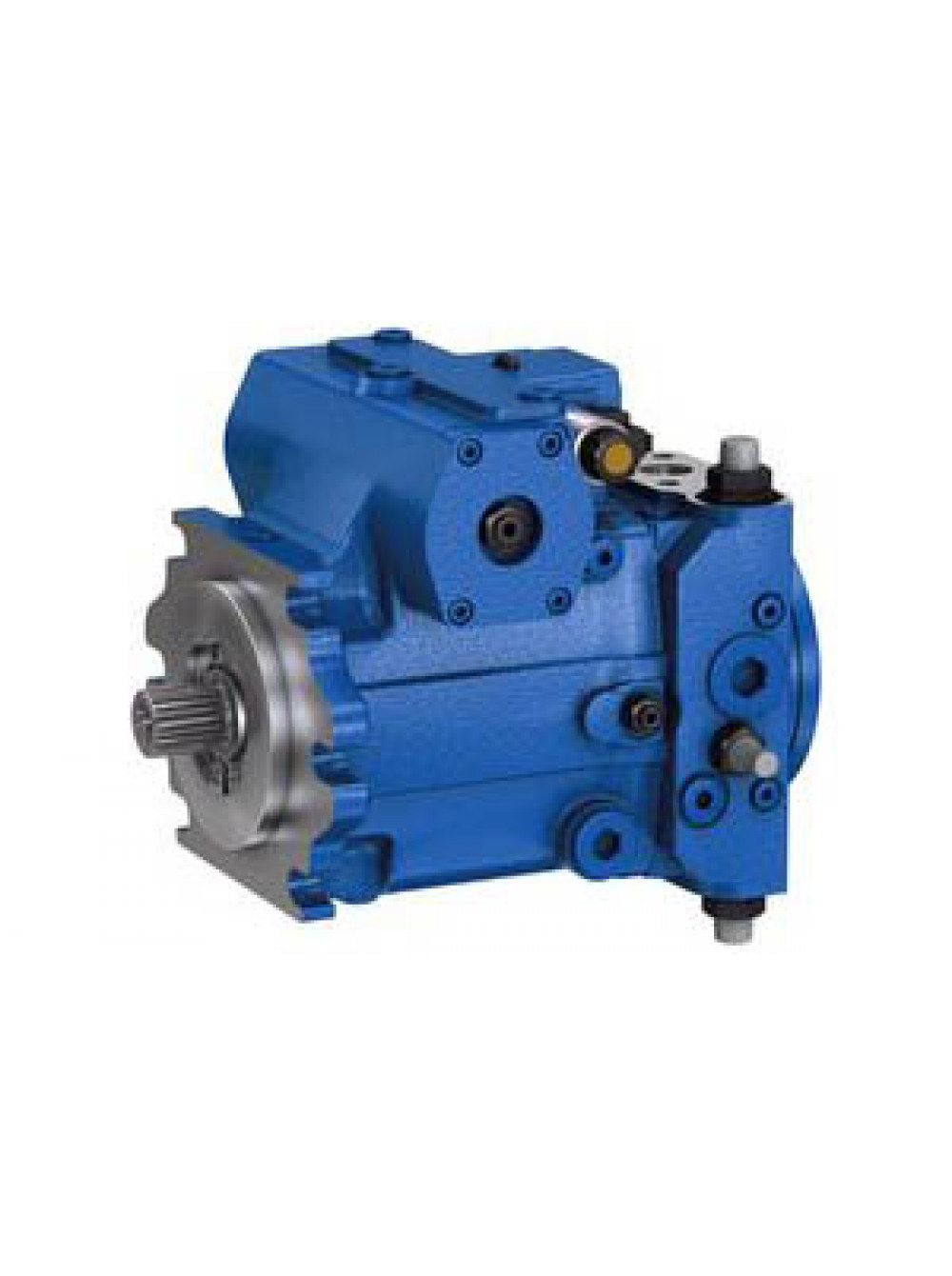

Гидронасос JCB 20/925572
111.00 ₽
Описание
Гидронасос JCB 20/925572
20925572
Rexroth AA4VG40DA1D8/32R-NUC52FXX5ST-S
R902097362
| Type of pump | plunger pump |
|---|---|
| Number of elements | 1 |
| Type of flange | type B |
| Center distance of mounting holes C1 (mm) | 181 |
| Total length of pump L1 (mm) | 286 |
| Neck diameter D2 (mm) | 127 |
| Type of shaft | type E |
| Distance from flange to end L2 (mm) | 46 |
| Diameter of shaft D3 (mm) | 25 |
| Number of splines | 15 |
| Thread type (on shaft) TA2 | 3/8 UNC |
| Direction of rotation | clockwise |
| Thread type suction side of 1st element TA-Pa | 1 5/16 UNF |
| Thread type of connection pressure port 1st element TA-COb | 3/8 UNC |
| Center distance between mounting holes C-CO1b (mm) | 23.8 |
| Center distance between mounting holes C-CO2b (mm) | 50.8 |
| Flow control valve present | NO |
| Material of the housing | metal |
Вес (кг): 38
