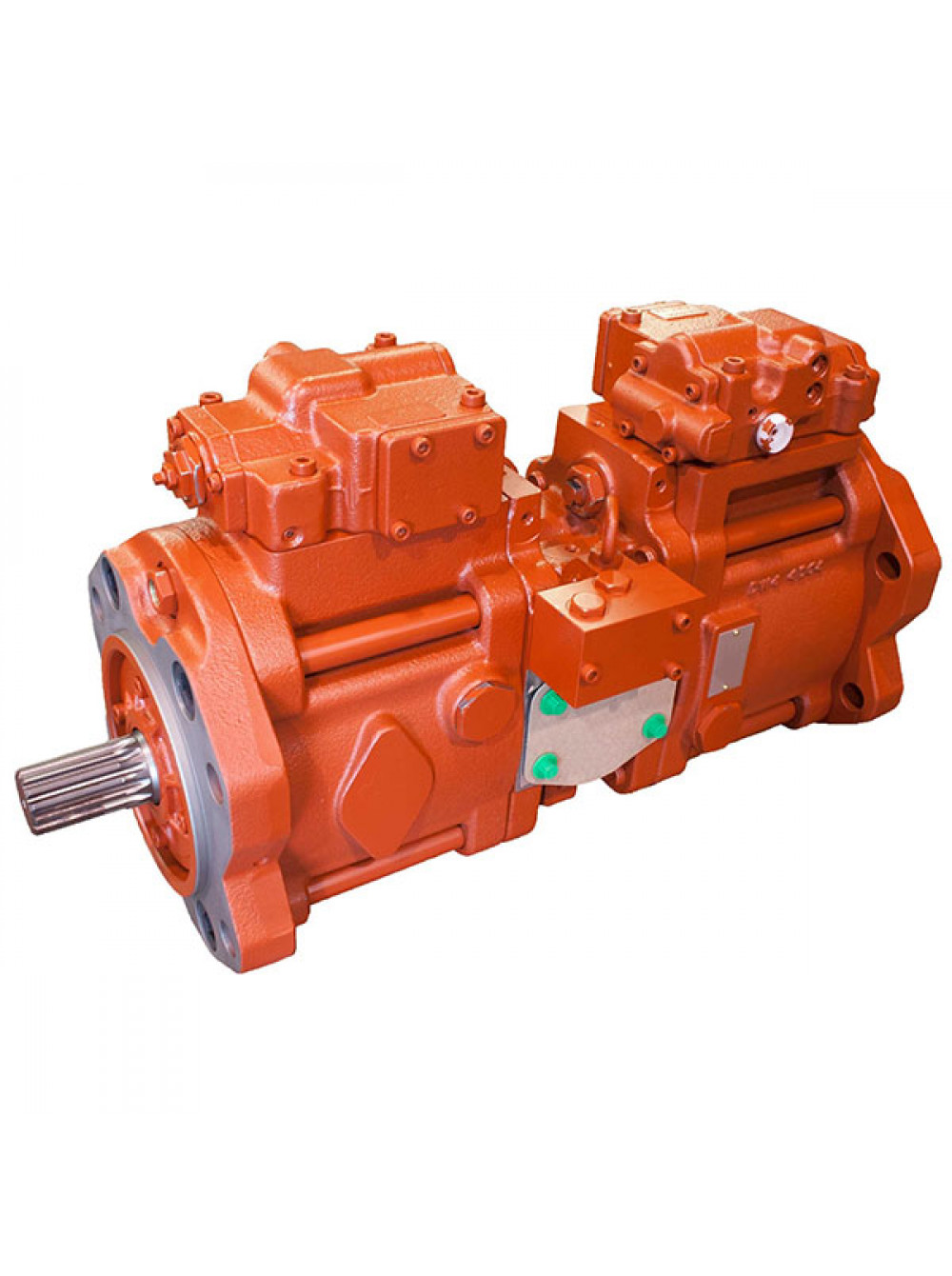

Гидронасос JCB 20/925770

Гидронасос JCB 20/925770

20925770 Pump main hydraulic на экскаватор JCB JS220LC

K3V112DTP

K1000698, KRJ10290

Type of pump

plunger pump

Number of elements

3

Type of flange

special

Diameter of flange mounting holes D1 (mm)

22

Center distance of mounting holes C1 (mm)

112

Center distance of mounting holes C2 (mm)

194

Total length of pump L1 (mm)

685

Neck diameter D2 (mm)

160

Type of shaft

type D

Distance from flange to end L2 (mm)

78

Diameter of shaft D3 (mm)

39.5

Number of splines

14

Thread type of connections suction 1st element

M12

Center distance between mounting holes C-CO1a (mm)

89

Center distance between mounting holes C-CO2a (mm)

51

Thread type of connection pressure port 1st element TA-COb

M10

Center distance between mounting holes C-CO1b (mm)

60

Center distance between mounting holes C-CO2b (mm)

150

Position of suction port 2nd element, only for pump type T POS-CO3

side

Type of connections suction port 2nd element, only for pump type T TY-COc

type E

Thread type suction side of 2nd element TA-Pc

3/4 BSP

Position of pressure port 2nd element, only for pump type T POS-CO4

side

Type of connections pressure port 2nd element, only for pump type T TY-COd

type E

Thread type pressure side of 2nd element TA-Pd

1/2 BSP

Flow control valve present

YES

Biggest Thread type valve TA3

1/4 BSP

Second Thread type valve TA4

1/4 BSP

Material of the housing

aluminium and metal
