Гидронасос JCB 20/925784
111.00 ₽
Описание

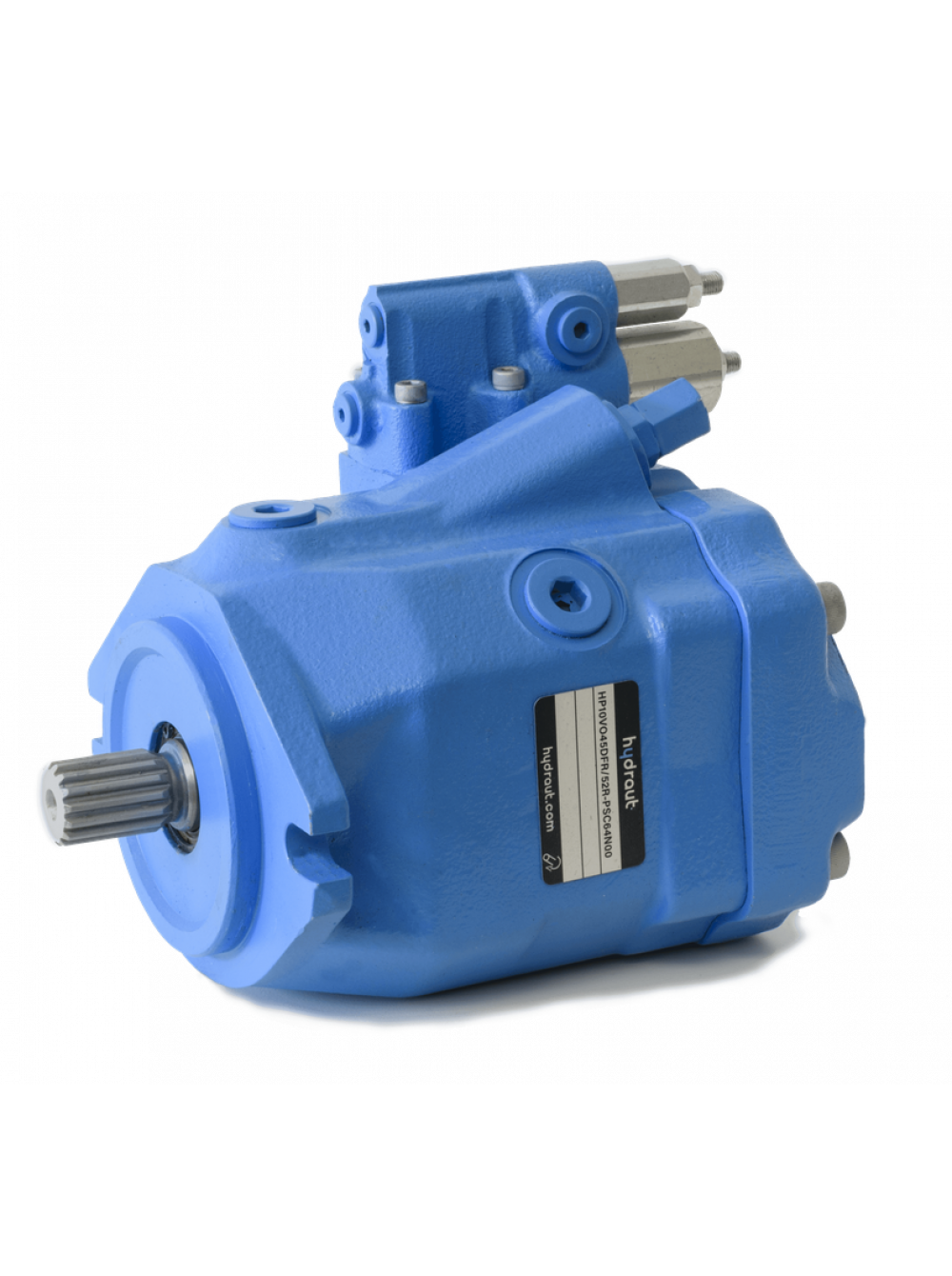

Гидравлический насос JCB 20/925784
Гидравлический аксиально-поршневой насос 20925784
Pump piston variable flow, 74cc/rev
332/G5722 332G5722
BACKHOE LOADER 3CX,4CX,5CX,214,215,217
Type of pump
plunger pump
Number of elements
1
Type of flange
type A
Diameter of flange mounting holes D1 (mm)
17.9
Center distance of mounting holes C1 (mm)
181
Total length of pump L1 (mm)
334
Neck diameter D2 (mm)
127
Type of shaft
type D
Distance from flange to end L2 (mm)
55.6
Diameter of shaft D3 (mm)
31.1
Number of splines
14
Direction of rotation
clockwise
Thread type of connections suction 1st element
M12
Center distance between mounting holes C-CO1a (mm)
43
Center distance between mounting holes C-CO2a (mm)
78
Thread type of connection pressure port 1st element TA-COb
M10
Center distance between mounting holes C-CO1b (mm)
26
Center distance between mounting holes C-CO2b (mm)
61.5
Flow control valve present
YES
Biggest Thread type valve TA3
M11
Material of the housing
metal
Вес (кг): 38 OEM
