Описание

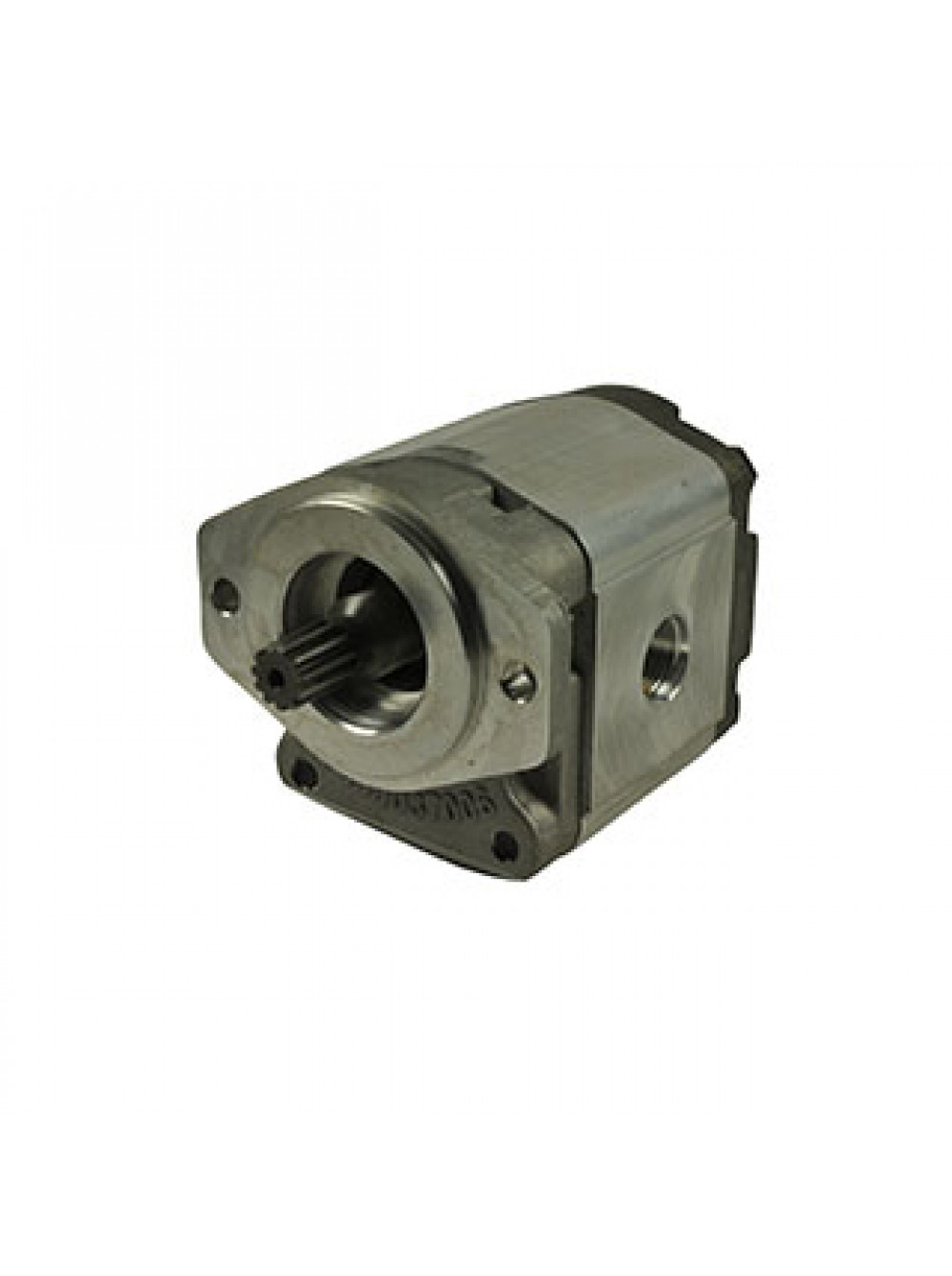

Гидронасос John Deere AL117812
AL156335, AL200830, GP156335
69/565-270
| Type of pump | gearpump |
|---|---|
| Number of elements | 1 |
| Type of flange | type A |
| Diameter of flange mounting holes D1 (mm) | 11 |
| Center distance of mounting holes C1 (mm) | 106 |
| Total length of pump L1 (mm) | 190 |
| Neck diameter D2 (mm) | 82.5 |
| Type of shaft | type D |
| Distance from flange to end L2 (mm) | 32.5 |
| Diameter of shaft D3 (mm) | 22.2 |
| Number of splines | 11 |
| Direction of rotation | clockwise |
| Position of suction port 1st element, only for pump type T POS-CO1 | side |
| Type of connections suction port1st element, only for pump type T TY-COa | type A |
| Thread type of connections suction 1st element | M8 |
| Center distance between mounting holes C-CO1a (mm) | 55 |
| Position of pressure 1st element, only for pump type T POS-CO2 | side |
| Type of connections pressure 1st element, only for pump type T TY-COb | type E |
| Thread type pressure side of 1st element TA-Pb | M27 |
| Flow control valve present | NO |
| Material of the housing | aluminium |
