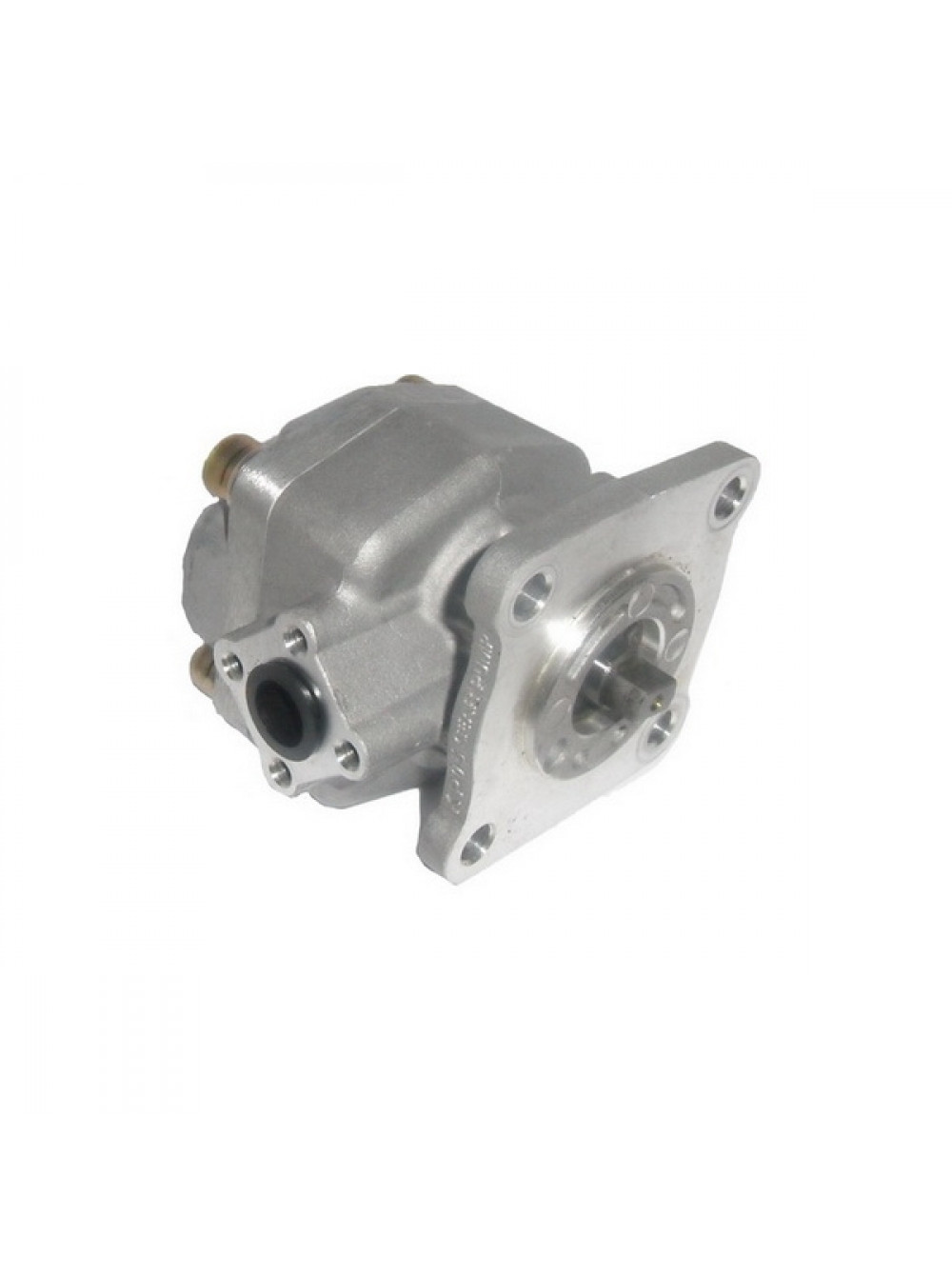

Гидронасос Kayaba GP115AG

Гидронасос KAYABA GP115AG

GP1-15AG

KP0553AHSS

Type of pump

gearpump

Number of elements

1

Type of flange

type G

Diameter of flange mounting holes D1 (mm)

9

Center distance of mounting holes C1 (mm)

63.5

Total length of pump L1 (mm)

105.5

Neck diameter D2 (mm)

50.8

Type of shaft

type B

Distance from flange to end L2 (mm)

13

Diameter of shaft D3 (mm)

14

Key (way) width W (mm)

8

Direction of rotation

counter clockwise

Position of suction port 1st element, only for pump type T POS-CO1

side

Type of connections suction port1st element, only for pump type T TY-COa

type B

Thread type of connections suction 1st element

M6

Center distance between mounting holes C-CO1a (mm)

35.6

Position of pressure 1st element, only for pump type T POS-CO2

side

Type of connections pressure 1st element, only for pump type T TY-COb

type B

Thread type of connection pressure port 1st element TA-COb

M6

Center distance between mounting holes C-CO1b (mm)

35.6

Flow control valve present

NO

Material of the housing

aluminium

Вес (кг): 1,65
