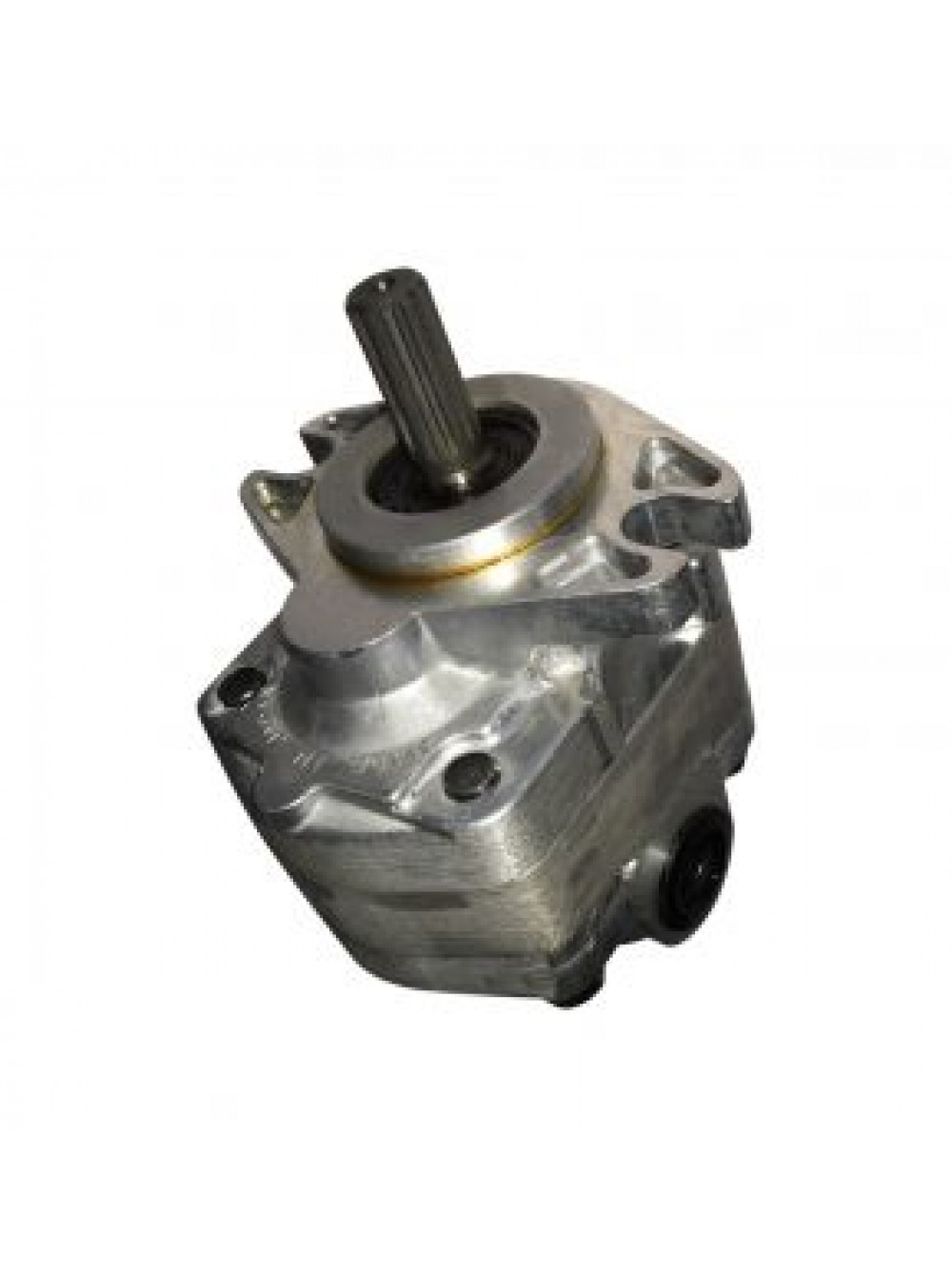

Гидронасос Kayaba KP1013CLFRS

Гидронасос KAYABA KP1013CLFRS

Type of pump

gearpump

Number of elements

1

Type of flange

type B

Center distance of mounting holes C1 (mm)

86

Total length of pump L1 (mm)

136

Neck diameter D2 (mm)

50.8

Type of shaft

type D

Distance from flange to end L2 (mm)

37.5

Diameter of shaft D3 (mm)

13.5

Number of splines

12

Direction of rotation

clockwise

Position of suction port 1st element, only for pump type T POS-CO1

rear

Type of connections suction port1st element, only for pump type T TY-COa

type E

Thread type suction side of 1st element TA-Pa

3/4 BSP

Position of pressure 1st element, only for pump type T POS-CO2

rear

Type of connections pressure 1st element, only for pump type T TY-COb

type E

Thread type pressure side of 1st element TA-Pb

3/8 BSP

Flow control valve present

NO

Material of the housing

aluminium

Вес (кг): 1,88
