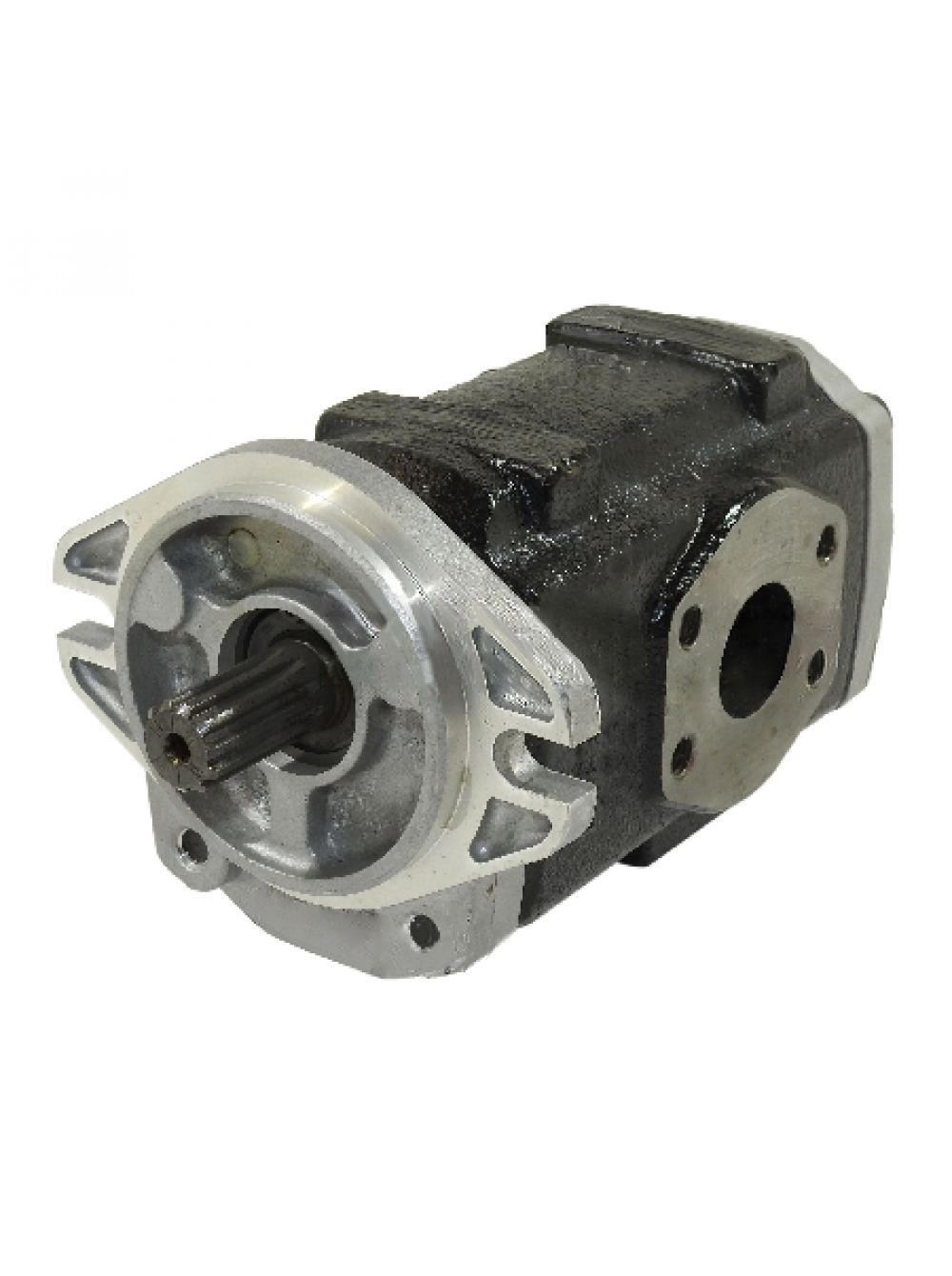

Гидронасос Komatsu 37B-1KB-5052
111.00 ₽
Описание
Гидронасос KOMATSU 37B-1KB-5052
37B-1KB-5050
37B1KB5050
37B1KB5052
| Type of pump | gearpump |
|---|---|
| Number of elements | 2 |
| Type of flange | type B |
| Center distance of mounting holes C1 (mm) | 106 |
| Total length of pump L1 (mm) | 214 |
| Neck diameter D2 (mm) | 82.5 |
| Type of shaft | type D |
| Distance from flange to end L2 (mm) | 34.8 |
| Diameter of shaft D3 (mm) | 18.4 |
| Number of splines | 11 |
| Direction of rotation | counter clockwise |
| Position of suction port 1st element, only for pump type T POS-CO1 | side |
| Type of connections suction port1st element, only for pump type T TY-COa | type D |
| Thread type of connections suction 1st element | M10 |
| Center distance between mounting holes C-CO1a (mm) | 59 |
| Center distance between mounting holes C-CO2a (mm) | 30.3 |
| Position of pressure 1st element, only for pump type T POS-CO2 | side |
| Type of connections pressure 1st element, only for pump type T TY-COb | type E |
| Thread type pressure side of 1st element TA-Pb | 1/2 BSP |
| Position of pressure port 2nd element, only for pump type T POS-CO4 | side |
| Type of connections pressure port 2nd element, only for pump type T TY-COd | type H |
| Flow control valve present | NO |
| Material of the housing | metal |
Вес (кг) 8,60
