Гидронасос Kubota 37410-7660-0
111.00 ₽
Описание

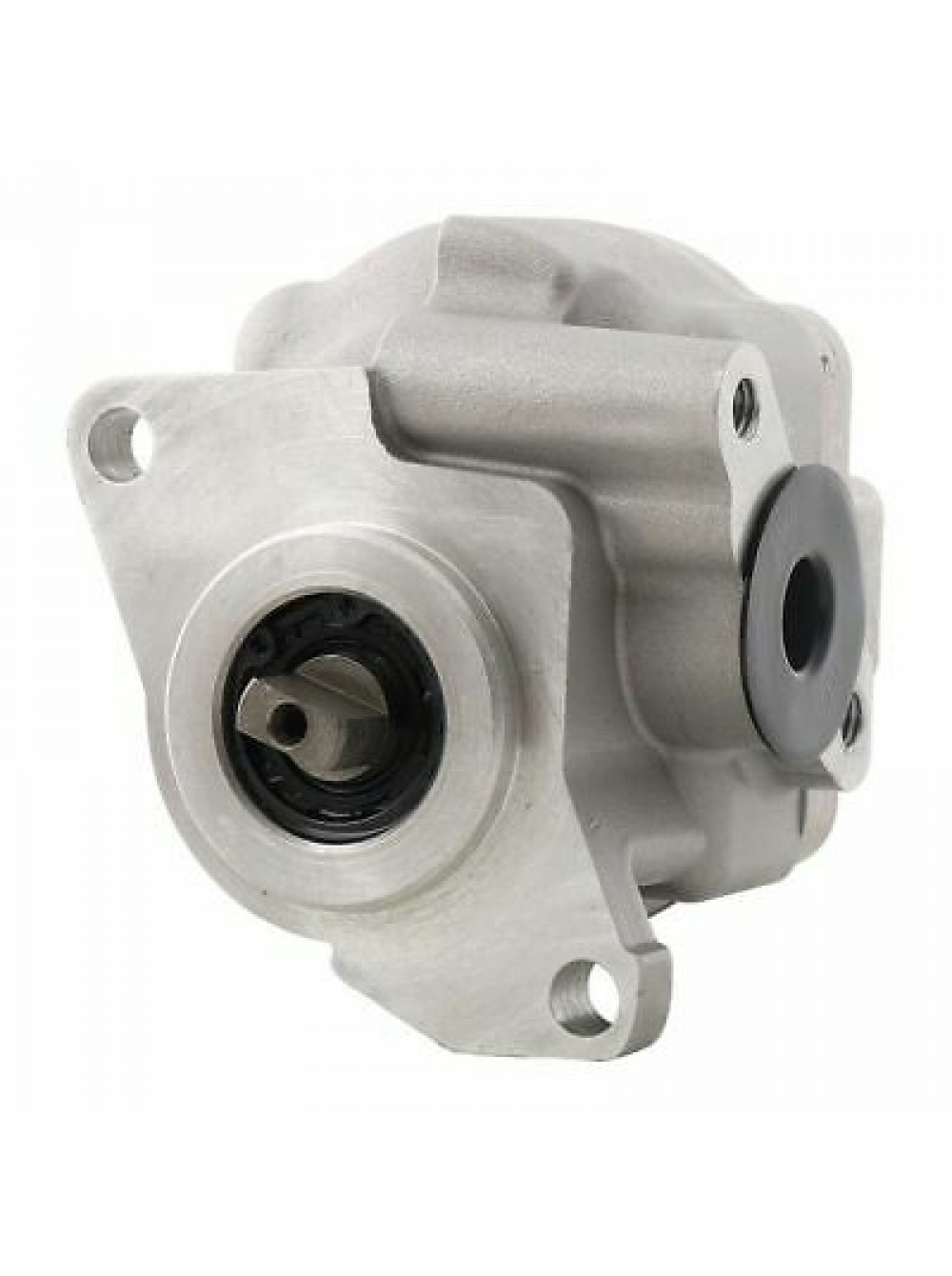

Гидронасос Kubota 37410-7660-0
3741076600 37410-76600
GPO-81L
1115135400, 1249835070, 1460135400, 1522135010, 1522151010, 1526135010, 1532135010, 1547135010, 1547135013, 1588135010, 1600651010, 1623151150,1654135010, 1685135010, 1685135012, 1733135010, 1733135013, 1E01335010,1E01335013, 1E12535020, 1E13850050, 1G52950050, 1G57750050, 1G57750100, 1G57850050, 1G93852030, 1J05035010, 3135176100, 3135176102, 3272135010, 3534036100, 3534036102, 3534045110, 3534045200, 3537036100, 3537045110, 3741076600, 3P30082200, 3P31082200, 5H27626203, 5H27626204, 5H27626205, 8991011840, 8995820810, K201136102, K201136103, K258136900, K265136900, K404036700, K404037000, K700139100, K756134110, LR001F4500, R150196910, R150196912, RB51169080, RC41176375, RD30161120, RD80977470, RD81977470, RD81977472, RG10861120, RG10861130, RG10861140, RG10961120, G11861110, RG23861110, RH41847970, W21TS01965,W27TS01434, W27TS02273 GPO-100L
Type of pump
gearpump
Number of elements
1
Type of flange
special
Diameter of flange mounting holes D1 (mm)
9
Center distance of mounting holes C1 (mm)
90
Total length of pump L1 (mm)
100
Neck diameter D2 (mm)
46
Type of shaft
type B
Distance from flange to end L2 (mm)
15
Diameter of shaft D3 (mm)
15
Key (way) width W (mm)
6.6
Direction of rotation
counterclockwise
Position of suction port 1st element, only for pump type T POS-CO1
rear
Type of connections suction port1st element, only for pump type T TY-COa
type I
Thread type of connections suction 1st element
M10
Center distance between mounting holes C-CO1a (mm)
54
Position of pressure 1st element, only for pump type T POS-CO2
side
Type of connections pressure 1st element, only for pump type T TY-COb
type E
Thread type pressure side of 1st element TA-Pb
3/8 BSP
Flow control valve present
NO
Material of the housing
aluminium
Вес (кг): 1,65
