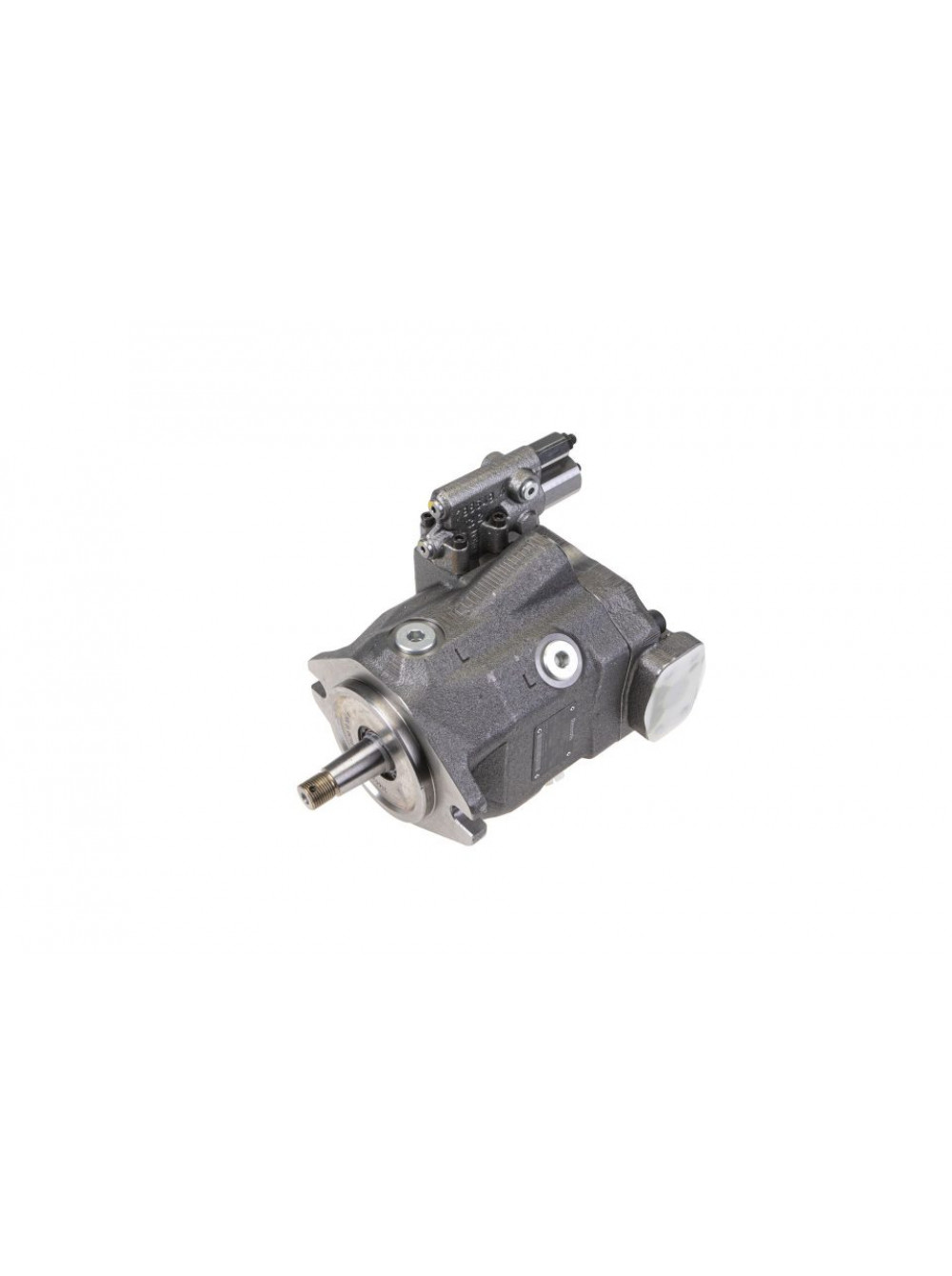

Гидронасос Massey Ferguson 3712289M5
111.00 ₽
Описание
Гидронасос Massey Ferguson 3712289M5
25915316
Rexroth R902538531 A10VO45DFR/52L-VCC12N00
R902538532
| Type of pump | plunger pump |
|---|---|
| Number of elements | 1 |
| Type of flange | type B |
| Center distance of mounting holes C1 (mm) | 146 |
| Total length of pump L1 (mm) | 270 |
| Neck diameter D2 (mm) | 101.6 |
| Type of shaft | type G |
| Distance from flange to end L2 (mm) | 60 |
| Diameter of shaft D3 (mm) | 21.3 |
| Key (way) width W (mm) | 6.4 |
| Thread type (on shaft) TA2 | 3/4 UNF |
| Direction of rotation | counter clockwise |
| Thread type of connections suction 1st element | M12 |
| Center distance between mounting holes C-CO1a (mm) | 35.7 |
| Center distance between mounting holes C-CO2a (mm) | 69.9 |
| Thread type of connection pressure port 1st element TA-COb | M10 |
| Center distance between mounting holes C-CO1b (mm) | 26.2 |
| Center distance between mounting holes C-CO2b (mm) | 52.4 |
| Flow control valve present | YES |
| Biggest Thread type valve TA3 | 7/16 UNF |
| Material of the housing | metal |
Output volume (cc/rev): 45
Weight: 20.45 kg
TV/50539106/
