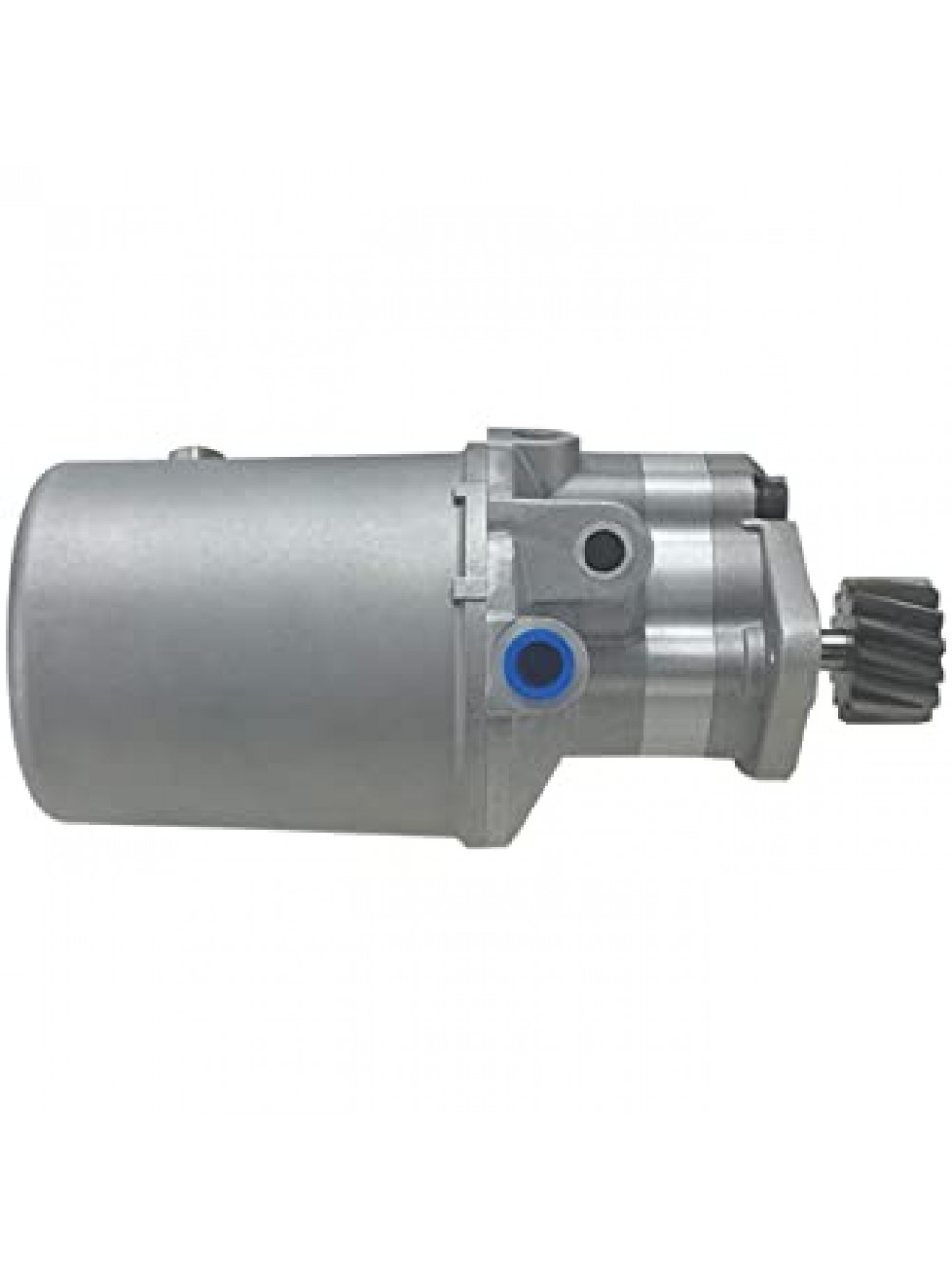

Гидронасос Massey Ferguson 523092M91
111.00 ₽
Описание
Гидронасос Massey Ferguson 523092M91
X-523092M91
X-A-523092M91
X-HM523092
X-S.40150
X-S.60862
| Type of pump | gearpump |
|---|---|
| Number of elements | 1 |
| Type of flange | special |
| Diameter of flange mounting holes D1 (mm) | 10.5 |
| Thread type of mounting holes TA1 | 3/8 UNC |
| Center distance of mounting holes C1 (mm) | 100 |
| Total length of pump L1 (mm) | 273 |
| Neck diameter D2 (mm) | 52 |
| Type of shaft | type C |
| Distance from flange to end L2 (mm) | 41 |
| Diameter of shaft D3 (mm) | 15 |
| Key (way) width W (mm) | 3 |
| Direction of rotation | counter clockwise |
| Position of suction port 1st element, only for pump type T POS-CO1 | side |
| Type of connections suction port1st element, only for pump type T TY-COa | type E |
| Thread type suction side of 1st element TA-Pa | 9/16 UNF |
| Position of pressure 1st element, only for pump type T POS-CO2 | side |
| Type of connections pressure 1st element, only for pump type T TY-COb | type E |
| Thread type pressure side of 1st element TA-Pb | 9/16 UNF |
| Flow control valve present | NO |
| Material of the housing | aluminium |
