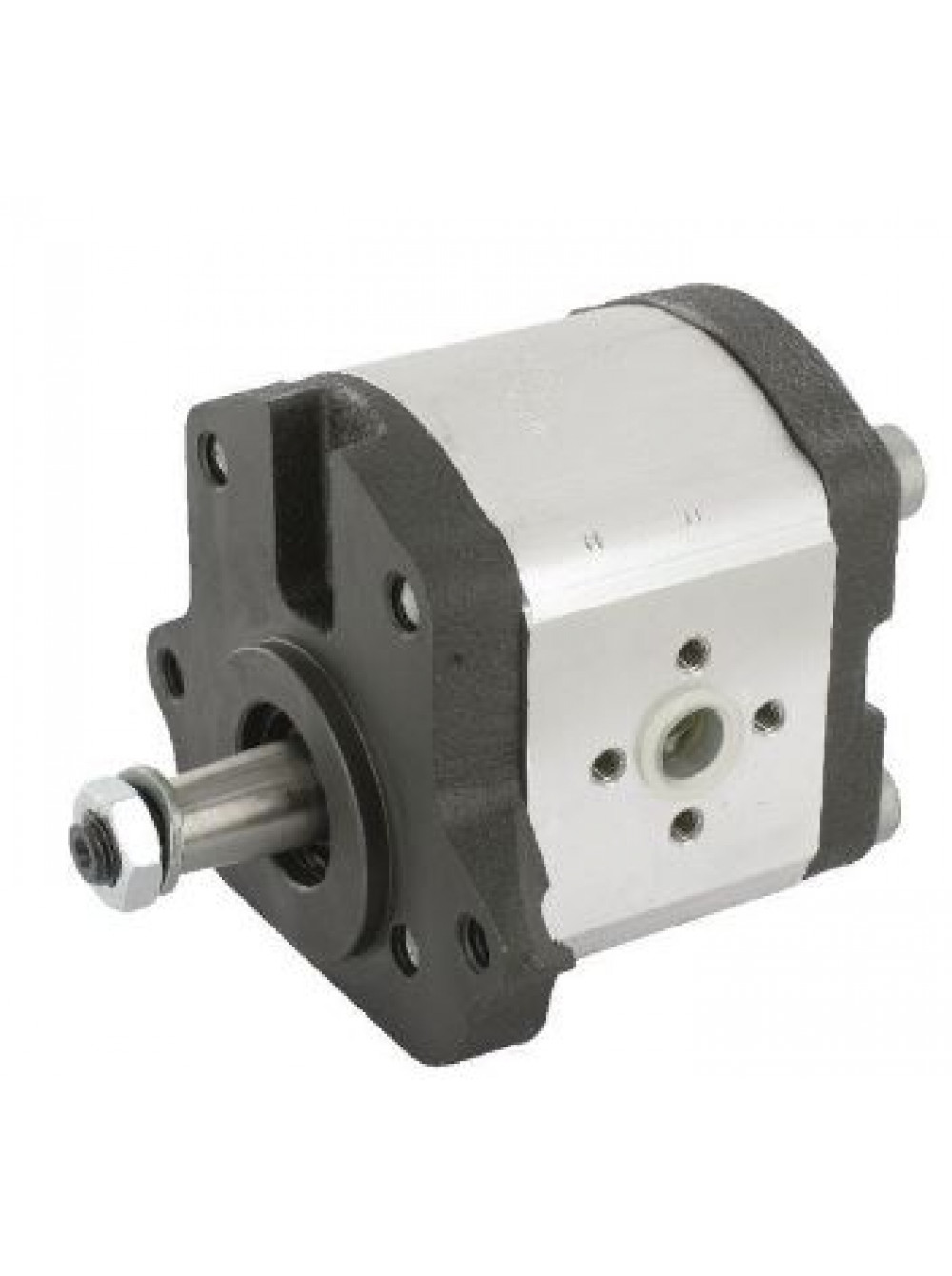

Гидронасос Renault 25918722

Гидронасос Renault 25918722

Rexroth 0510625334

AZPF-10-016LCXXXMB-S0134

Renault Typ: 421, 460, 461, 480, 490, 496, 498, 556, 656

Type of pump

gearpump

Number of elements

1

Type of flange

type A

Diameter of flange mounting holes D1 (mm)

10.5

Center distance of mounting holes C1 (mm)

97

Total length of pump L1 (mm)

136.5

Neck diameter D2 (mm)

63.5

Type of shaft

type G

Distance from flange to end L2 (mm)

38

Diameter of shaft D3 (mm)

14

Key (way) width W (mm)

3

Thread type (on shaft) TA2

M12

Direction of rotation

counter clockwise

Position of suction port 1st element, only for pump type T POS-CO1

side

Type of connections suction port1st element, only for pump type T TY-COa

type A

Thread type of connections suction 1st element

M6

Center distance between mounting holes C-CO1a (mm)

40

Position of pressure 1st element, only for pump type T POS-CO2

side

Type of connections pressure 1st element, only for pump type T TY-COb

type B

Thread type of connection pressure port 1st element TA-COb

M6

Center distance between mounting holes C-CO1b (mm)

30

Flow control valve present

NO

Material of the housing

aluminium

Вес (кг): 3,75
