Гидронасос Rexroth 0510110017
111.00 ₽
Описание

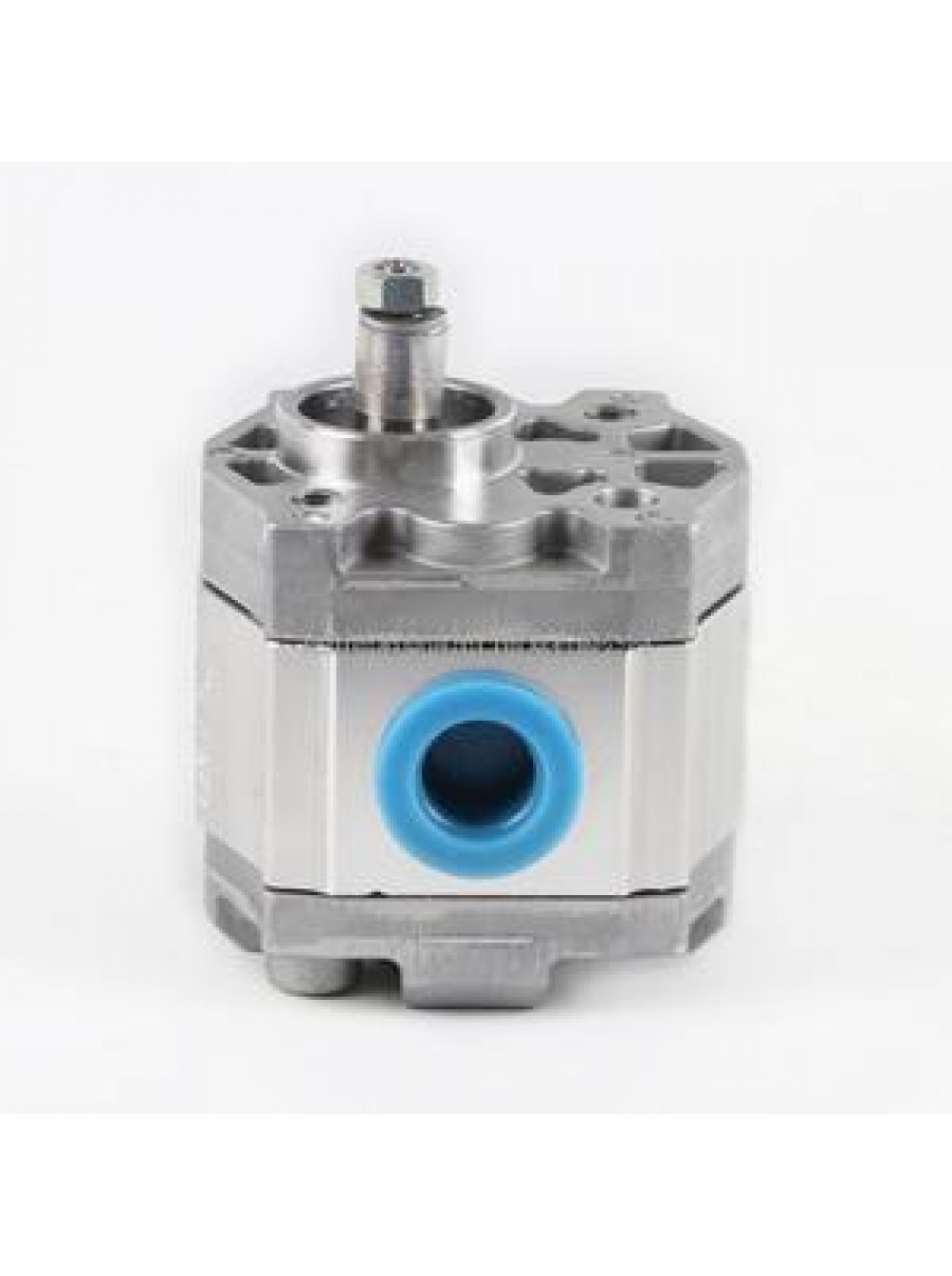

Гидравлический насос Rexroth 0510110017
AZPB-32-2.0RCP02MB
0510110002
| Type of pump | gearpump |
|---|---|
| Number of elements | 1 |
| Type of flange | type C |
| Diameter of flange mounting holes D1 (mm) | 8.5 |
| Total length of pump L1 (mm) | 93.7 |
| Neck diameter D2 (mm) | 32 |
| Type of shaft | type G |
| Distance from flange to end L2 (mm) | 26 |
| Diameter of shaft D3 (mm) | 8.3 |
| Key (way) width W (mm) | 2 |
| Thread type (on shaft) TA2 | M6 |
| Direction of rotation | clockwise |
| Position of suction port 1st element, only for pump type T POS-CO1 | side |
| Type of connections suction port1st element, only for pump type T TY-COa | type E |
| Thread type suction side of 1st element TA-Pa | M18 |
| Position of pressure 1st element, only for pump type T POS-CO2 | side |
| Type of connections pressure 1st element, only for pump type T TY-COb | type E |
| Thread type pressure side of 1st element TA-Pb | M14 |
| Flow control valve present | NO |
| Material of the housing | aluminium |
