Гидронасос Shimadzu SGP1-36L317
111.00 ₽
Описание

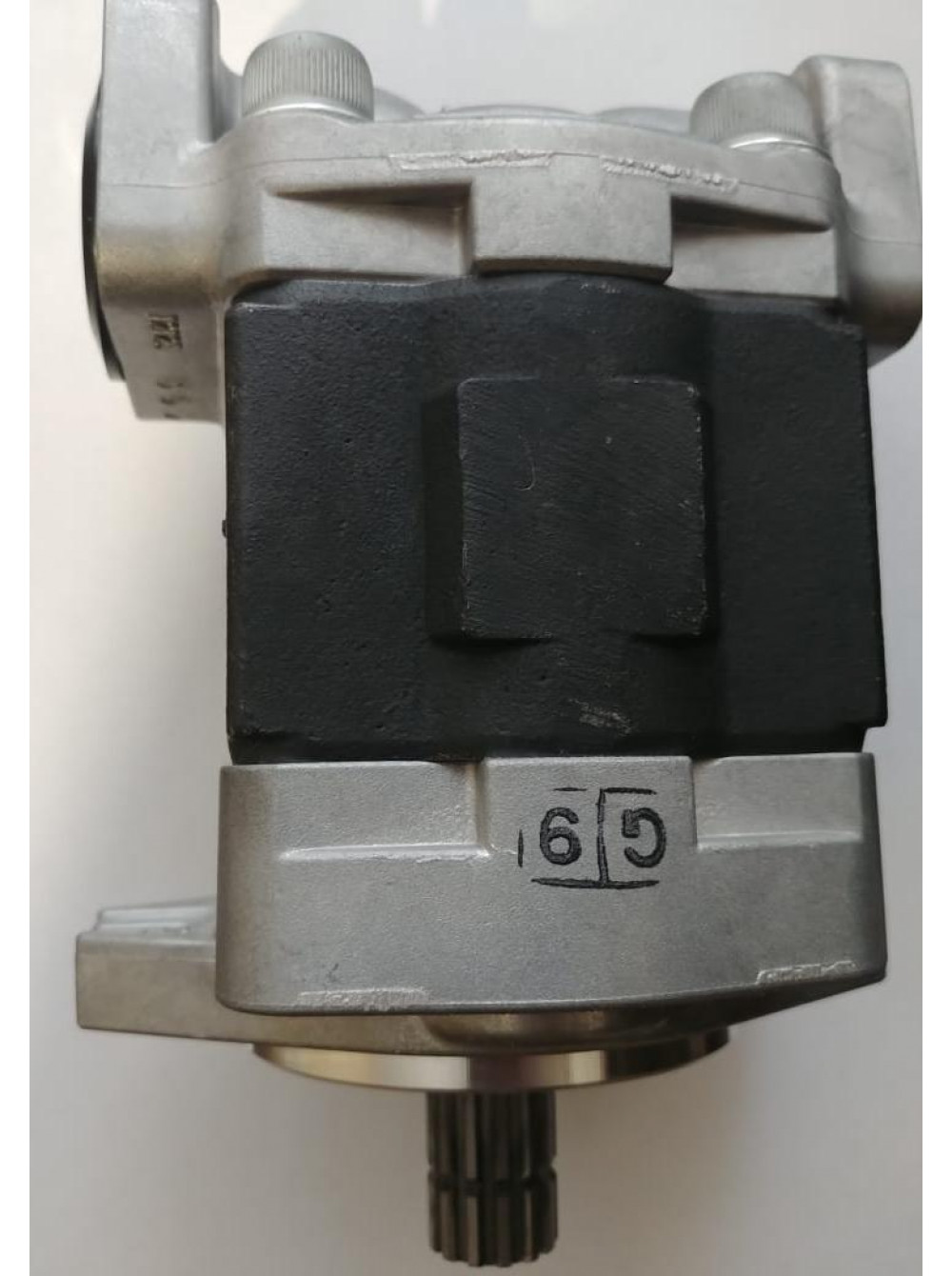

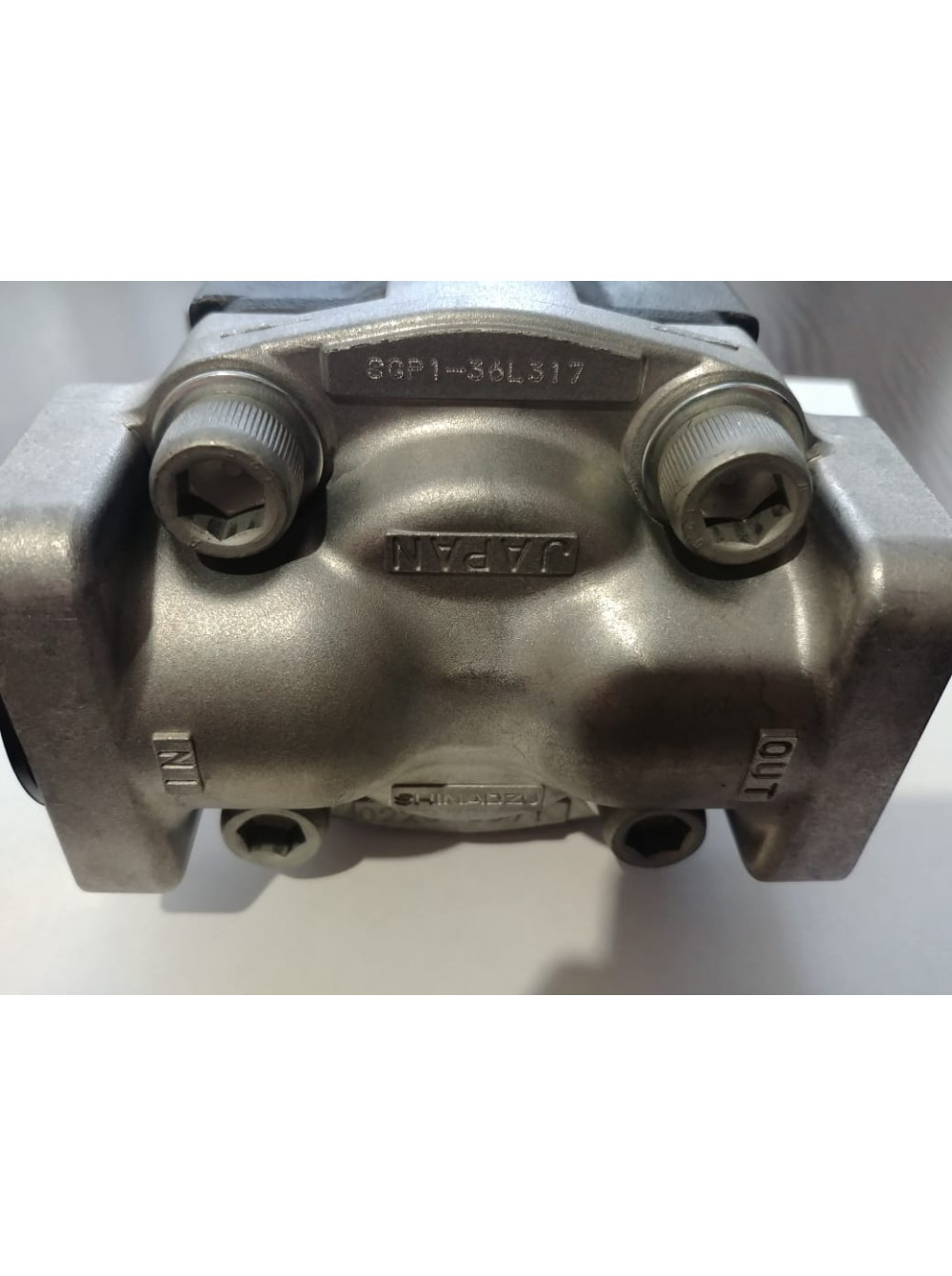

Гидронасос SHIMADZU SGP1-36L317
SGP136L317
SHISGP1-36L317 SHISGP136L317
TCM FD70Z8 FD50Z8 FD60Z8
Type of pump
gearpump
Number of elements
1
Type of flange
type B
Center distance of mounting holes C1 (mm)
106
Total length of pump L1 (mm)
189
Neck diameter D2 (mm)
82
Type of shaft
type D
Distance from flange to end L2 (mm)
41.5
Diameter of shaft D3 (mm)
21.7
Number of splines
13
Direction of rotation
counter clockwise
Position of suction port 1st element, only for pump type T POS-CO1
side
Type of connections suction port1st element, only for pump type T TY-COa
type E
Thread type suction side of 1st element TA-Pa
1 BSP
Position of pressure 1st element, only for pump type T POS-CO2
side
Type of connections pressure 1st element, only for pump type T TY-COb
type E
Thread type pressure side of 1st element TA-Pb
3/4 BSP
Flow control valve present
NO
Material of the housing
metal
Торговая марка: SHIMADZU
Вес (кг): 5,02
