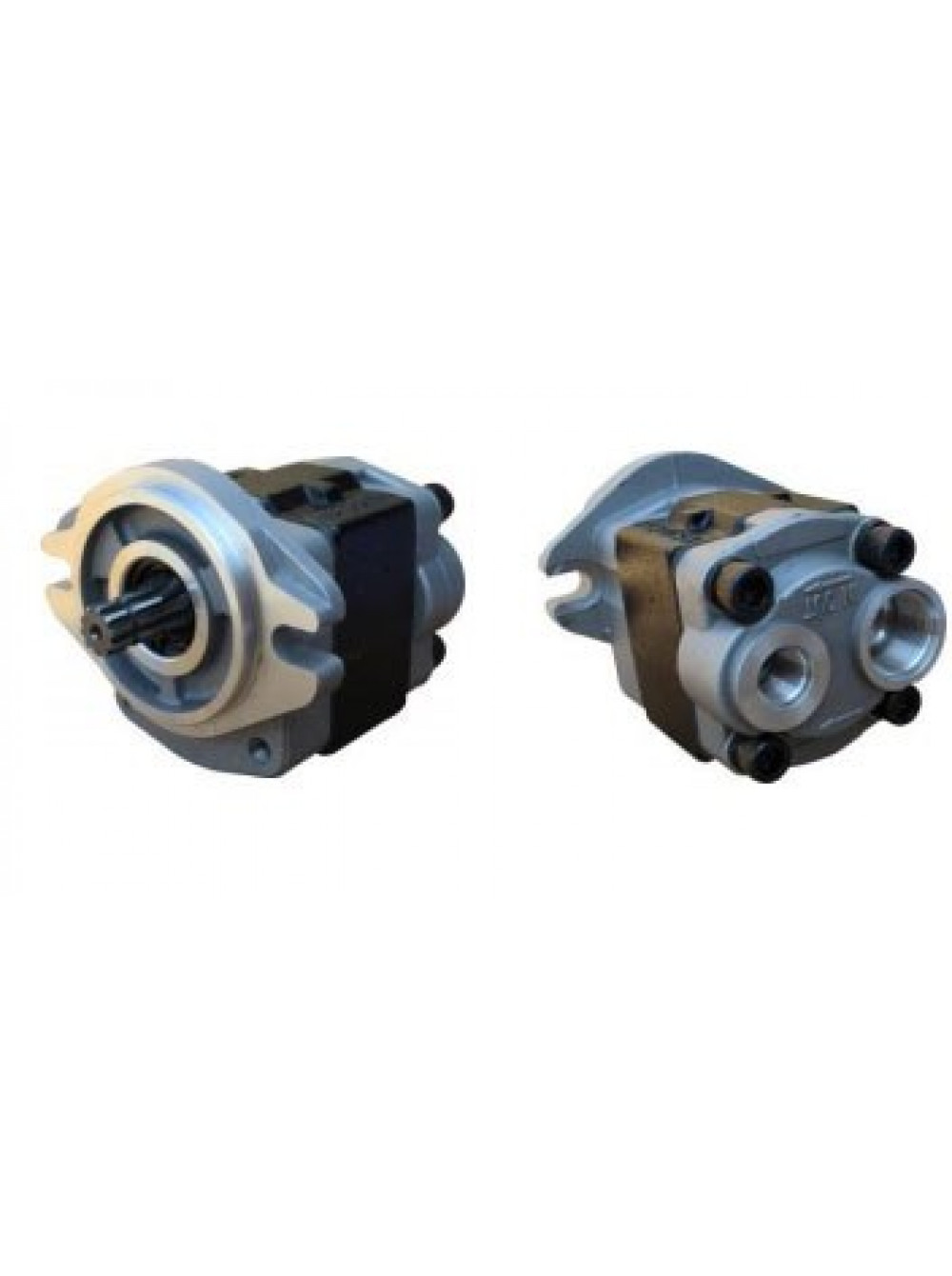

Гидронасос TCM 133A7-10201
111.00 ₽
Описание
Гидронасос TCM 133A7-10201
133A710201
110F7-10271 110F710271
91B71-00100 91B7100100
| Type of pump | gearpump |
|---|---|
| Number of elements | 1 |
| Type of flange | type B |
| Center distance of mounting holes C1 (mm) | 106 |
| Total length of pump L1 (mm) | 160 |
| Neck diameter D2 (mm) | 82.5 |
| Type of shaft | type D |
| Distance from flange to end L2 (mm) | 36 |
| Diameter of shaft D3 (mm) | 17 |
| Number of splines | 10 |
| Direction of rotation | clockwise |
| Position of suction port 1st element, only for pump type T POS-CO1 | rear |
| Type of connections suction port1st element, only for pump type T TY-COa | type E |
| Thread type suction side of 1st element TA-Pa | 1 BSP |
| Position of pressure 1st element, only for pump type T POS-CO2 | rear |
| Type of connections pressure 1st element, only for pump type T TY-COb | type E |
| Thread type pressure side of 1st element TA-Pb | 1/2 BSP |
| Flow control valve present | NO |
| Material of the housing | metal |
TCM FG20-30N5
