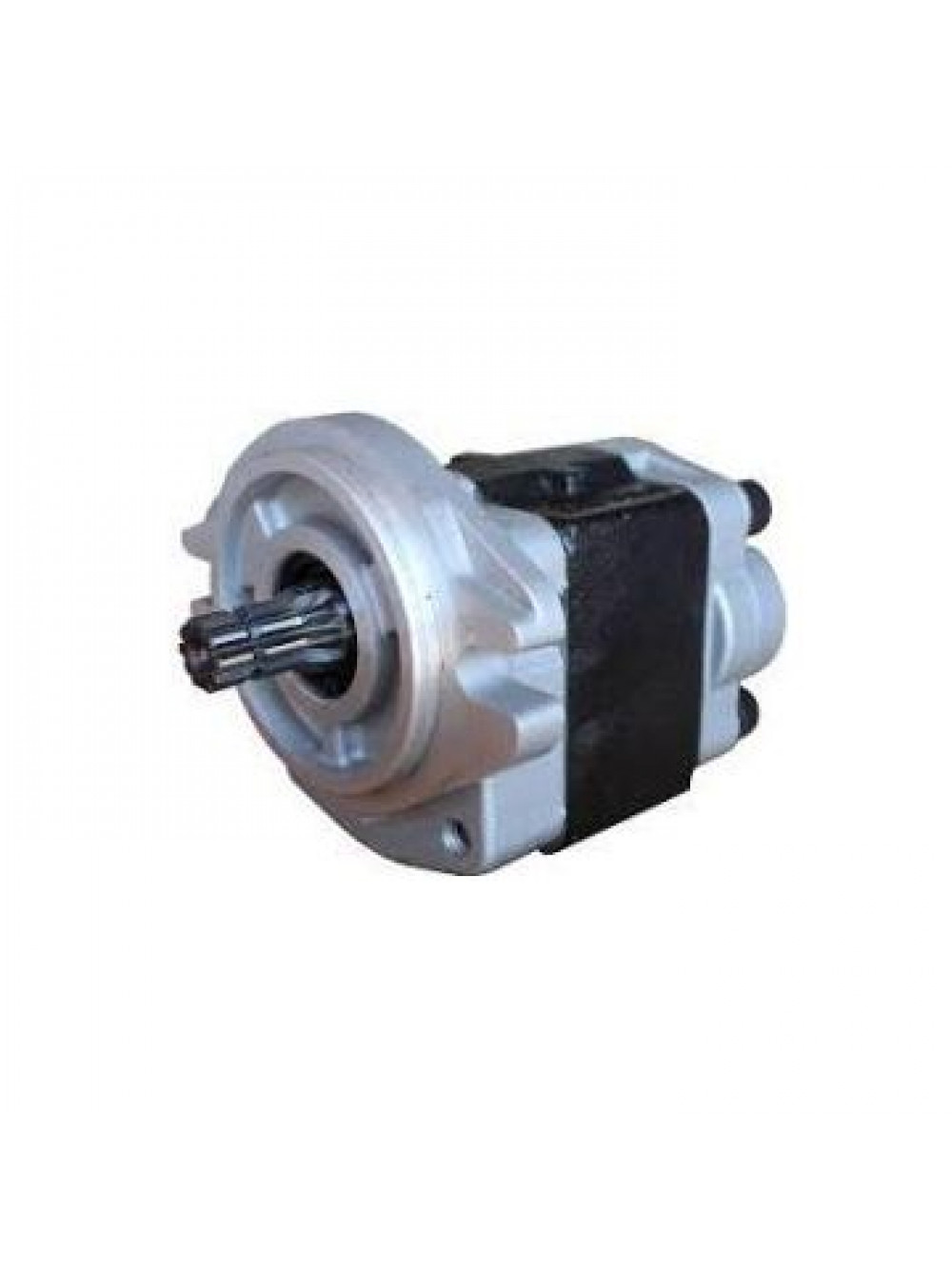

Гидронасос Toyota 67110-23660-71
111.00 ₽
Описание
Гидронасос Toyota 67110-23660-71
67120-16600-71
67120-26650-71
671102366071
671201660071
671202665071
| Type of pump | gearpump |
|---|---|
| Number of elements | 1 |
| Type of flange | type AA |
| Thread type of mounting holes TA1 | M10 |
| Center distance of mounting holes C1 (mm) | 106 |
| Total length of pump L1 (mm) | 163 |
| Neck diameter D2 (mm) | 82.5 |
| Type of shaft | type D |
| Distance from flange to end L2 (mm) | 37 |
| Diameter of shaft D3 (mm) | 17 |
| Number of splines | 10 |
| Direction of rotation | clockwise |
| Position of suction port 1st element, only for pump type T POS-CO1 | rear |
| Type of connections suction port1st element, only for pump type T TY-COa | type E |
| Thread type suction side of 1st element TA-Pa | 1 5/16 UNF |
| Position of pressure 1st element, only for pump type T POS-CO2 | rear |
| Type of connections pressure 1st element, only for pump type T TY-COb | type E |
| Thread type pressure side of 1st element TA-Pb | 7/8 UNF |
| Flow control valve present | NO |
| Material of the housing | metal |
45550-41750-71 P20150A
67110-13600-71 KZP4-23CSMFDD
67110-13620-71 KZP4-25CSMFDD
67110-22020-71 KRP4-23CSSFD
67110-23021-71 KZP4-27-KRP4-5C
67110-23620-71 KZP4-28CSMFDD
67110-23861-71 KZP-28KRP4-5CFDD
67110-30710-71 P20200A
67110-30750-71 P20300AB
67110-30751-71 P20300AK
67110-31310-71 P20350A
67110-31530-71 P20400A
67110-31630-71 P20200AB
67110-32070-71 KZP4-27CSSFDZ
67110-32071-71 KZP4-27CSSDD
67110-32381-71 KFP51100AMSSS
67110-33900-71 KFP5171KP1009CHP
67110-33910-71 KFP5180KP1009CHP
67110-33920-71 KFP5150KP1009CHP
67110-40510-71 TP20200-100C
67110-41920-71 TP20150-080C
67110-9G386-71 P20350AG
67110-9JD40-71 TP20350-100A
67120-00515-71 TP20200-100C
67120-01925-71 TP20150-080C
67120-09125-71 TP20150-080C
67120-09567-71 P20250AK
67120-31530-71 P20250A
67120-9G386-71 P20200AG
67140-40510-71 TP20200-150C
67140-41920-71 TP20150-100C
15847-10301 KFP2233CSBS
14437-1020 KRP4-30CSSB
114A7-11301 KFP2230ASBS
117M7-1032 KFP2232ASBS
129F1-10301 KFP2230CSBS
114B7-10301 KFP2230CSFS
133A7-10201 KFP2228CSBS
114A7-10234 KFP2223CSBS
114A7-10271 KFP2227CSBS
15847-10301 KFP2233CSBS
3917059 KP4163ASSSD
26507-12002 KFP4163CSMSF
26607-12092 KFP4145CSMSF
26687-10021 KFP4156CSMSF
26707-12003A KFP51100CSMFDX
26437-12012B KFP5171CSMSF
26607-12013A KFP5180KP1013C
