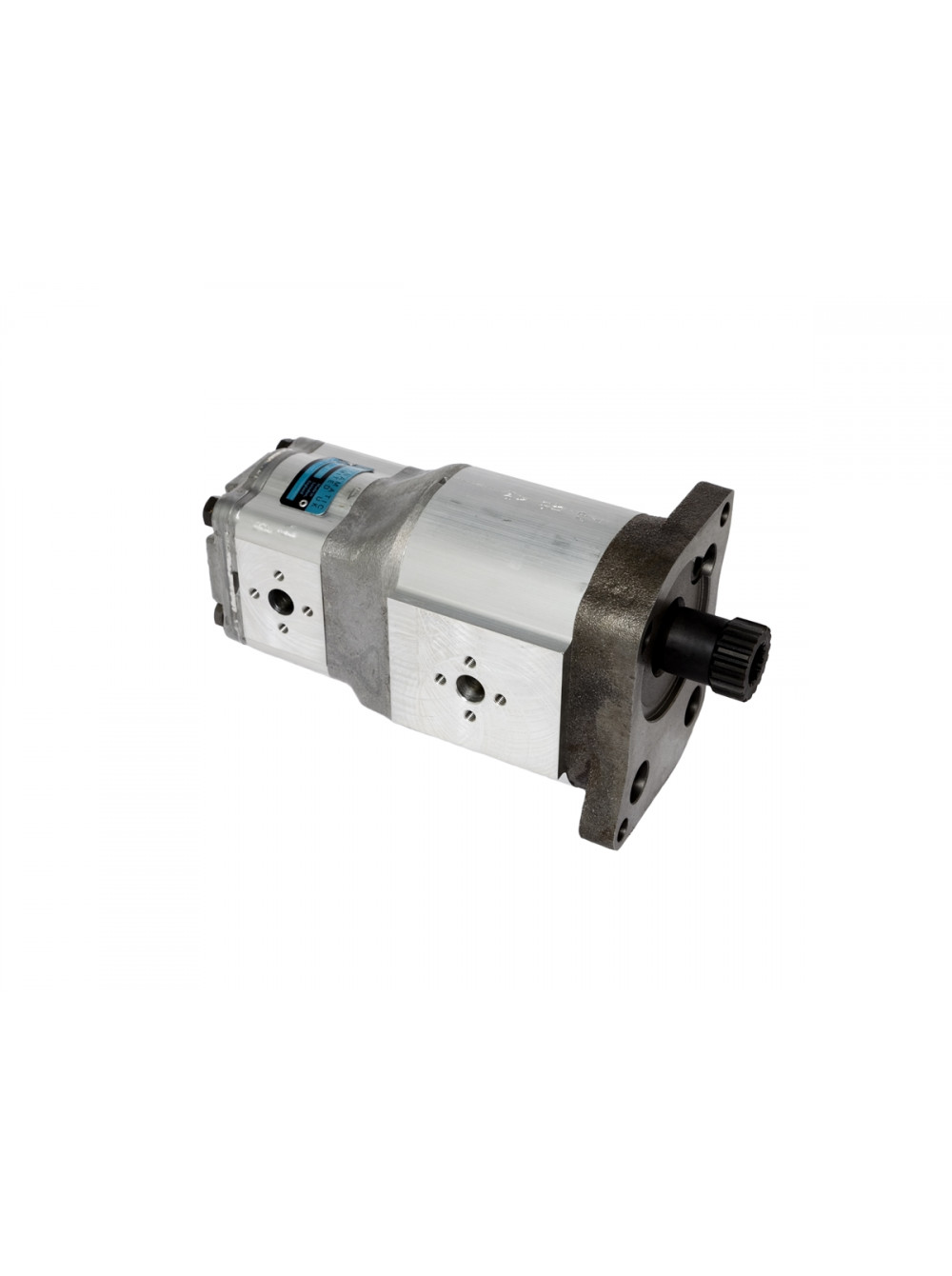

Гидронасос Valmet 31852330

Гидронасос Valmet VALTRA 31852330 SISU

33564400

A25/813L33026

Type of pump

gearpump

Number of elements

2

Type of flange

special

Diameter of flange mounting holes D1 (mm)

11

Total length of pump L1 (mm)

258.5

Type of shaft

type D

Distance from flange to end L2 (mm)

31.4

Diameter of shaft D3 (mm)

19.7

Number of splines

14

Direction of rotation

counter clockwise

Position of suction port 1st element, only for pump type T POS-CO1

side

Type of connections suction port1st element, only for pump type T TY-COa

special

Thread type of connections suction 1st element

M8

Position of pressure 1st element, only for pump type T POS-CO2

side

Type of connections pressure 1st element, only for pump type T TY-COb

type B

Thread type of connection pressure port 1st element TA-COb

M6

Center distance between mounting holes C-CO1b (mm)

30

Position of pressure port 2nd element, only for pump type T POS-CO4

side

Type of connections pressure port 2nd element, only for pump type T TY-COd

type B

Flow control valve present

NO

Material of the housing

aluminium

Вес (кг): 8,9
