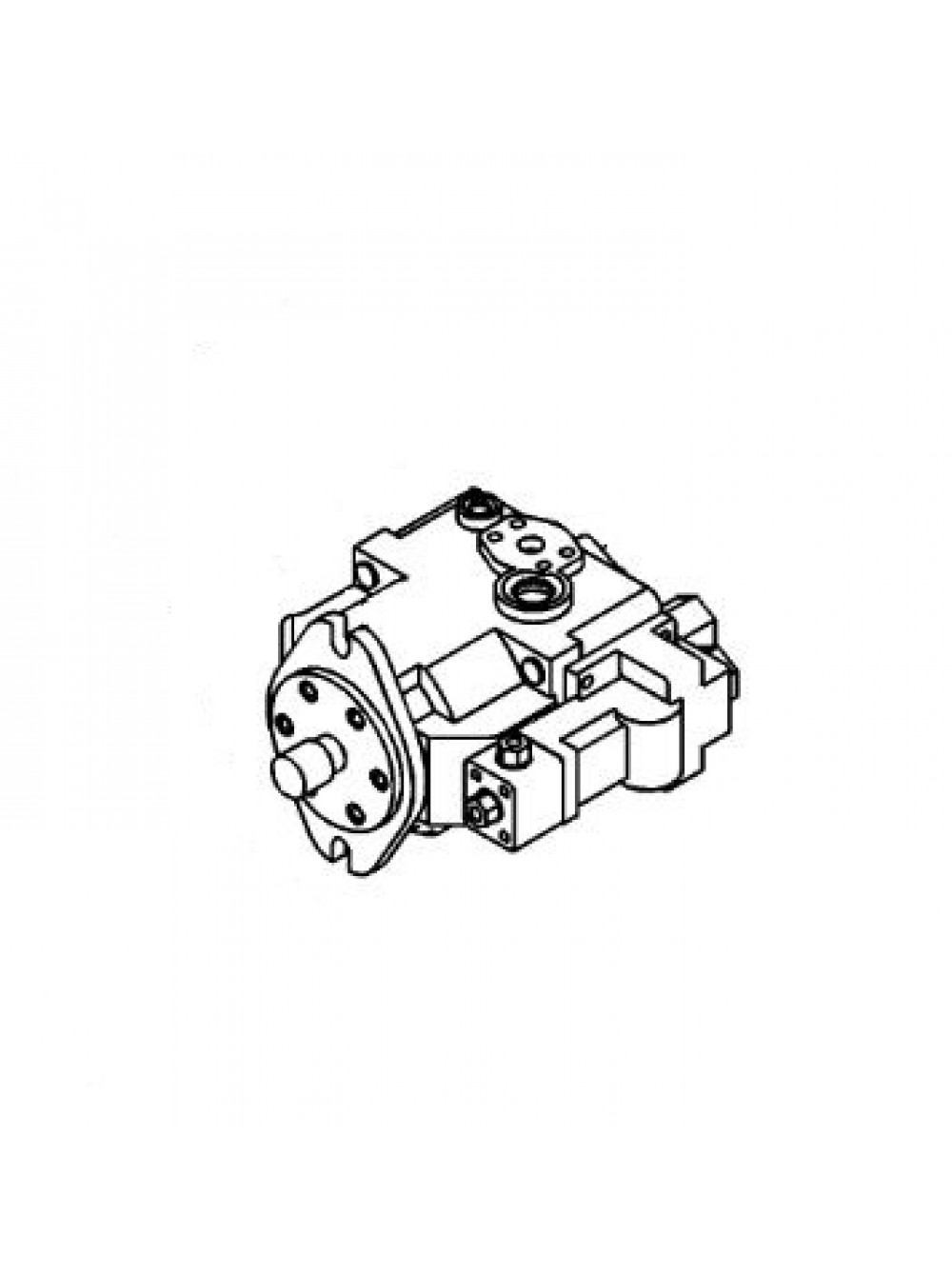

Гидронасос Volvo 14516405

Гидронасос Volvo 14516405

VOE14516405

Type of pump

plunger pump

Number of elements

2

Type of flange

type B

Center distance of mounting holes C1 (mm)

181

Total length of pump L1 (mm)

343

Neck diameter D2 (mm)

127

Type of shaft

type D

Distance from flange to end L2 (mm)

55

Diameter of shaft D3 (mm)

31.2

Number of splines

14

Direction of rotation

clockwise

Thread type of connections suction 1st element

M12

Center distance between mounting holes C-CO1a (mm)

42.9

Center distance between mounting holes C-CO2a (mm)

77.8

Thread type of connection pressure port 1st element TA-COb

M10

Center distance between mounting holes C-CO1b (mm)

26

Center distance between mounting holes C-CO2b (mm)

51

Thread type pressure side of 2nd element TA-Pd

3/8 BSP

Flow control valve present

YES

Biggest Thread type valve TA3

1/2 BSP

Material of the housing

aluminium and metal

Вес (кг): 39

ECR58
