Аксиально-поршневой мотор A2FM-6x
60,000.00 ₽
Аксиально-поршневой мотор A10FM-52
60,000.00 ₽

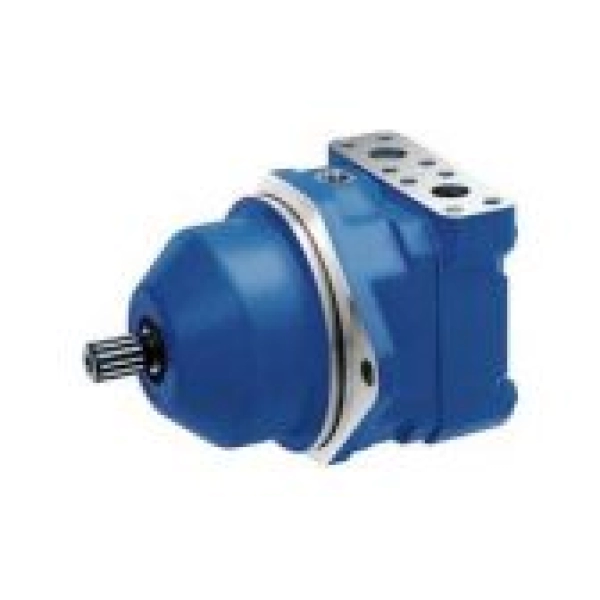

Аксиально-поршневой мотор A10FE
60,000.00 ₽
10 в наличии
10 в наличии
Описание
Технические характеристики
- Двигатель среднего давления для интеграции в механические коробки передач
- Размер 10 … 63
- Номинальное давление 280 бар
- Максимальное давление 350 бар
- Открытый и закрытый контур
| Размер | 10 | 11 | 14 | 16 | 18 | 23 | |||
|---|---|---|---|---|---|---|---|---|---|
| водоизмещение | V g | cm³ | 10,6 | 11,5 | 14,1 | 16,1 | 18 | +23,5 | |
| Номинальное давление | P nom | бар | 280 | 280 | 280 | 280 | 280 | 280 | |
| Максимальное давление | P max | бар | 350 | 350 | 350 | 350 | 350 | 350 | |
| Максимальная скорость 1) | N nom | оборотов в минуту | 5000 | 4200 | 4200 | 4200 | 4200 | 4900 | |
| Входной поток | В n nom | Q V | л / мин | 53 | 48 | 59 | 68 | 76 | 115 |
| Мощность | В n nom и p nom | п | кВт | 24,7 | 22,5 | 27,6 | 31,6 | 35,3 | 53,6 |
| крутящий момент | В номинации | M | Nm | 47 | 51 | 63 | 72 | 80 | 105 |
| Вес (приблизительно) | м | кг | 5 | 6,5 | 6,5 | 6,5 | 6,5 | 12 | |
| Размер | 28 | 37 | 45 | 58 | 63 | |||
|---|---|---|---|---|---|---|---|---|
| водоизмещение | V g | cm³ | 28,5 | 36,7 | 44,5 | 58 | 63,1 | |
| Номинальное давление | P nom | бар | 280 | 280 | 280 | 280 | 280 | |
| Максимальное давление | P max | бар | 350 | 350 | 350 | 350 | 350 | |
| Максимальная скорость 1) | N nom | оборотов в минуту | 4700 | 4200 | 4000 | 3600 | 3400 | |
| Входной поток | В n nom | Q V | л / мин | 134 | 154 | 178 | 209 | 215 |
| Мощность | В n nom и p nom | п | кВт | 62,5 | 71,8 | 83,1 | 97,4 | 100,1 |
| крутящий момент | В номинации | M | Nm | 127 | 163 | 198 | 258 | 281 |
| Вес (приблизительно) | м | кг | 12 | 17 | 17 | 22 | 22 | |
Заказной код
| Артикул | Наименование |
|---|---|
| R902449895 | A A10F E 10 /52L-VCH16N002 |
| R902434556 | A A10F E 10 /52R-VCC66N002 |
| R902410452 | A A10F E 10 /52R-VCC66X -SO797 |
| R902431741 | A A10F E 10 /52R-VCH16N002 |
| R902437575 | A A10F E 11 /52R-VCC16N002 |
| R902437685 | A A10F E 11 /52R-VCC16N002 |
| R902437381 | A A10F E 11 /52R-VCC66N002 |
| R902443736 | A A10F E 11 /52W-VCH16N000 |
| R902431827 | A A10F E 11 /52W-VKH16N000 -S1066 |
| R902485256 | A A10F E 14 /52W-VCC16N000 |
| R910985061 | A A10F E 14 /52L-VCH16N002 |
| R902431991 | A A10F E 14 /52L-VKH16N002 |
| R902447764 | A A10F E 14 /52R-VCC16N002 -S1274 |
| R910996074 | A A10F E 14 /52R-VCH16N002 |
| R902448973 | A A10F E 14 /52R-VCH16N002 -SO729 |
| R902431988 | A A10F E 14 /52R-VCH66N002 |
| R902488082 | A A10F E 16 /52L-VCC66N002 |
| R902416462 | A A10F E 16 /52R-VCC66X -S1274 |
| R902438714 | A A10F E 16 /52W-VCC66N000 |
| R902480418 | A A10F E 18 /52W-VCC16N000 -S3046 |
| R902431987 | A A10F E 18 /52L-VCH16N002 |
| R902456078 | A A10F E 18 /52L-VCH66N002 |
| R902433337 | A A10F E 18 /52L-VKH16N002 |
| R902541804 | A A10F E 18 /52R-VCC16N002 -S3046 |
| R902417263 | A A10F E 18 /52R-VCC66X -S1274 |
| R902443785 | A A10F E 18 /52R-VCH16N002 |
| R902431832 | A A10F E 18 /52R-VCH16N002 -S1066 |
| R902435502 | A A10F E 18 /52R-VCH66N002 |
| R902412300 | A A10F E 18 /52R-VKH16N002 |
| R902432082 | A A10F E 18 /52W-VCH16N000 |
| R902431828 | A A10F E 18 /52W-VCH16N000 -S1066 |
| R902455824 | A A10F E 18 /52W-VCH16N000D -S2284 |
| R902438897 | A A10F E 18 /52W-VCH16N000M -S1066 |
| R902439404 | A A10F E 18 /52W-VCH66N000 |
| R910973910 | A A10F E 18 /52W-VKH16N000 |
| R902439090 | A A10F E 18 /52W-VRH66N000 |
| R902407926 | A A10F E 23 /52L-VCF10N000 -S1136 |
| R902434536 | A A10F E 23 /52L-VCF10N002 |
| R910989636 | A A10F E 23 /52L-VCF10N002 -SO726 |
| R902444672 | A A10F E 23 /52R-VCF10N002 |
| R910990347 | A A10F E 23 /52R-VCF10N002 -S3047 |
| R910988746 | A A10F E 23 /52W-PCF10N000 -SO726 |
| R910988632 | A A10F E 23 /52W-PCF10N000 -SO728 |
| R902448465 | A A10F E 23 /52W-VCF10N000 -S1066 |
| R902437382 | A A10F E 23 /52W-VCF10N000M -S1066 |
| R902416954 | A A10F E 23 /52W-VCF60N000 |
| R902402233 | A A10F E 23 /52W-VRF10N000 |
| R902453136 | A A10F E 25 /52R-VCF10N002 |
| R902430463 | A A10F E 28 /52L-VCF10N000 -S1717 |
| R902415754 | A A10F E 28 /52L-VCF10N002 |
| R902447664 | A A10F E 28 /52L-VCF16N002 -SO726 |
| R902450433 | A A10F E 28 /52R-VCF10N002 |
| R902541902 | A A10F E 28 /52R-VCF10N002 |
| R910991903 | A A10F E 28 /52R-VCF10N002 -S3047 |
| R902453837 | A A10F E 28 /52R-VCF16N002 -SO726 |
| R902437932 | A A10F E 28 /52R-VCF60N002 |
| R910986300 | A A10F E 28 /52W-PCF10N000 -SO728 |
| R902415752 | A A10F E 28 /52W-VCF10N000 |
| R902452641 | A A10F E 28 /52W-VCF10N000 -S2180 |
| R902420900 | A A10F E 28 /52W-VCF10N000 -S3048 |
| R902549285 | A A10F E 28 /52W-VCF10N000I |
| R902455542 | A A10F E 28 /52W-VCF10N000M |
| R902406646 | A A10F E 28 /52W-VCF60N000 |
| R902438309 | A A10F E 28 /52W-VCF66N000 |
| R902443036 | A A10F E 28 /52W-VCF66N000 JD |
| R902411931 | A A10F E 28 /52W-VCF95N000 |
| R902449346 | A A10F E 28 /52W-VRF10N000 |
| R902417481 | A A10F E 28 /52W-VRF60B000 -S1358 |
| R902407894 | A A10F E 28 /52W-VRF60N000 |
| R902416804 | A A10F E 28 /52W-VRF60N000H -S1347 |
| R902402029 | A A10F E 28 /52W-VRF68B020 |
| R902478287 | A A10F E 32 /52W-VCF10N000 -S1437 |
| R902405830 | A A10F E 37 /52L-VCF10N000 -S1034 |
| R902433674 | A A10F E 37 /52L-VCF10N002 |
| R902444794 | A A10F E 37 /52L-VCF10N002 -S1437 |
| R902439382 | A A10F E 37 /52R-VCF10N002 |
| R902429035 | A A10F E 37 /52R-VCF10N002 -S1437 |
| R902410107 | A A10F E 37 /52W-VCF10N000 |
| R902429036 | A A10F E 37 /52W-VCF10N000 -S1437 |
| R910996150 | A A10F E 37 /52W-VRF60B000 -SO932 |
| R902425372 | A A10F E 37 /52W-VRF60N000 -SO163 |
| R902402113 | A A10F E 37 /52W-VRF66N007 |
| R902403924 | A A10F E 37 /52W-VRF66N007 -S1081 |
| R902406817 | A A10F E 39 /52R-VCF60N002 |
| R910988231 | A A10F E 42 /52W-PRF10N000 -SO687 |
| R902410936 | A A10F E 45 /5*UNGUEL***00 -S1209 |
| R910990351 | A A10F E 45 /52L-PCF60N000 -SO799 |
| R902445066 | A A10F E 45 /52L-VCF10N002 |
| R902448870 | A A10F E 45 /52L-VCF10N002F |
| R902449693 | A A10F E 45 /52L-VCF10N002F *PT* |
| R910989627 | A A10F E 45 /52R-PCF60N000 -SO799 |
| R902429032 | A A10F E 45 /52R-VCF10N000 -S1681 |
| R902434410 | A A10F E 45 /52R-VCF10N002 |
| R902406812 | A A10F E 45 /52R-VCF60N002 |
| R910997244 | A A10F E 45 /52W-VCF10N000 |
| R902437216 | A A10F E 45 /52W-VCF10N000 -S1437 |
| R902429030 | A A10F E 45 /52W-VCF10N000 -S1680 |
| R902401796 | A A10F E 45 /52W-VCF60N000 |
| R902435951 | A A10F E 45 /52W-VCF60N000 -S1437 |
| R902437682 | A A10F E 45 /52W-VCF60N000 -S1884 |
| R902401794 | A A10F E 45 /52W-VCF95N000 |
| R902405076 | A A10F E 45 /52W-VRF60N000 |
| R902407389 | A A10F E 45 /52W-VRF60N000 -SO163 |
| R902500109 | A A10F E 45 /52W-VRF60N007 |
| R902404014 | A A10F E 45 /52W-VRF60N007 -S1081 |
| R902408628 | A A10F E 45 /52W-VRF60N007 -SO163 |
| R902435844 | A A10F E 45 /52W-VRF66N000 -SO163 |
| R902402317 | A A10F E 45 /52W-VRF68B020 |
| R902414034 | A A10F E 45 /52W-VRF95N000 |
| R902414123 | A A10F E 45 /52W-VRF95N000 -SO163 |
| R902543341 | A A10F E 58 /52W-VCF10N000 |
| R902489611 | A A10F E 58 /52W-VCF10N000D |
| R902519487 | A A10F E 58 /52W-VRF10N000 |
| R902488875 | A A10F E 63 /52W-VCF66N000 -S3286 |
| R902562878 | A A10F M 28 /52W-VRC60B000 -S1358 |
| R910984216 | A AA10F E 42 /52W-PRF60N007 -SO687 |
| R910984219 | A AA10F E 45 /52W-PRF60N007 -SO687 |
| R902495615 | AL A10F E 5 /52L-VCC66N002 -S3524 |
| R902561639 | AL A10F E 8 /52R-VKH66N002 -S1066 |
| R902561640 | AL A10F E 9 /52R-VKH66N002 -S1066 |
| R902543342 | AL A10F E 10 /52R-VCC16N002 |
| R992000955 | AL A10F E 10 /52R-VCC66N002D -SO727 |
| R902480302 | AL A10F E 10 /52R-VCC66N002D -SO727 |
| R986110554 | AL A10F E 10 /52R-VCC66X -SO797 |
| R902409024 | AL A10F E 10 /52R-VCC66X -SO797 |
| R992000680 | AL A10F E 10 /52R-VCC66X -SO797 |
| R902431742 | AL A10F E 10 /52R-VCH16N002 |
| R992000758 | AL A10F E 10 /52R-VCH16N002 |
| R902541900 | AL A10F E 10 /52W-VCC16N000 |
| R986120036 | AL A10F E 10 /52R-VCC66X -SO797 REMAN |
| R902540410 | AL A10F E 11 /52R-VKH16N002 -S1066 |
| R902543265 | AL A10F E 11 /52R-VKH66N002 -S1066 |
| R902556552 | AL A10F E 11 /52W-VCH16N000 |
| R902410142 | AL A10F E 11 /52W-VKH16N000 -S1066 |
| R992000685 | AL A10F E 11 /52W-VKH16N000 -S1066 |
| R902493541 | AL A10F E 11 /52R-VCC16N002 |
| R902549755 | AL A10F E 11 /52R-VCC16N002 |
| R902485255 | AL A10F E 14 /52W-VCC16N000 |
| R902404427 | AL A10F E 14 /52L-VKH16N002 |
| R902423427 | AL A10F E 14 /52R-VCH16N002 |
| R902423734 | AL A10F E 14 /52R-VCH66N002 |
| R992000924 | AL A10F E 14 /52R-VKH16N002 -S1066 |
| R902471546 | AL A10F E 14 /52R-VKH16N002 -S1066 |
| R902494303 | AL A10F E 14 /52W-VCC66N000 |
| R902548943 | AL A10F E 14 /52L-VCC16N002 |
| R902539584 | AL A10F E 14 /52R-VCC16N002 |
| R902493796 | AL A10F E 14 /52R-VCC16N002 -SO729 |
| R902416461 | AL A10F E 16 /52R-VCC66X -S1274 |
| R992000702 | AL A10F E 16 /52R-VCC66X -S1274 |
| R986110564 | AL A10F E 16 /52R-VCC66X -S1274 |
| R902550425 | AL A10F E 16 /52R-VCH16N002 |
| R902546025 | AL A10F E 16 /52R-VKH16N002 -S1066 |
| R902438747 | AL A10F E 16 /52W-VCC66N000 |
| R902556551 | AL A10F E 16 /52W-VCH16N000 |
| R902463562 | AL A10F E 16 /52W-VCH16N000 -S2446 |
| R986120047 | AL A10F E 16 /52R-VCC66X -S1274 REMAN |
| R902488173 | AL A10F E 18 /52W-VCC16N000 |
| R902419397 | AL A10F E 18 /52L-VCH16N002 |
| R902430351 | AL A10F E 18 /52L-VKH16N002 |
| R902482721 | AL A10F E 18 /52R-VCC66N002 -S2884 |
| R992000959 | AL A10F E 18 /52R-VCC66N002 -S2884 |
| R902417262 | AL A10F E 18 /52R-VCC66X -S1274 |
| R902449166 | AL A10F E 18 /52R-VCH16N002 |
| R992000831 | AL A10F E 18 /52R-VCH16N002 |
| R902560552 | AL A10F E 18 /52R-VCH16N002 |
| R902431829 | AL A10F E 18 /52R-VCH16N002 -S1066 |
| R902423730 | AL A10F E 18 /52R-VCH66N002 |
| R902451767 | AL A10F E 18 /52R-VKH16N002 |
| R902484154 | AL A10F E 18 /52W-VCC66N000 |
| R902460080 | AL A10F E 18 /52W-VCC66N000 -S2347 |
| R992000883 | AL A10F E 18 /52W-VCC66N000 -S2347 |
| R902433443 | AL A10F E 18 /52W-VCH16N000 |
| R986110548 | AL A10F E 18 /52W-VCH16N000 -S1066 |
| R902403553 | AL A10F E 18 /52W-VCH16N000 -S1066 |
| R992000666 | AL A10F E 18 /52W-VCH16N000 -S1066 |
| R902463563 | AL A10F E 18 /52W-VCH16N000 -S2446 |
| R902455823 | AL A10F E 18 /52W-VCH16N000D -S2284 |
| R902438898 | AL A10F E 18 /52W-VCH16N000M -S1066 |
| R902451261 | AL A10F E 18 /52W-VCH66N000 |
| R992001051 | AL A10F E 18 /52W-VKH16N000 |
| R910975192 | AL A10F E 18 /52W-VKH16N000 |
| R902554669 | AL A10F E 18 /52L-VCC16N002 |
| R902554670 | AL A10F E 18 /52R-VCC16N002 |
| R902539750 | AL A10F E 18 /52R-VCC16N002 -SO729 |
| R902407925 | AL A10F E 23 /52L-VCF10N000 -S1136 |
| R902515467 | AL A10F E 23 /52L-VCF10N002 |
| R910995184 | AL A10F E 23 /52L-VCF10N002 -SO726 |
| R902484131 | AL A10F E 23 /52R-VCF10N002 |
| R902414131 | AL A10F E 23 /52R-VCF10N002 -S3047 |
| R902544094 | AL A10F E 23 /52R-VCF16N002 |
| R910989340 | AL A10F E 23 /52W-PCF10N00 -SO726 |
| R902476655 | AL A10F E 23 /52W-VCF10N000 |
| R902547578 | AL A10F E 23 /52W-VCF10N000 |
| R902437441 | AL A10F E 23 /52W-VCF10N000 -S1066 |
| R992001328 | AL A10F E 23 /52W-VCF10N000 -S1066 |
| R902546434 | AL A10F E 23 /52W-VCF10N000-SO481 |
| R902551824 | AL A10F E 23 /52W-VCF10N000D |
| R902504253 | AL A10F E 23 /52W-VCF66N000 -S1066 |
| R902430462 | AL A10F E 28 /52L-VCF10N000 -S1717 |
| R902415753 | AL A10F E 28 /52L-VCF10N002 |
| R902447663 | AL A10F E 28 /52L-VCF16N002 -SO726 |
| R902555322 | AL A10F E 28 /52L-VCF66N002 -S4917 |
| R902502600 | AL A10F E 28 /52L-VCF66N002D -S3054 |
| R902505791 | AL A10F E 28 /52L-VCF66N002D -S4632 |
| R902561991 | AL A10F E 28 /52R-VCF10N002 |
| R902428036 | AL A10F E 28 /52R-VCF10N002 -S3047 |
| R902562345 | AL A10F E 28 /52R-VCF10N002 -SO481 |
| R902492703 | AL A10F E 28 /52R-VCF10N002 -SO481 |
| R902453757 | AL A10F E 28 /52R-VCF16N002 -SO726 |
| R902501278 | AL A10F E 28 /52R-VCF66N002 |
| R902502541 | AL A10F E 28 /52R-VCF66N002D -S3054 |
| R902415751 | AL A10F E 28 /52W-VCF10N000 |
| R902534824 | AL A10F E 28 /52W-VCF10N000 |
| R902455543 | AL A10F E 28 /52W-VCF10N000 -S1842 |
| R902420909 | AL A10F E 28 /52W-VCF10N000 -S2180 |
| R902497341 | AL A10F E 28 /52W-VCF10N000 -SO481 |
| R902406645 | AL A10F E 28 /52W-VCF60N000 |
| R902504508 | AL A10F E 28 /52W-VCF60N000 |
| R902464087 | AL A10F E 28 /52W-VCF66N000 |
| R902406191 | AL A10F E 28 /52W-VCF66N000 JD |
| R902502536 | AL A10F E 28 /52W-VCF66N000D -S3054 |
| R902418610 | AL A10F E 28 /52W-VCF95N000 |
| R902444793 | AL A10F E 37 /52L-VCF10N002 -S1437 |
| R902469619 | AL A10F E 37 /52R-VCF10N002 |
| R902429034 | AL A10F E 37 /52R-VCF10N002 -S1437 |
| R992000740 | AL A10F E 37 /52R-VCF10N002 -S1437 |
| R902547525 | AL A10F E 37 /52R-VCF10N002 -SO481 |
| R902410108 | AL A10F E 37 /52W-VCF10N000 |
| R902429037 | AL A10F E 37 /52W-VCF10N000 -S1437 |
| R992000741 | AL A10F E 37 /52W-VCF10N000 -S1437 |
| R902496328 | AL A10F E 37 /52W-VCF10N000D |
| R902402111 | AL A10F E 37 /52W-VRF66N007 |
| R902403945 | AL A10F E 37 /52W-VRF66N007 -S1081 |
| R902503157 | AL A10F E 40 /52W-VCC66N000D -S3135 |
| R992000879 | AL A10F E 45 /52L-VCF10N002 -S1437 |
| R902459434 | AL A10F E 45 /52L-VCF10N002 -S1437 |
| R902553921 | AL A10F E 45 /52L-VCF66N002 |
| R902429033 | AL A10F E 45 /52R-VCF10N000 -S1681 |
| R910990645 | AL A10F E 45 /52W-PRF60N007 -SO687 |
| R910997241 | AL A10F E 45 /52W-VCF10N000 |
| R902534832 | AL A10F E 45 /52W-VCF10N000 |
| R902437373 | AL A10F E 45 /52W-VCF10N000 -S1437 |
| R992000783 | AL A10F E 45 /52W-VCF10N000 -S1437 |
| R902470265 | AL A10F E 45 /52W-VCF10N000 -S1437 |
| R902429031 | AL A10F E 45 /52W-VCF10N000 -S1680 |
| R902481098 | AL A10F E 45 /52W-VCF10N000D |
| R902547163 | AL A10F E 45 /52W-VCF10N000U |
| R902401259 | AL A10F E 45 /52W-VCF60N000 |
| R902406063 | AL A10F E 45 /52W-VCF60N000 -S1437 |
| R902437684 | AL A10F E 45 /52W-VCF60N000 -S1884 |
| R902417713 | AL A10F E 45 /52W-VCF95N000 |
| R902505540 | AL A10F E 45 /52W-VCF95N000 |
| R902404015 | AL A10F E 45 /52W-VRF60N007 -S1081 |
| R902480029 | AL A10F E 58 /52R-VCF10N002 |
| R902544442 | AL A10F E 58 /52R-VCF10N002 |
| R902537797 | AL A10F E 58 /52W-VCF10N000 |
| R902481097 | AL A10F E 58 /52W-VCF10N000D |
| R902504469 | AL A10F E 63 /52L-VCF10N002 -S3763 |
| R902505537 | AL A10F E 63 /52L-VCF10N002 -S4455 |
| R902540777 | AL A10F E 63 /52R-VCF10N002 |
| R902541576 | AL A10F E 63 /52W-VCF10N000 |
| R902515509 | AL A10FE 14 /52W-VRC16N007U -S3901 |
| R986120030 | ALA10FE18/52W-VCH16N000-S1066 REMAN |
| R910986302 | ALAA10F E 28 /52W-PCF10N00 -SO728 |
