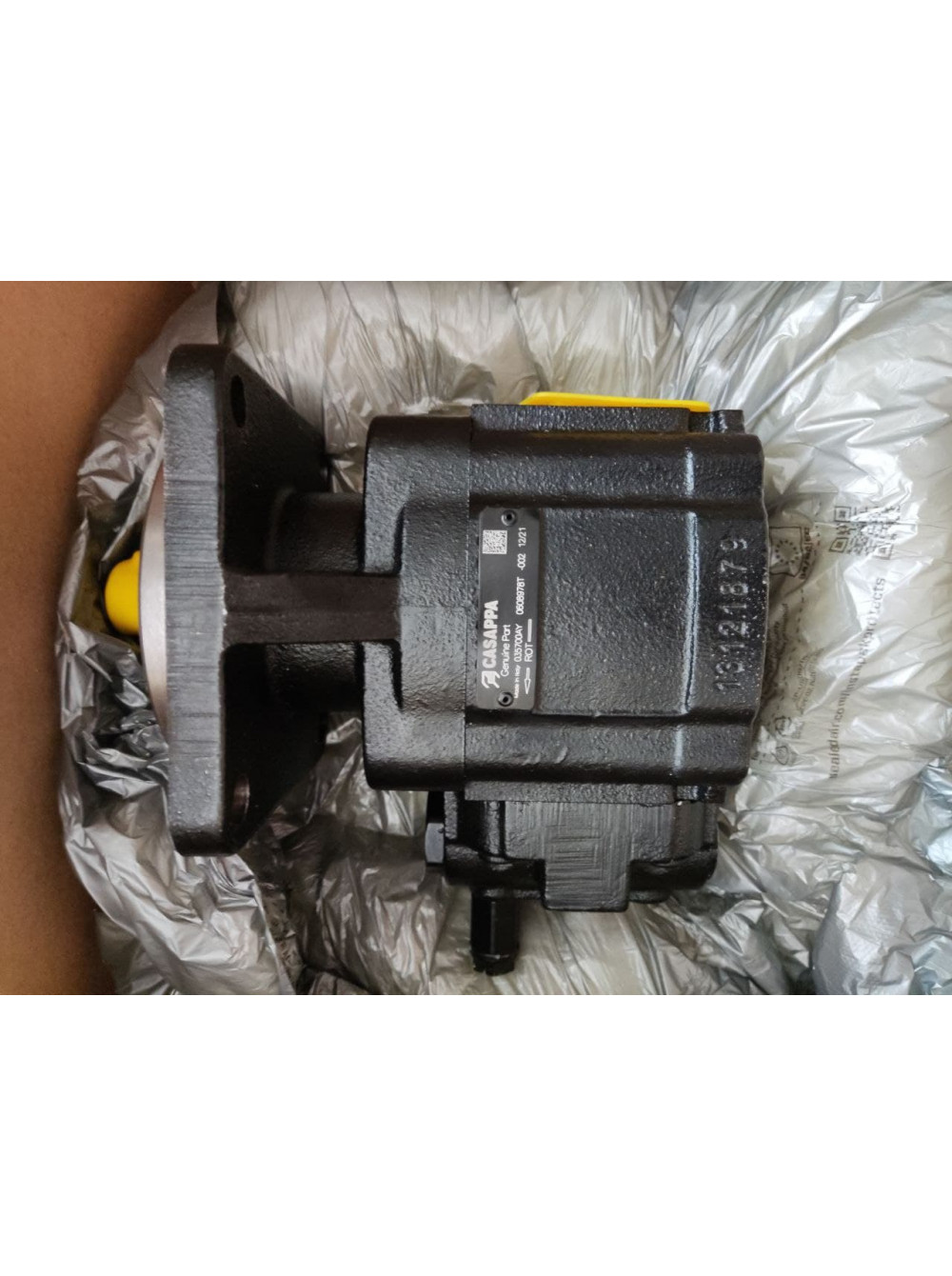

Гидравлический насос Casappa 03580750

Гидравлический насос Casappa 03580750

0608978T 035700AY

New Holland 85816134

Type of pump

gearpump

Number of elements

1

Type of flange

type G

Diameter of flange mounting holes D1 (mm)

14.2

Center distance of mounting holes C1 (mm)

114.5

Total length of pump L1 (mm)

218

Neck diameter D2 (mm)

127

Type of shaft

type D

Distance from flange to end L2 (mm)

46

Diameter of shaft D3 (mm)

24.9

Number of splines

15

Direction of rotation

clockwise

Position of suction port 1st element, only for pump type T POS-CO1

side

Type of connections suction port1st element, only for pump type T TY-COa

type C

Thread type of connections suction 1st element

M12

Center distance between mounting holes C-CO1a (mm)

36

Center distance between mounting holes C-CO2a (mm)

70

Flow control valve present

YES

Biggest Thread type valve TA3

3/4 BSP

Second Thread type valve TA4

3/8 BSP

Material of the housing

metal

Вес (кг): 22
