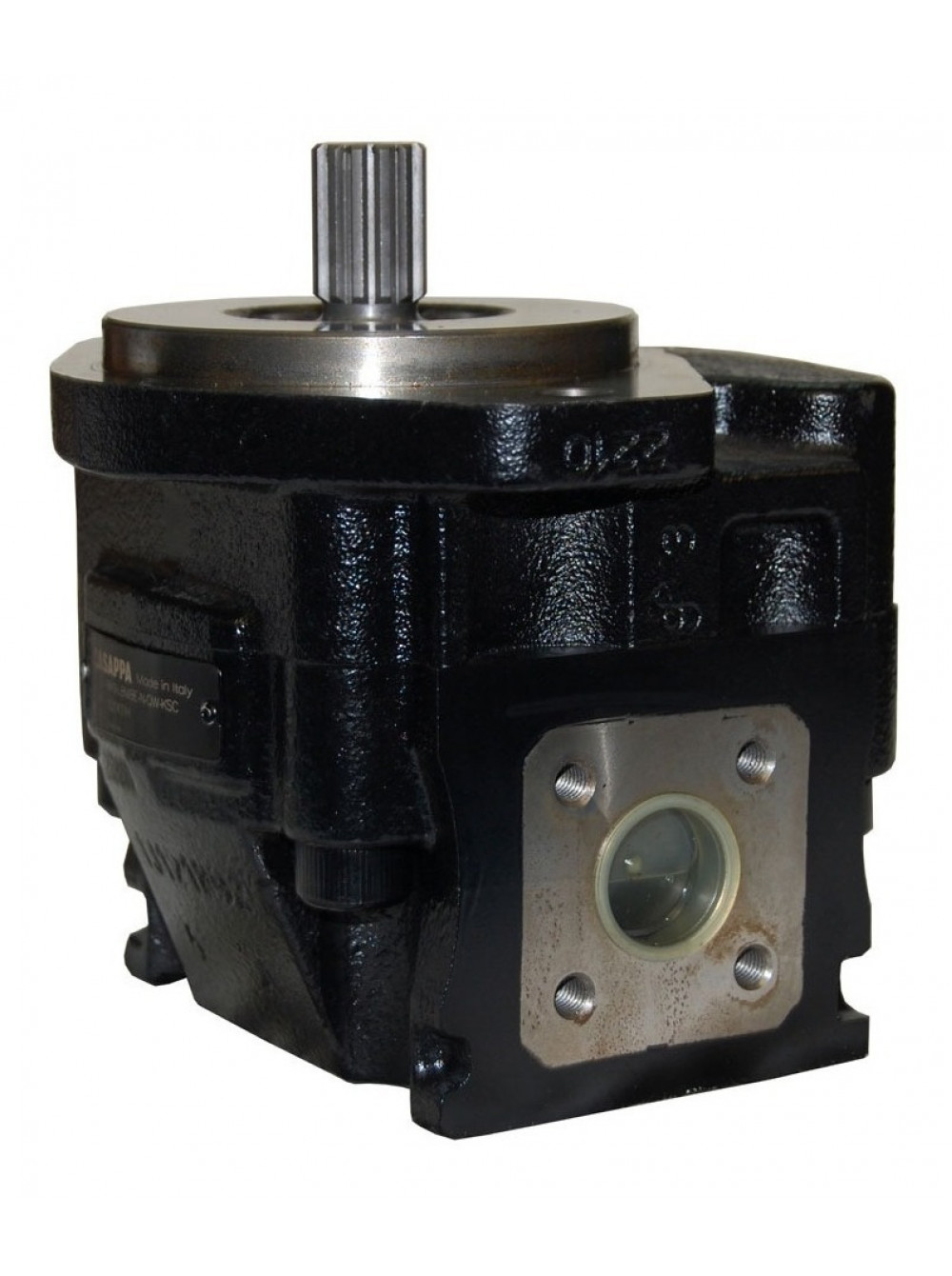

Гидронасос Casappa 0357014E

Гидронасос Casappa 0357014E

Bobcat 5100620055

KP30.29D0-A8K9-LBM/BE-N-QW-KSC-ANF-TRX

0687300R

Type of pump

gearpump

Number of elements

1

Type of flange

type A

Diameter of flange mounting holes D1 (mm)

14.3

Center distance of mounting holes C1 (mm)

146

Total length of pump L1 (mm)

162.5

Neck diameter D2 (mm)

101.6

Type of shaft

type D

Distance from flange to end L2 (mm)

41.1

Diameter of shaft D3 (mm)

21.7

Number of splines

13

Direction of rotation

clockwise

Position of suction port 1st element, only for pump type T POS-CO1

side

Type of connections suction port1st element, only for pump type T TY-COa

type A

Thread type of connections suction 1st element

M8

Center distance between mounting holes C-CO1a (mm)

55

Position of pressure 1st element, only for pump type T POS-CO2

side

Type of connections pressure 1st element, only for pump type T TY-COb

type A

Thread type of connection pressure port 1st element TA-COb

M6

Center distance between mounting holes C-CO1b (mm)

40

Flow control valve present

NO

Material of the housing

metal

Торговая марка: CASAPPA

Вес (кг): 14,26
