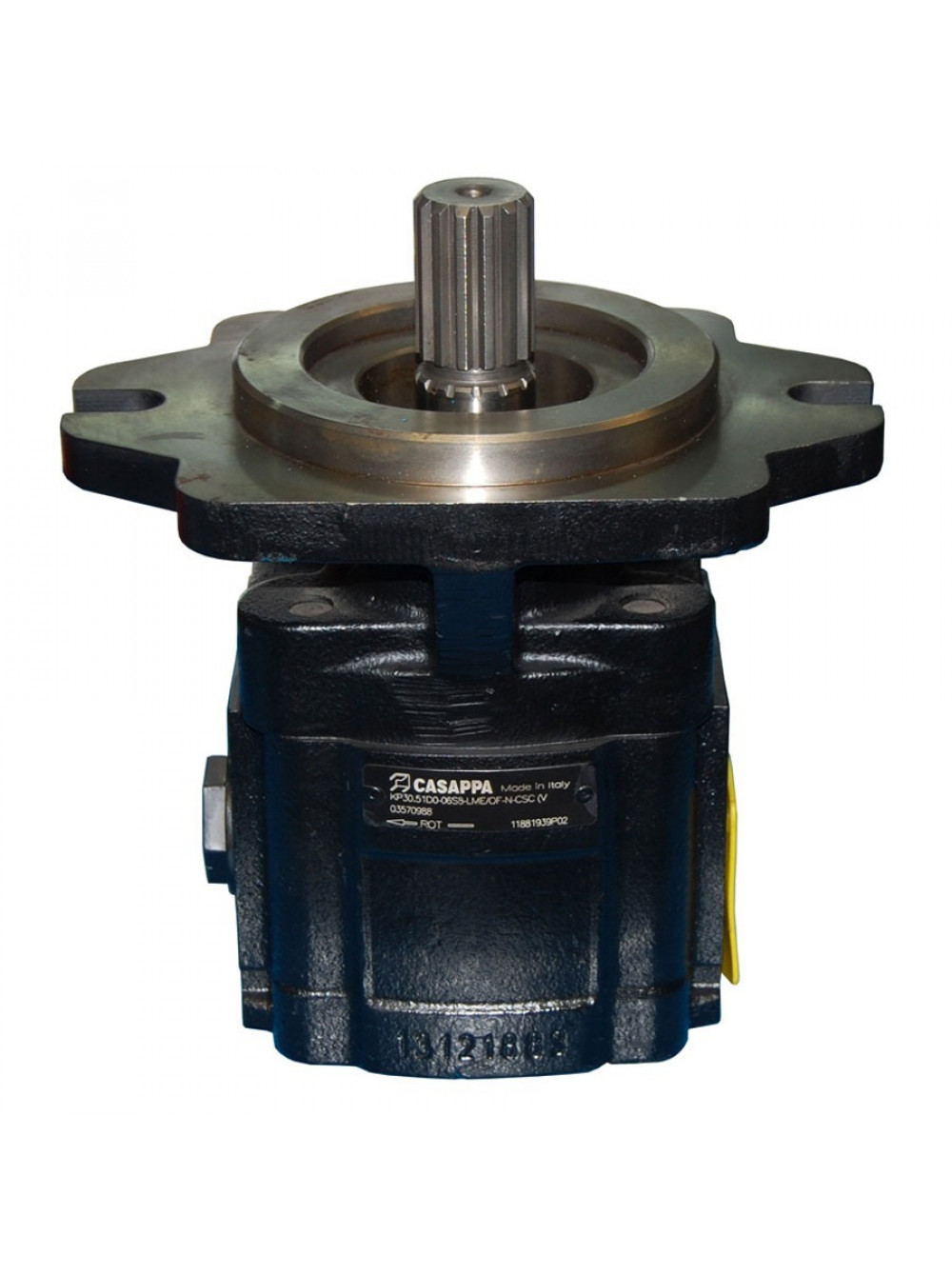

Гидронасос Casappa 03570988

Гидронасос Casappa 03570988

VOE11895031

11895031

KP30.51-D0-06S8-LME/OF-N-CSC

KP3051D006S8LMEOFNCSC

0357007R

11881939

VOE11881939

Type of pump

gearpump

Number of elements

1

Type of flange

type B

Center distance of mounting holes C1 (mm)

181

Total length of pump L1 (mm)

238

Neck diameter D2 (mm)

127

Type of shaft

type D

Distance from flange to end L2 (mm)

56.3

Diameter of shaft D3 (mm)

31.2

Number of splines

14

Direction of rotation

clockwise

Position of suction port 1st element, only for pump type T POS-CO1

side

Type of connections suction port1st element, only for pump type T TY-COa

type C

Thread type of connections suction 1st element

M12

Center distance between mounting holes C-CO1a (mm)

35.7

Center distance between mounting holes C-CO2a (mm)

69.8

Position of pressure 1st element, only for pump type T POS-CO2

side

Type of connections pressure 1st element, only for pump type T TY-COb

type E

Thread type pressure side of 1st element TA-Pb

1 5/16 UNF

Material of the housing

metal

Вес (кг): 20,54
