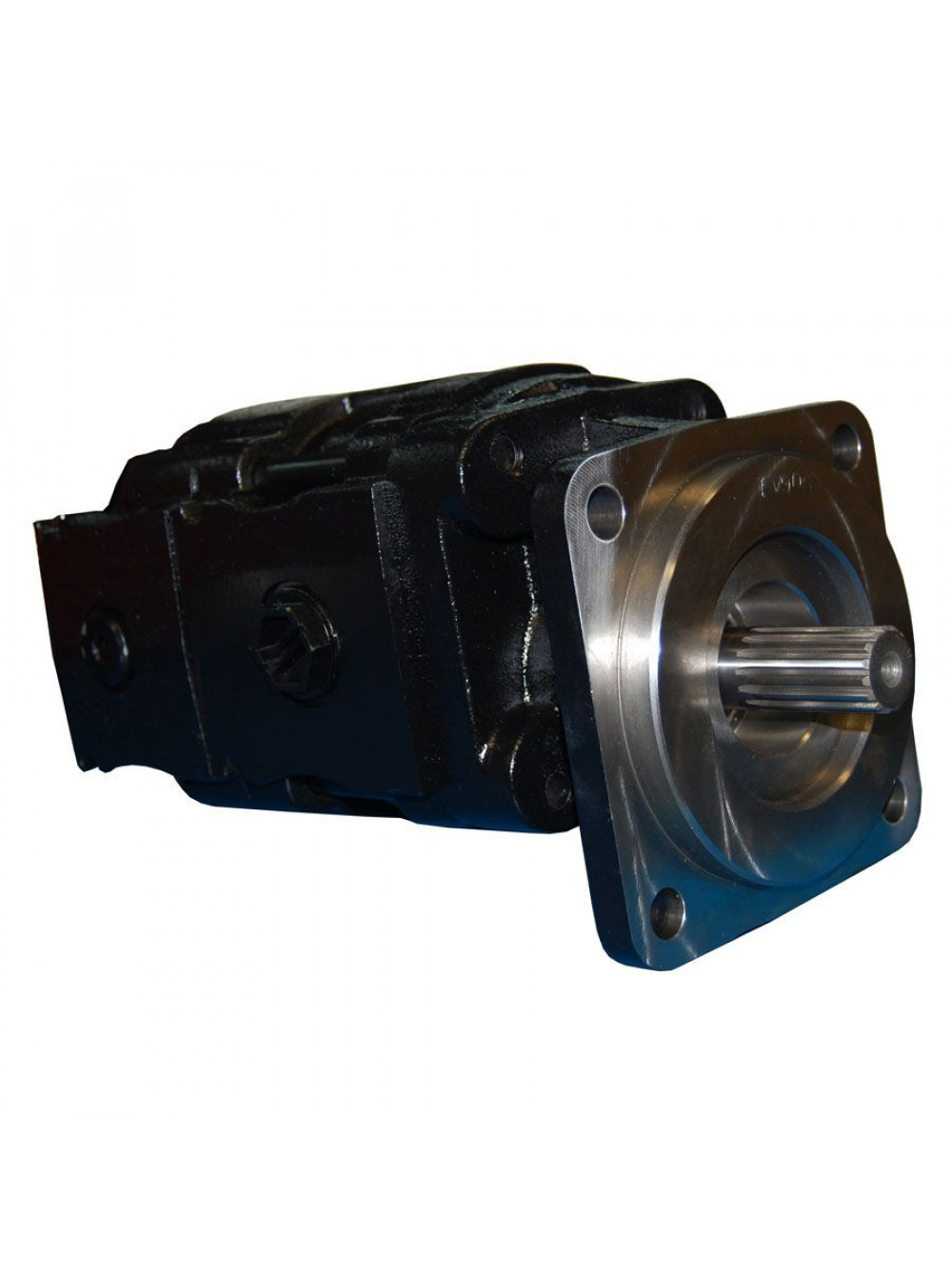

Гидронасос Casappa 79933054

Гидронасос Casappa 79933054

84123670
Ремкомплект 85813244
85818997
0000026148

Type of pump

gearpump

Number of elements

2

Type of flange

type G

Diameter of flange mounting holes D1 (mm)

14.3

Center distance of mounting holes C1 (mm)

114

Total length of pump L1 (mm)

386

Neck diameter D2 (mm)

127

Type of shaft

type D

Distance from flange to end L2 (mm)

44

Diameter of shaft D3 (mm)

24.8

Number of splines

15

Direction of rotation

clockwise

Position of suction port 1st element, only for pump type T POS-CO1

side

Type of connections suction port1st element, only for pump type T TY-COa

type C

Thread type of connections suction 1st element

M12

Center distance between mounting holes C-CO1a (mm)

42.6

Center distance between mounting holes C-CO2a (mm)

77.8

Position of pressure 1st element, only for pump type T POS-CO2

side

Type of connections pressure 1st element, only for pump type T TY-COb

type E

Thread type pressure side of 1st element TA-Pb

M26

Flow control valve present

YES

Biggest Thread type valve TA3

M22

Second Thread type valve TA4

M22

Material of the housing

metal

Вес (кг): 33

New Holland B95

New Holland LB90
Fiatallis FB80
New Holland B95B
New Holland B110
