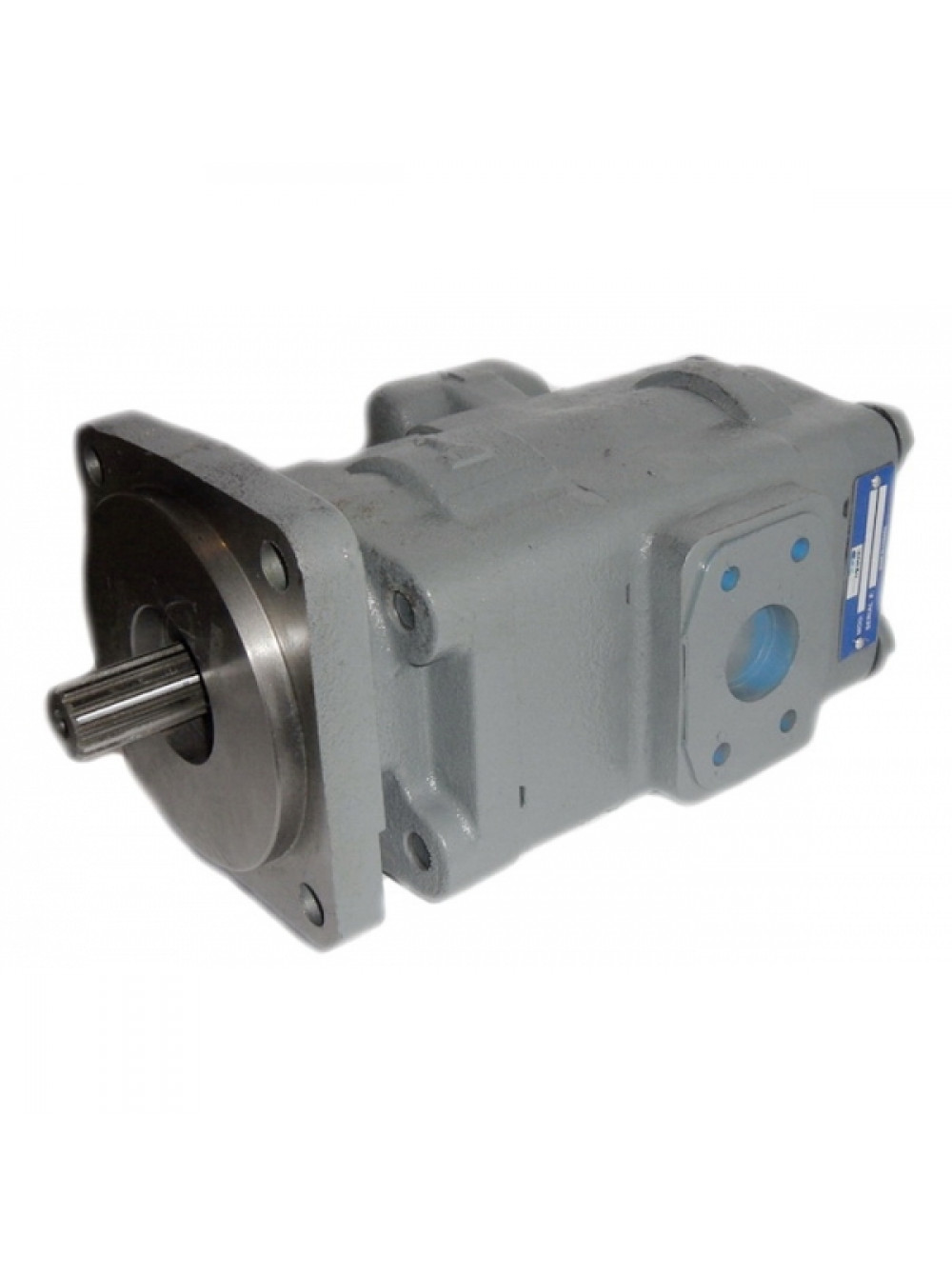

Гидронасос Commercial Hydraulics 3249120108

Гидронасос COMMERCIAL HYDRAULICS 3249120108

Parker 324-9120-108

P330B278BIAB1598

M-D140801

D140801

CASE 580K

Type of pump

gearpump

Number of elements

2

Type of flange

type G

Diameter of flange mounting holes D1 (mm)

14.5

Center distance of mounting holes C1 (mm)

114.5

Total length of pump L1 (mm)

350

Neck diameter D2 (mm)

127

Type of shaft

type D

Distance from flange to end L2 (mm)

46

Diameter of shaft D3 (mm)

25

Number of splines

15

Direction of rotation

counter clockwise

Position of suction port 1st element, only for pump type T POS-CO1

side

Type of connections suction port1st element, only for pump type T TY-COa

type C

Thread type of connections suction 1st element

1/2 UNC

Center distance between mounting holes C-CO1a (mm)

35

Center distance between mounting holes C-CO2a (mm)

70

Position of pressure 1st element, only for pump type T POS-CO2

side

Type of connections pressure 1st element, only for pump type T TY-COb

type E

Thread type pressure side of 1st element TA-Pb

1 5/16 UN

Position of pressure port 2nd element, only for pump type T POS-CO4

side

Type of connections pressure port 2nd element, only for pump type T TY-COd

type E

Thread type pressure side of 2nd element TA-Pd

1 1/16 UN

Flow control valve present

NO

Material of the housing

metal

Вес (кг): 29,3
