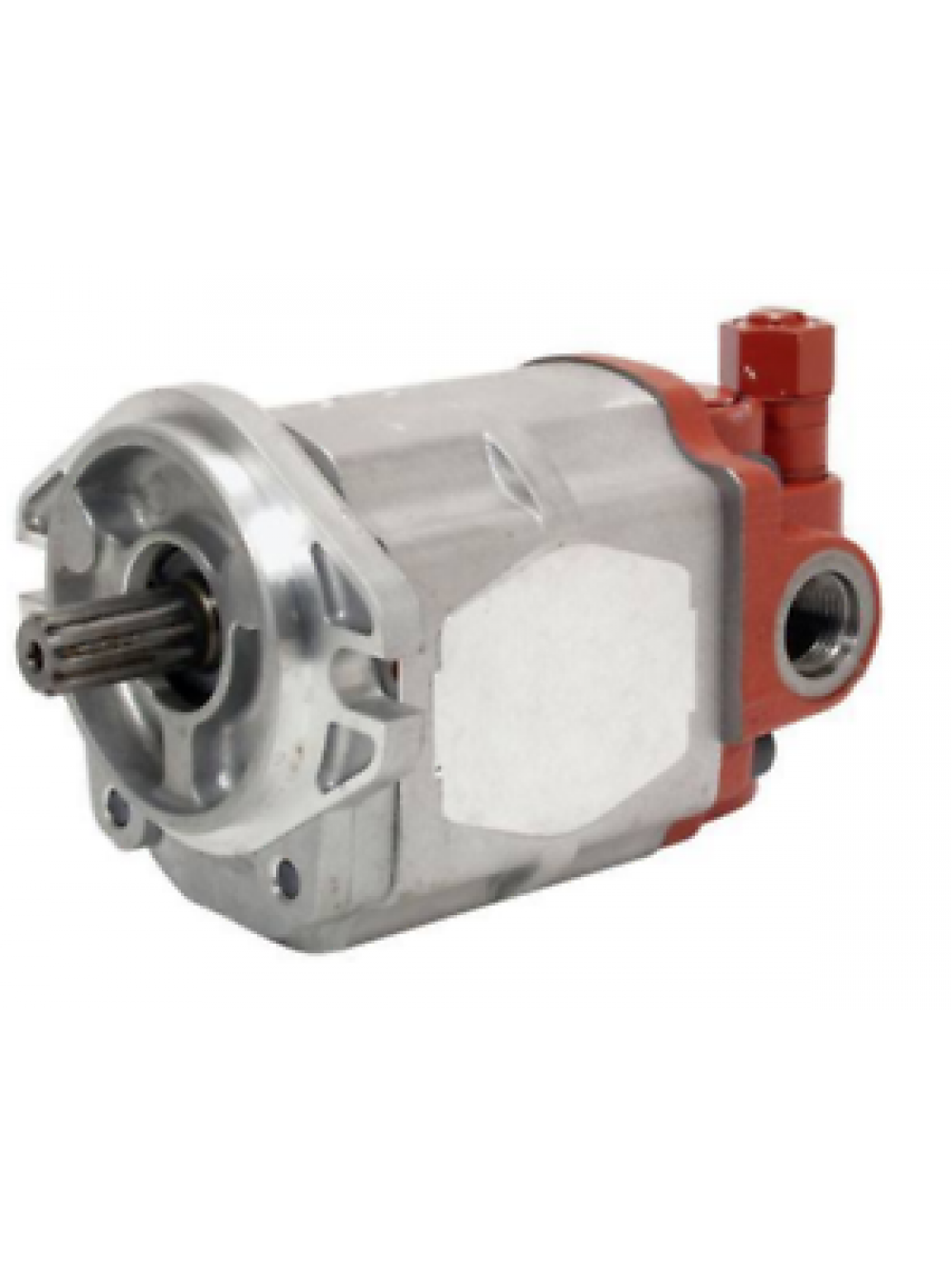

Гидронасос Hyster 1324538

Гидронасос HYSTER 1324538

HY1324538

KRP4-27CVLN KRP427CVLN

20800-78550 2080078550

KRP4-27CVL KRP427CVL

1458798 HY1458798

Type of pump

gearpump

Number of elements

1

Type of flange

type B

Center distance of mounting holes C1 (mm)

106.3

Total length of pump L1 (mm)

220

Neck diameter D2 (mm)

82.5

Type of shaft

type D

Distance from flange to end L2 (mm)

35

Diameter of shaft D3 (mm)

16.7

Number of splines

10

Direction of rotation

clockwise

Position of suction port 1st element, only for pump type T POS-CO1

side

Type of connections suction port1st element, only for pump type T TY-COa

type D

Thread type of connections suction 1st element

M10

Center distance between mounting holes C-CO1a (mm)

52.4

Center distance between mounting holes C-CO2a (mm)

26.2

Flow control valve present

YES

Biggest Thread type valve TA3

7/8 UNF

Second Thread type valve TA4

3/4 UNF

Material of the housing

aluminium

Торговая марка: KAYABA-INDUSTRY

Вес (кг): 5,38
