Гидронасос Komatsu 705-11-38010
111.00 ₽
Описание

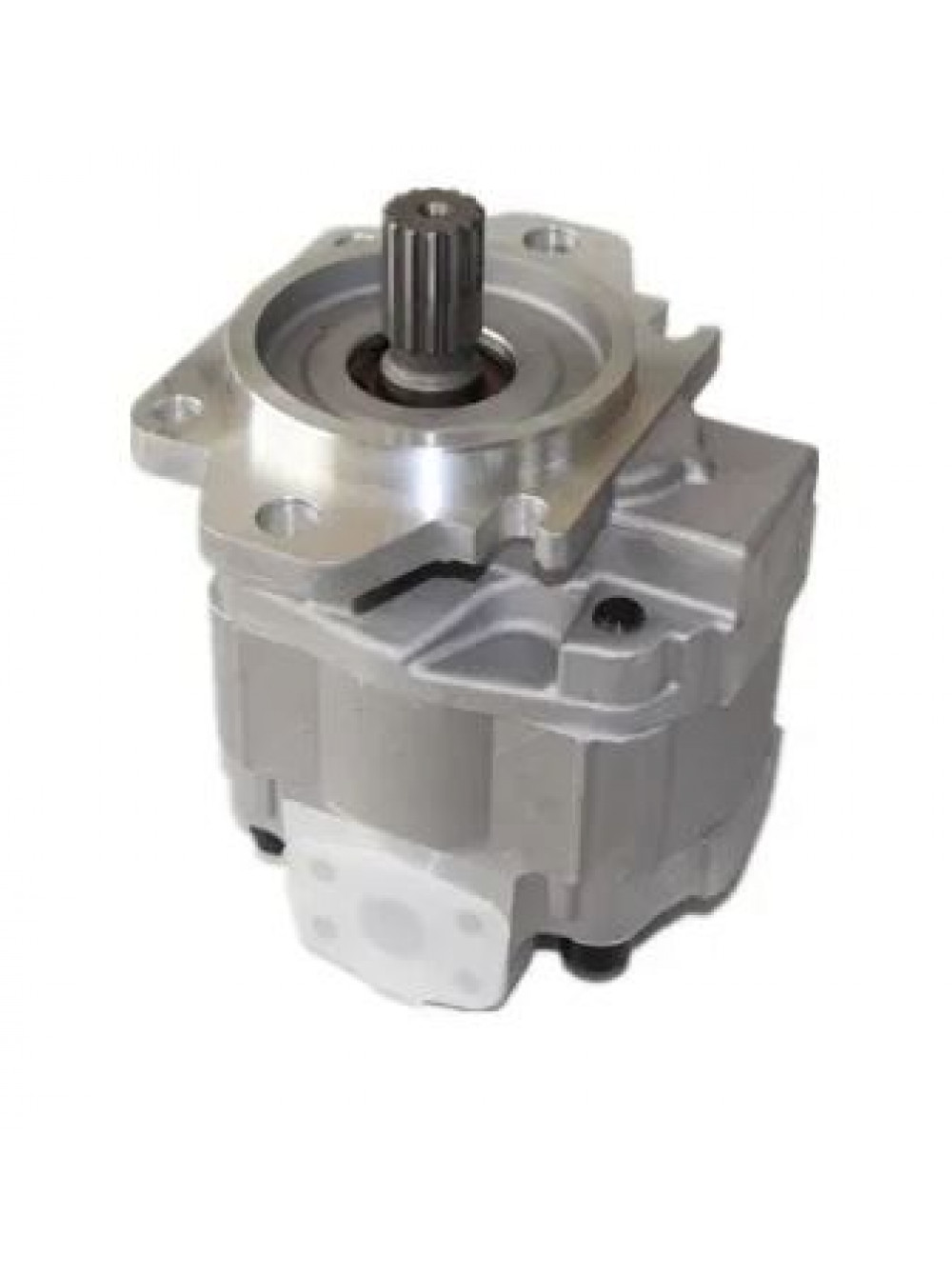

Гидронасос KOMATSU 705-11-38010
7051138010
KOMATSU D70LE D85ESS D60P-12 D65P-12 D85ESS-2
| Type of pump | gearpump |
|---|---|
| Number of elements | 1 |
| Type of flange | type M |
| Diameter of flange mounting holes D1 (mm) | 18 |
| Center distance of mounting holes C1 (mm) | 181 |
| Center distance of mounting holes C2 (mm) | 114.5 |
| Total length of pump L1 (mm) | 257 |
| Neck diameter D2 (mm) | 127 |
| Type of shaft | type D |
| Distance from flange to end L2 (mm) | 56 |
| Diameter of shaft D3 (mm) | 31 |
| Number of splines | 14 |
| Direction of rotation | counter clockwise |
| Position of suction port 1st element, only for pump type T POS-CO1 | side |
| Type of connections suction port1st element, only for pump type T TY-COa | type C |
| Thread type of connections suction 1st element | M12 |
| Center distance between mounting holes C-CO1a (mm) | 42.9 |
| Center distance between mounting holes C-CO2a (mm) | 77.8 |
| Position of pressure 1st element, only for pump type T POS-CO2 | side |
| Type of connections pressure 1st element, only for pump type T TY-COb | type C |
| Thread type of connection pressure port 1st element TA-COb | M10 |
| Center distance between mounting holes C-CO1b (mm) | 26.2 |
| Center distance between mounting holes C-CO2b (mm) | 52.4 |
| Flow control valve present | NO |
